    Car Wheel Alignment Machine (SM-V2+)

    Global vehicle's original database: Owning more than 25,000 original vehicledatabase from different region around the world.

    Data preview:Front , rear wheel's measurement resultcan be displayed in oneinterface.

    Consultar
    Parámetros del producto
    Descripción del producto
    Detalles del producto
    Fotos reales del producto

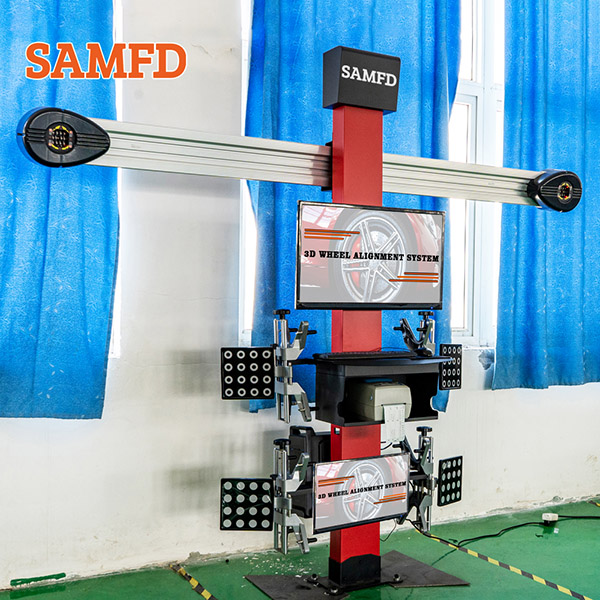

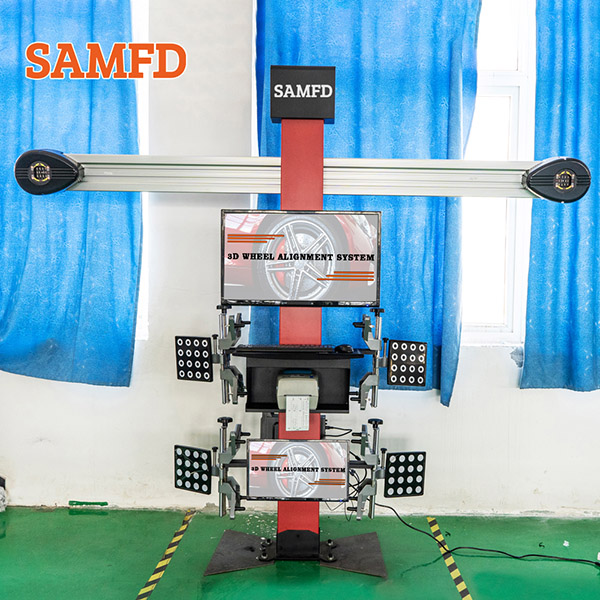

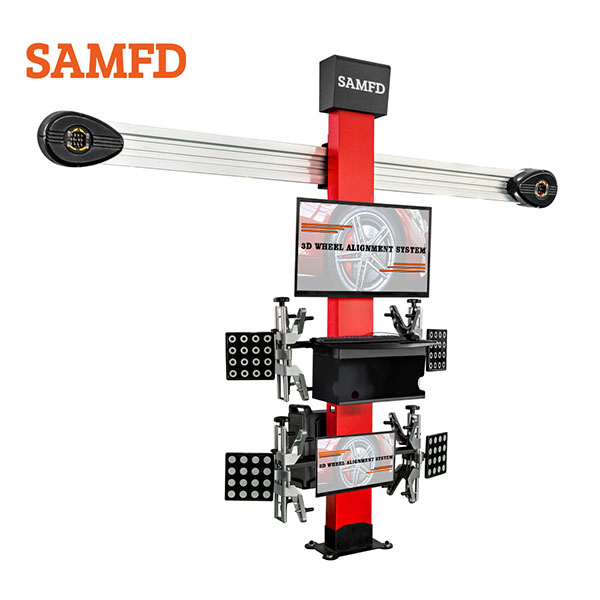

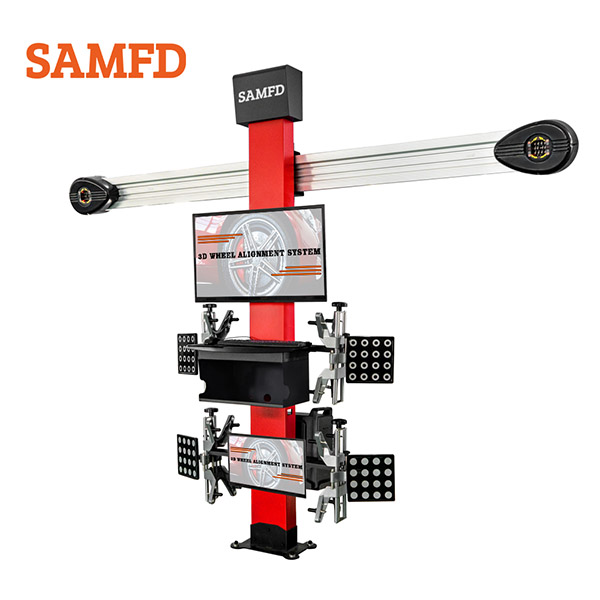

    Car Wheel Alignment Machine (SM-V2+)
    Sunmo Mobile Automatic Computerized Manual Four Positioning Automotive Aligner Equipment 3d Full Set Wheel Alignment Machine

    Parámetros del producto

    PROJECT SM-V2+
    Measurement Items Measurement Accuracy Measuring Range
    Total Toe +0.01° +40°
    Externa Bevel +0.01° ±45°
    Caster +0.02° ±45°
    S.A.I +0.02° ±45°
    Thrust Angle +0.01° ±40°
    Set Back +0.01° ±40°
    Max.Steering Angle +0.02° ±50°
    Wheel Track +2mm 1219-2438mm
    Wheelbase +2mm 2006-4572mm

    * Note: Technical parameters updated & adjusted as to market demand without prior notice

    Descripción del producto

    1. Global vehicle's original database: Owning more than 25,000 original vehicledatabase from different region around the world.

    2. Data preview:Front , rear wheel's measurement resultcan be displayed in oneinterface.

    3. Assistant 3D animationfor adjusting.

    4. Alignment history : quick search for vehicle registration number and customer.

    5. Special function detection & accident vehicle measurement system.

    6. New material panel,which can reduce the interference of external light,make sure the data more accurate more stable.

    7. Video speed camera technology for afaster and more responsive alignment system.

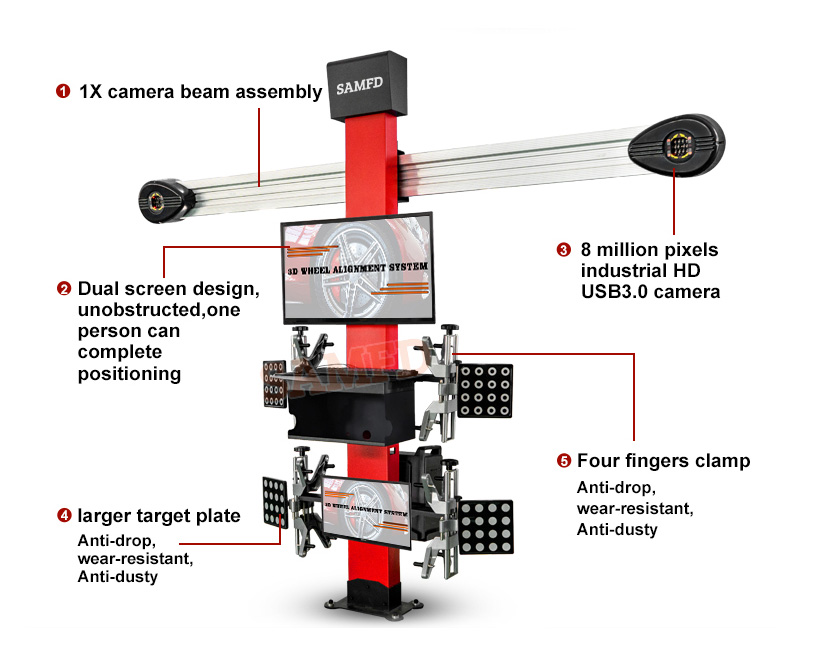

    Detalles del producto

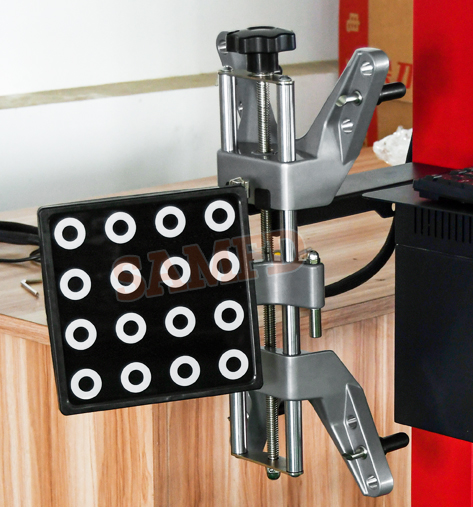

    DROP RESISTANT TARGET* 4

    DROP RESISTANT TARGET* 4

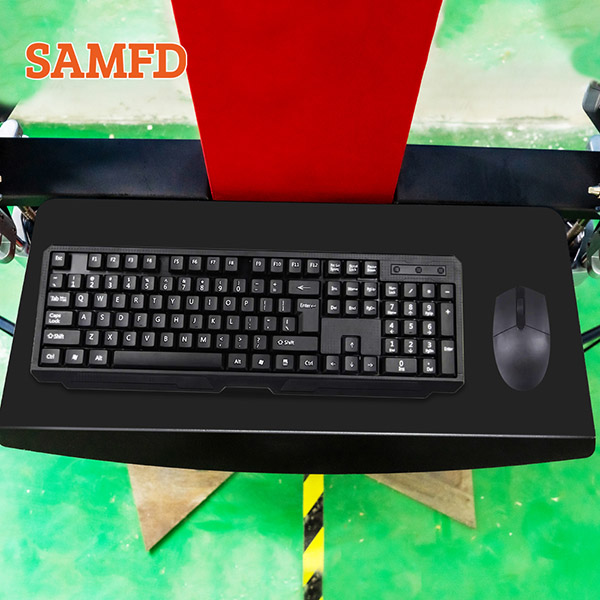

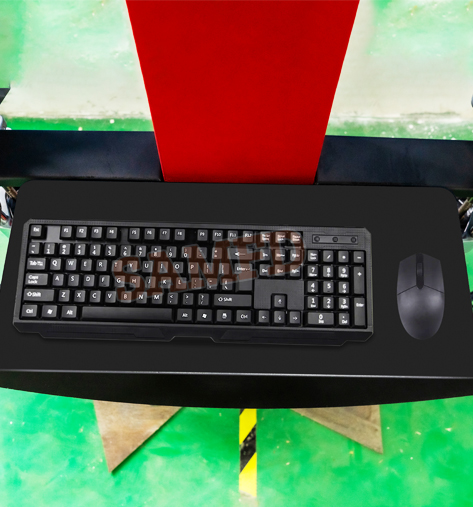

    KEYBOARDMOUSE

    KEYBOARDMOUSE

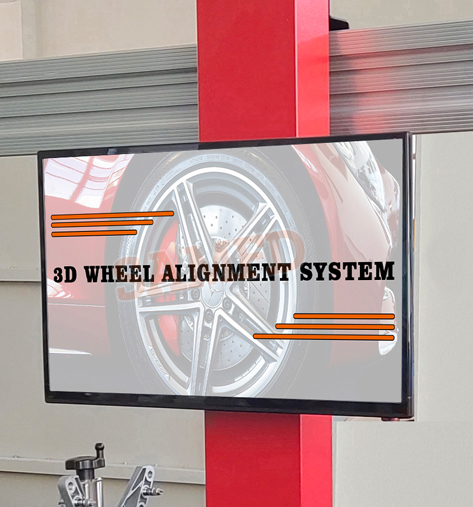

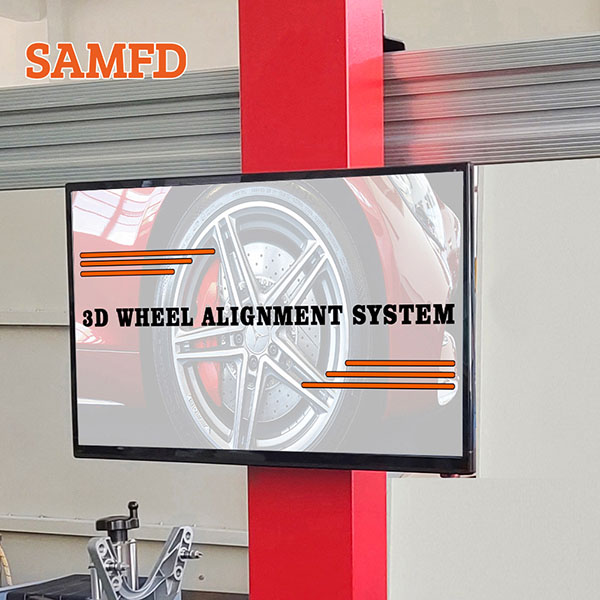

    32" INCH HIGH DEFINITION DISPLAY

    32" INCH HIGH DEFINITION DISPLAY

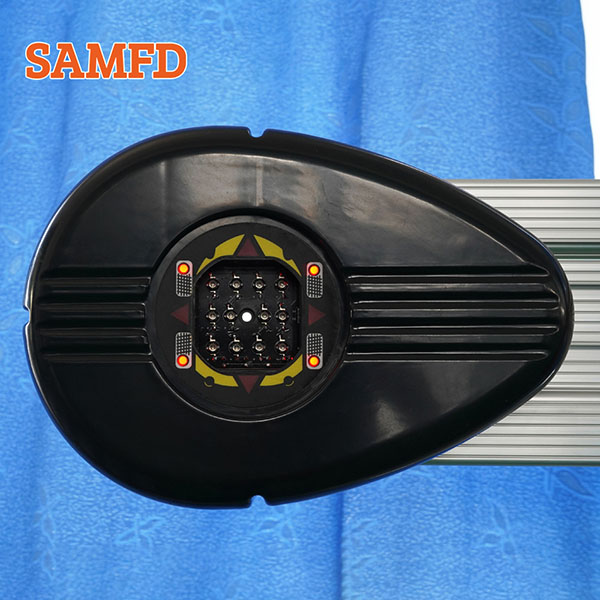

    8 MEGA-PIXELHD CAMERAS*2

    8 MEGA-PIXELHD CAMERAS*2

    STEERING WHEEL HOLDER

    STEERING WHEEL HOLDER

    Adjustable handleThe fixing frame is carefullywrapped and does not damagethe steering wheel

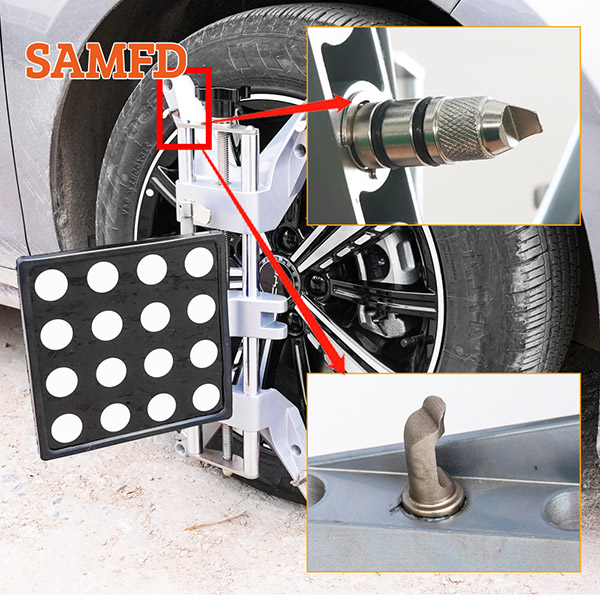

    LIGHTWEIGHT ALUMINUM ALLOY FIXTURE

    LIGHTWEIGHT ALUMINUM ALLOY FIXTURE

    Lightweight and labor-saving, with wide size and wide applicability . The fixture is suitable for 11-25 inch tires

    BIGGER TARGET PLATE

    BIGGER TARGET PLATE

    Anti strong light and high reflectionmaterial, precise feedback signal,anti drop, wear-resistant, antidust, and more durable.

    Fotos reales del producto

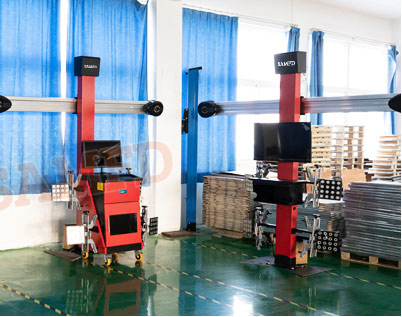

    SM-V2-6

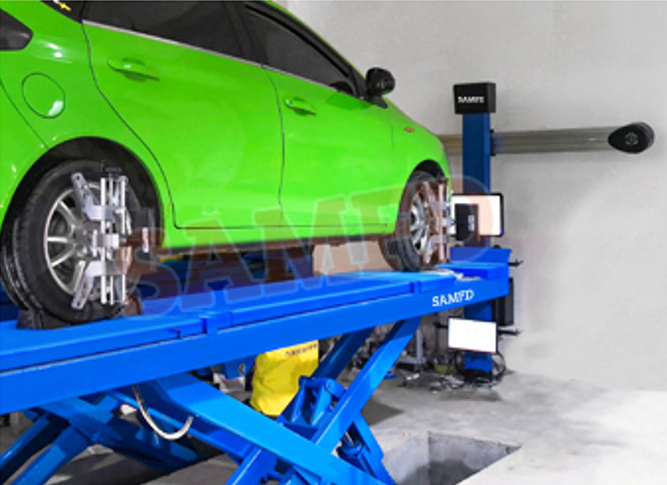

    SM-V2+-5

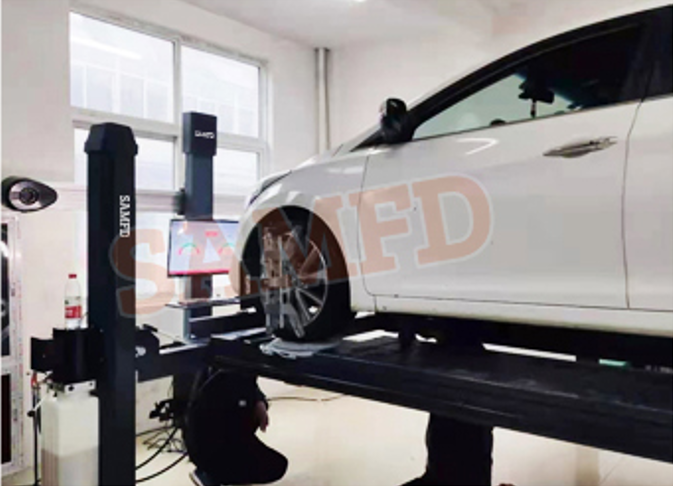

    SM-V2+-4

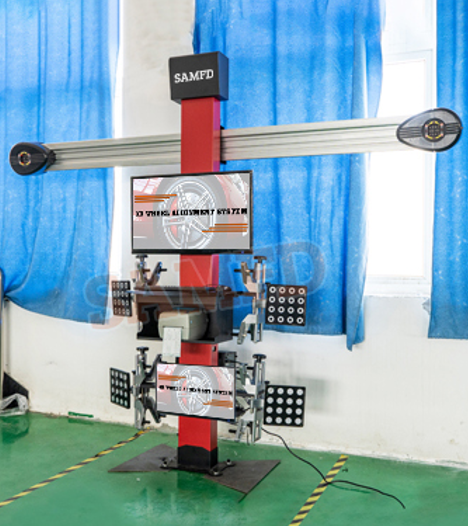

    SM-V2+-3

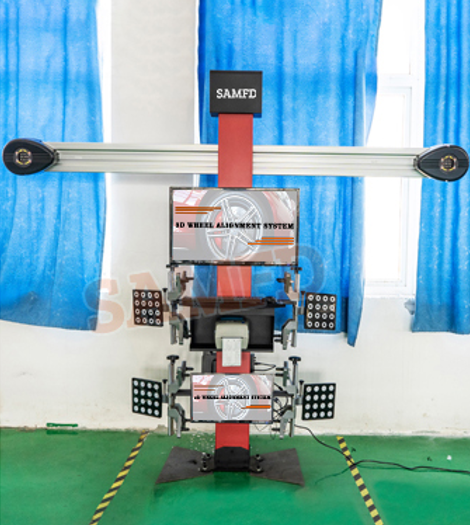

    SM-V2+-2

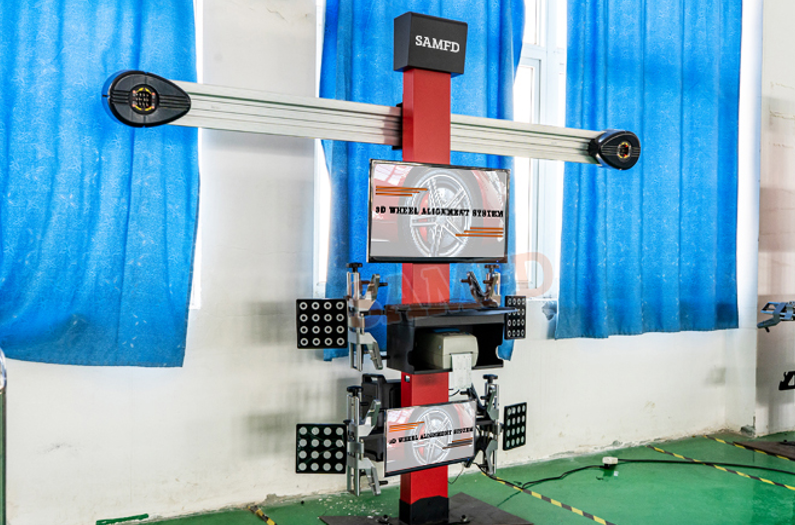

    SM-V2+-1
    SM-V2-8
    SM-V2-7
