    Car Wheel Alignment Machine (SM-V3)

     Windows 7 System,operation process can be easily guided by"Next step"instruction.

    Exceed 20,000 data base around the world and with a life time update service.

    Consultar
    Parámetros del producto
    Descripción del producto
    Detalles del producto
    Fotos reales del producto

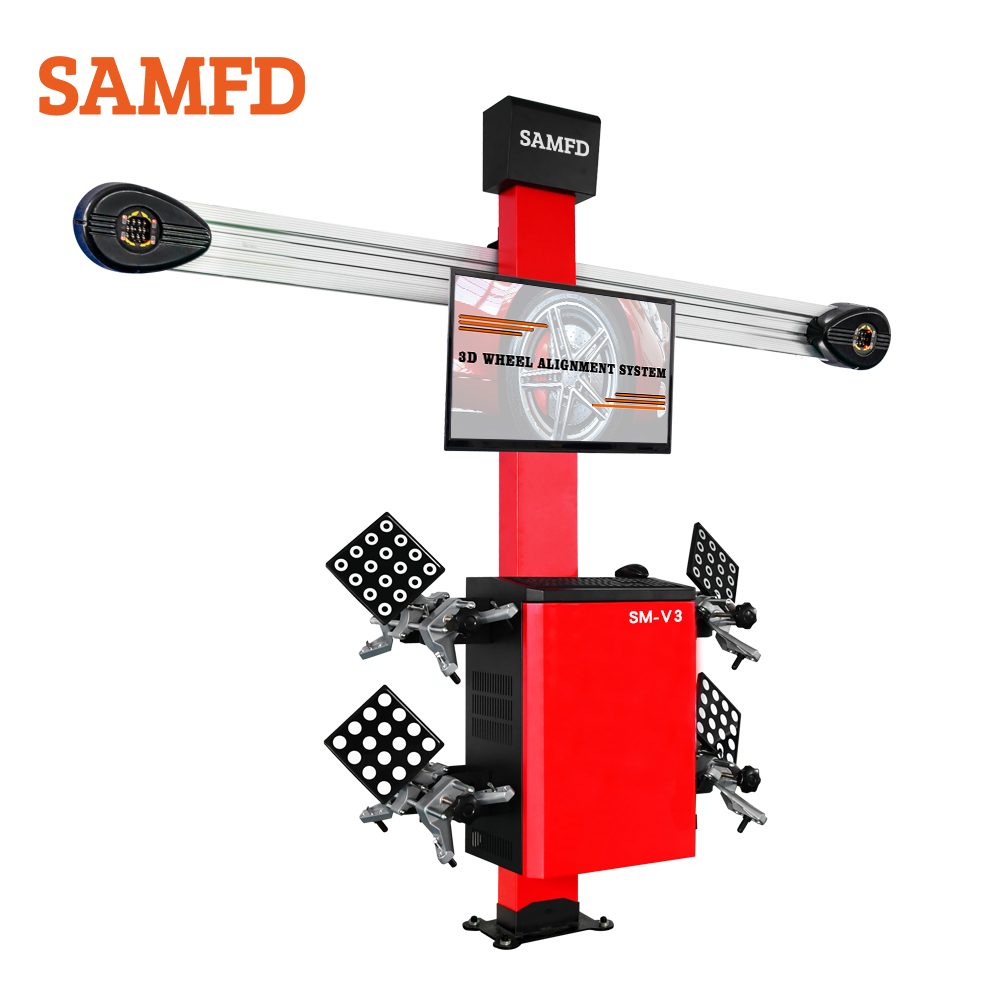

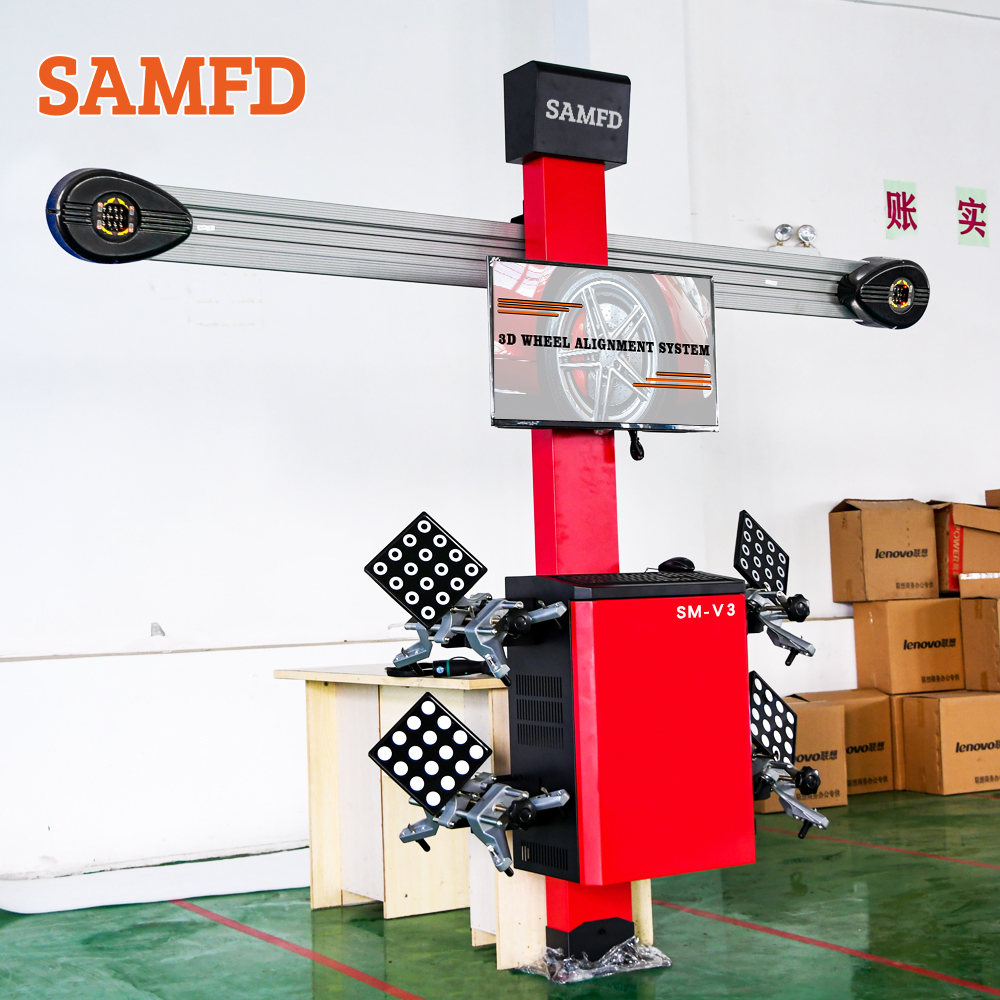

    Car Wheel Alignment Machine (SM-V3)
    Sunmo high quality cheap digital spare parts system stand laser wheel alignment machine

    Parámetros del producto

    PROJECT SM-V3
    Measurement Items Measurement Accuracy Measuring Range
    Total Toe +0.01° +40°
    Externa Bevel +0.01° ±45°
    Caster +0.02° ±45°
    S.A.I +0.02° ±45°
    Thrust Angle +0.01° ±40°
    Set Back +0.01° ±40°
    Max.Steering Angle +0.02° ±50°
    Wheel Track +2mm 1219-2438mm
    Wheelbase +2mm 2006-4572mm

    * Note: Technical parameters updated & adjusted as to market demand without prior notice

    Descripción del producto

    1. Windows 7 System,operation process can be easily guided by"Next step"instruction.

    2. Exceed 20,000 data base around the world and with a life time update service.

    3. Repeat measurement accuracy is ±0.01,which be a world's leading level.

    4. Measurement Angle:Toe,Camber,Caster,S.A.I,thrust angle,Setback angle,Max turning angle,Wheel tread, Wheel base,Wheel rolling redius.

    5. Fast installation,suitable for all rims between12''-23''. Double chuck,which can install both on iron and aluminum wheel hub.

    6. 5 million high definition camera:it can also assure accurate alignment measurement when target plates get smaller.Intelligent LED navigation system:the operator doesn't need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.

    7. We use a thickened cold rolled sheet to bending into the integrated post, so that the camera system will not be disturbed by vibration after installation.

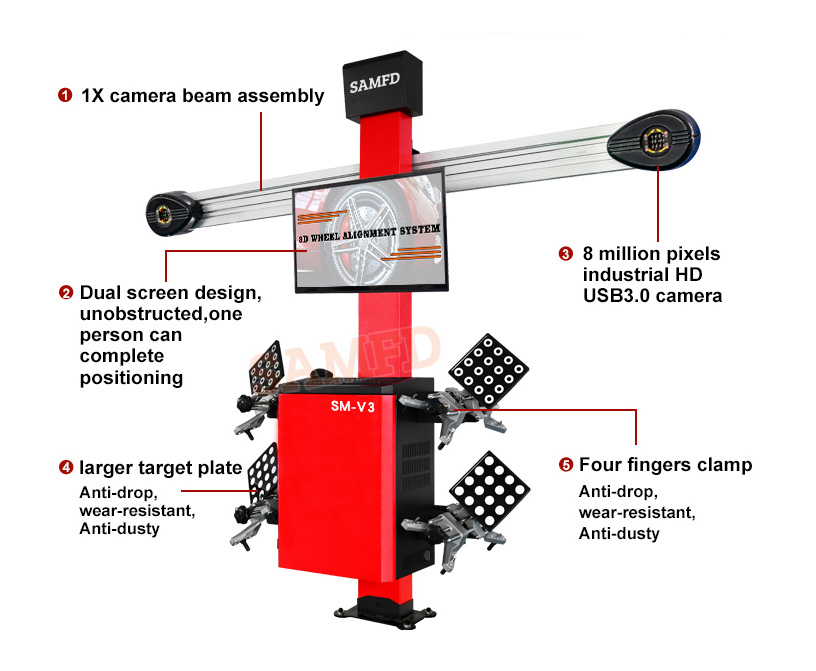

    Detalles del producto

    DROP RESISTANT TARGET* 4

    DROP RESISTANT TARGET* 4

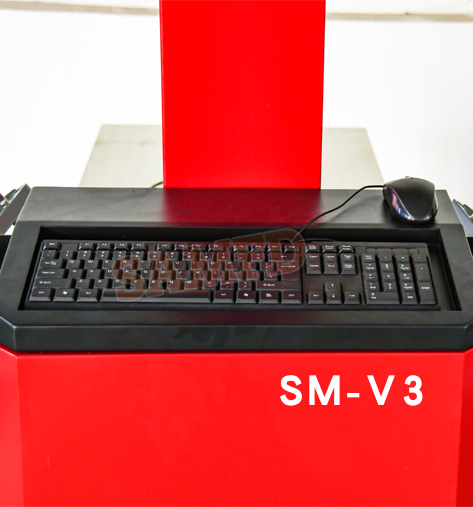

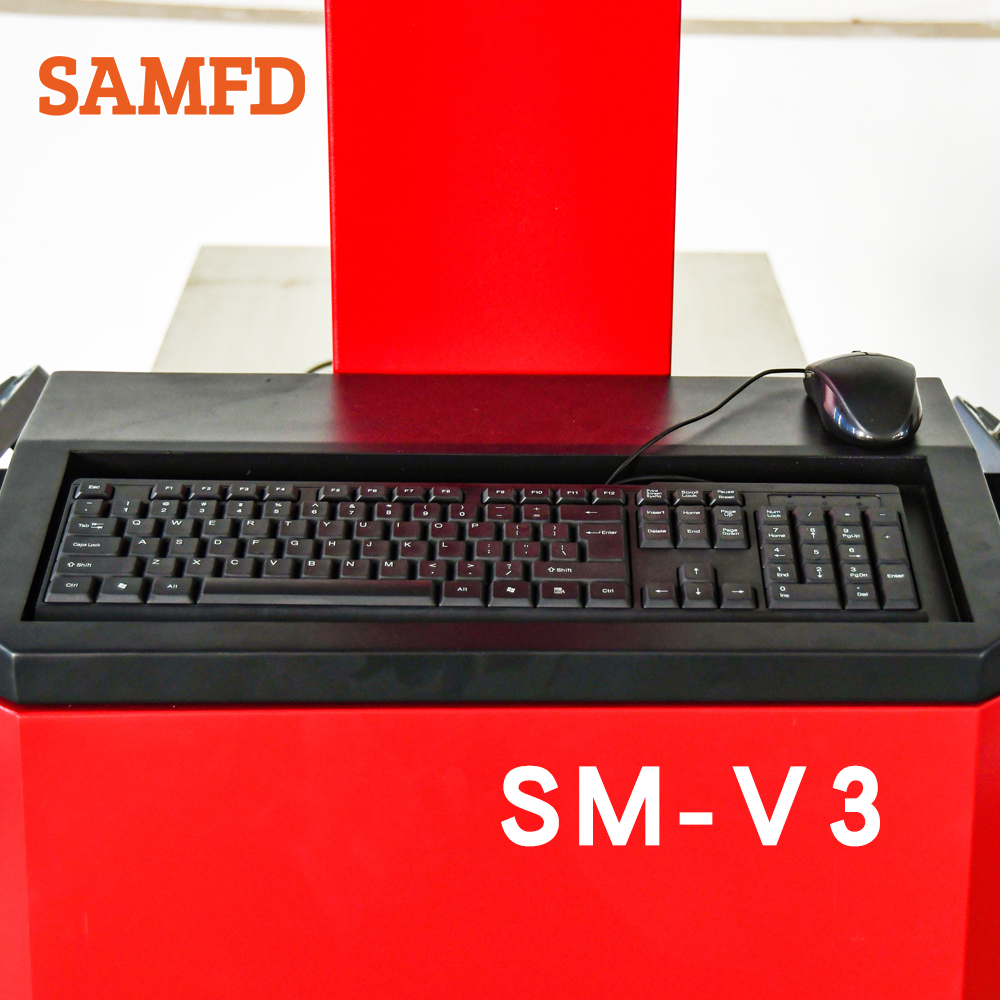

    KEYBOARDMOUSE v3

    KEYBOARDMOUSE v3

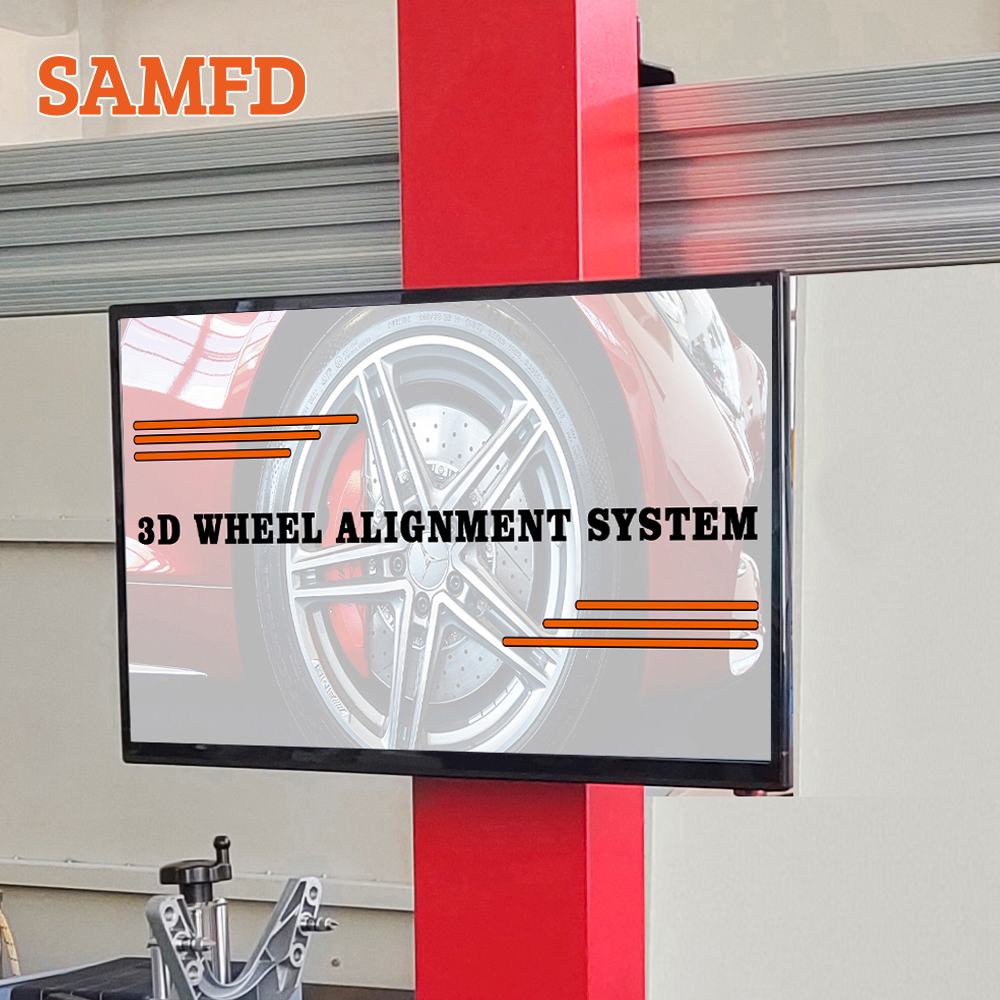

    32" INCH HIGH DEFINITION DISPLAY

    32" INCH HIGH DEFINITION DISPLAY

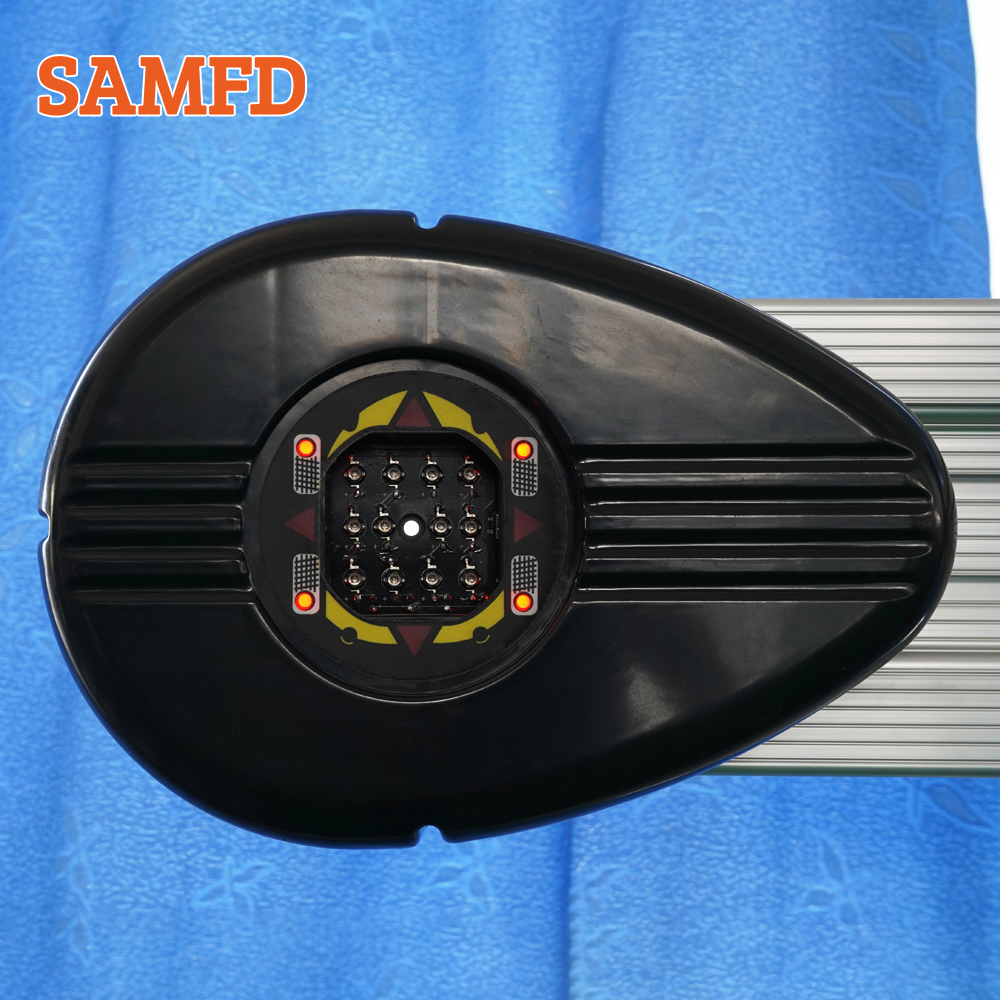

    8 MEGA-PIXELHD CAMERAS*2

    8 MEGA-PIXELHD CAMERAS*2

    STEERING WHEEL HOLDER

    STEERING WHEEL HOLDER

    Adjustable handleThe fixing frame is carefullywrapped and does not damagethe steering wheel

    LIGHTWEIGHT ALUMINUM ALLOY FIXTURE

    LIGHTWEIGHT ALUMINUM ALLOY FIXTURE

    Lightweight and labor-saving, with wide size and wide applicability . The fixture is suitable for 11-25 inch tires

    BIGGER TARGET PLATE

    BIGGER TARGET PLATE

    Anti strong light and high reflectionmaterial, precise feedback signal,anti drop, wear-resistant, antidust, and more durable.

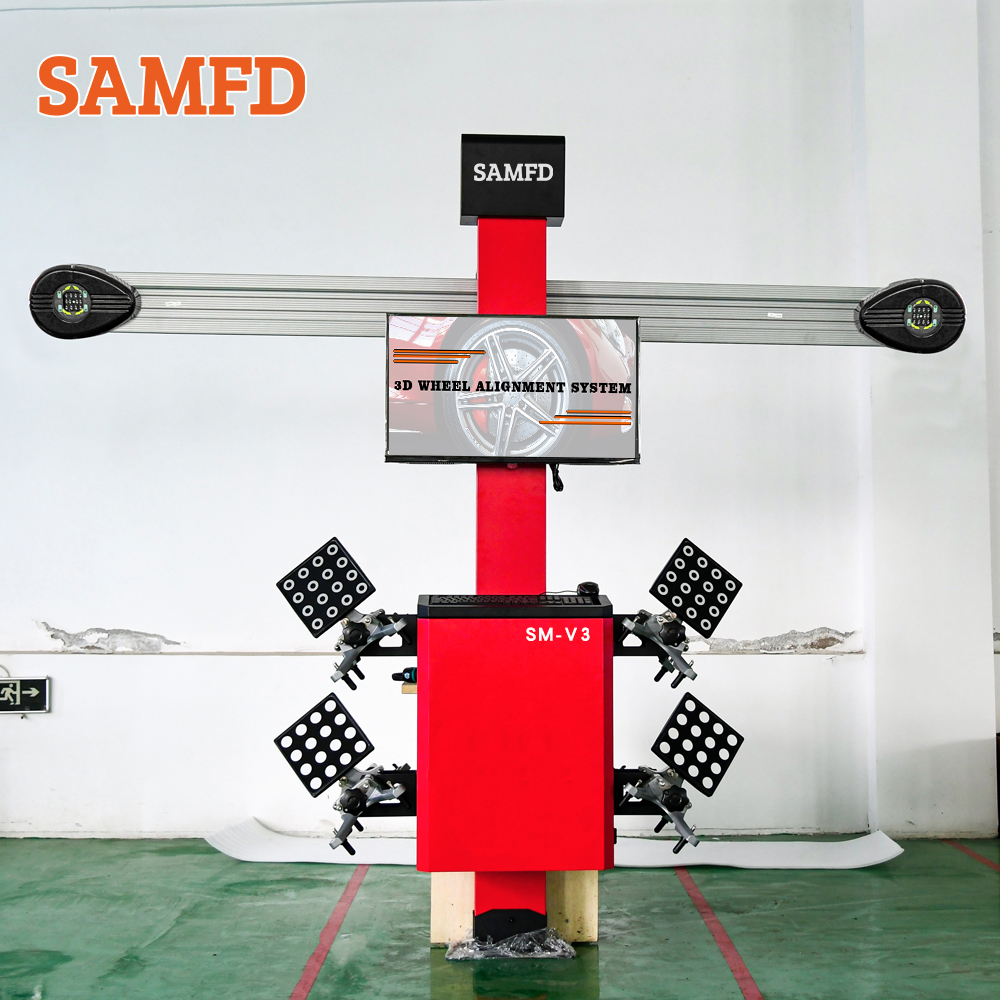

    Fotos reales del producto

    SM-V3-5
    SM-V3-4
    SM-V3-3

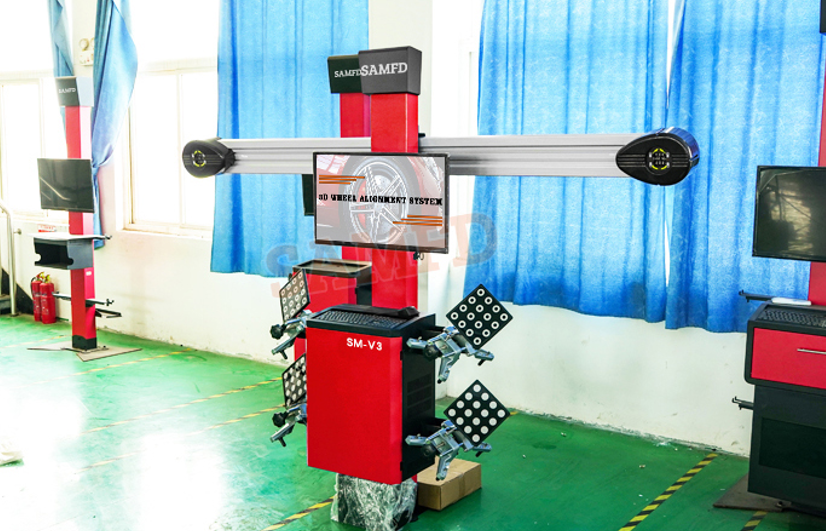

    SM-V3-1
