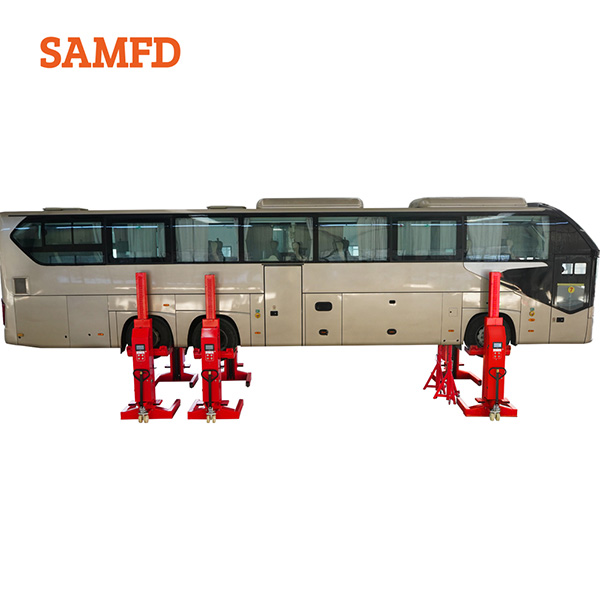

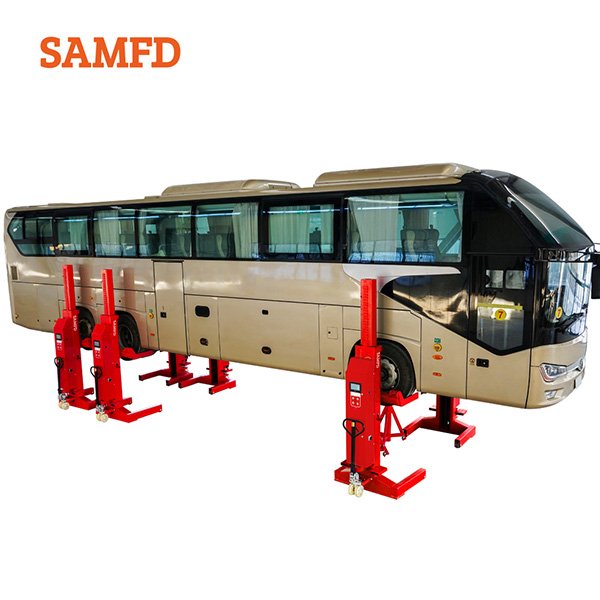

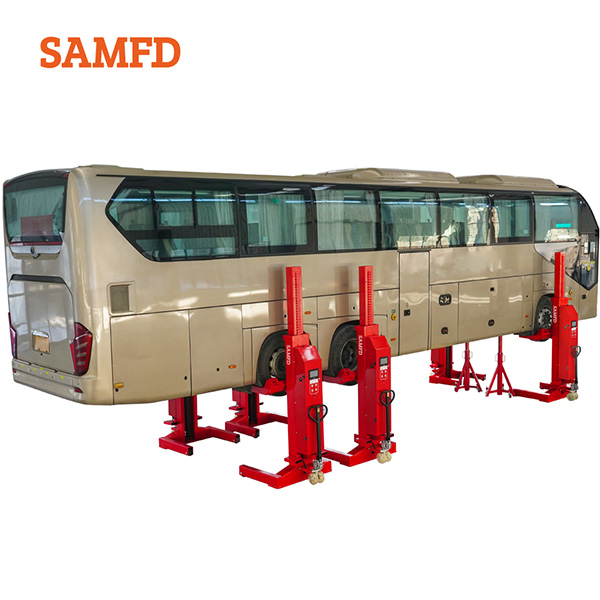

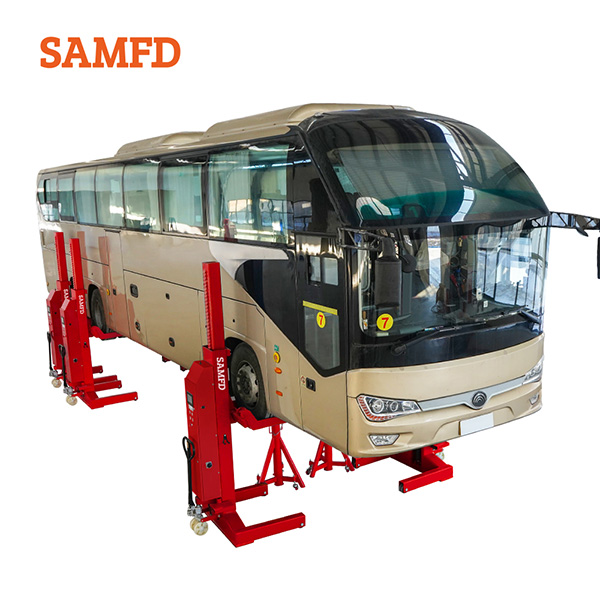

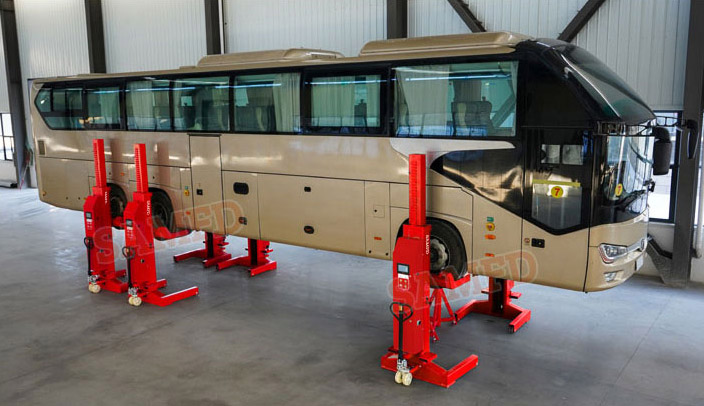

Wireless Mobile 6 Column Lift (SML-6W45)
The lifting unit can be combined into four or six pillars according to user needs;
Because the distance between the front and rear of the column can be moved and adjusted according to the length and width distance of the vehicle, it is suitable for more
vehicles;
- Whatsapp/Wechat/Teléfono: +86-18865587388
- Correo electrónico: info@samfdequipment.com
Parámetros del producto
| PROJECT | SML-6W45/6B45 |
| Lifting Weight | 45t (99000lbs) |
| Single Column Lifting Weight | 7.5t (16500lbs) |
| Lifting Height | 1750mm (68.90") |
| Operating Method | Touch Screen + Buttons |
| Cylinder Inner Diameter | 100mm (3.94") |
| Lifting Speed | 900mm/min |
| Drive Mode | Hydraulically Powered |
| Work Pressure | 16MPa |
| Voltage | 380V |
| Communication Mode | Dual Channel Radio Analog Communication |
| Sefety Construction | Mechanical Lock+Explosion-Proof Valve |
| Motor Power | 6*2.2kW |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Descripción del producto
1. The lifting unit can be combined into four or six pillars according to user needs;
2. Because the distance between the front and rear of the column can be moved and adjusted according to the length and width distance of the vehicle, it is suitable for more vehicles;
3. The lifting bracket adopts built-in guidance, and each column adopts a Separate hydraulic mobile car. One person can easily move the lifting machine to the desired position, with flexible and light-weight operation;
4. The power supply voltage of the equipment is 110V/220V/380V(Free customization)with phase sequence protection and phase loss protection, ensuring safe and reliable use;
5. Cross beam passenger/cargo type for easy maintenance and tire replacement etc., Optional safety assistance support is also available.
6. User-defined settings, such as language selection, security warnings, regular maintenance ;
7. Suitable for lifting and maintenance of bus, trucks and Specialized vehicles under 30 tons Heavy duty lifting capacity.

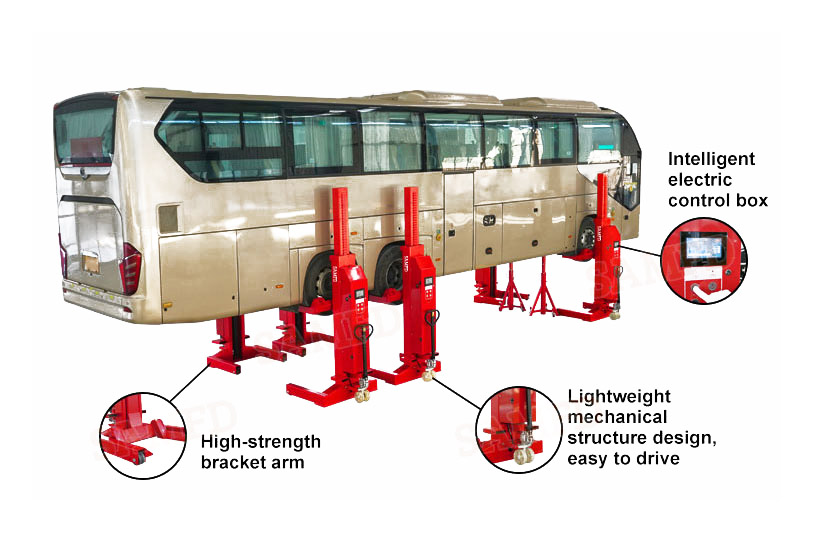

Detalles del producto

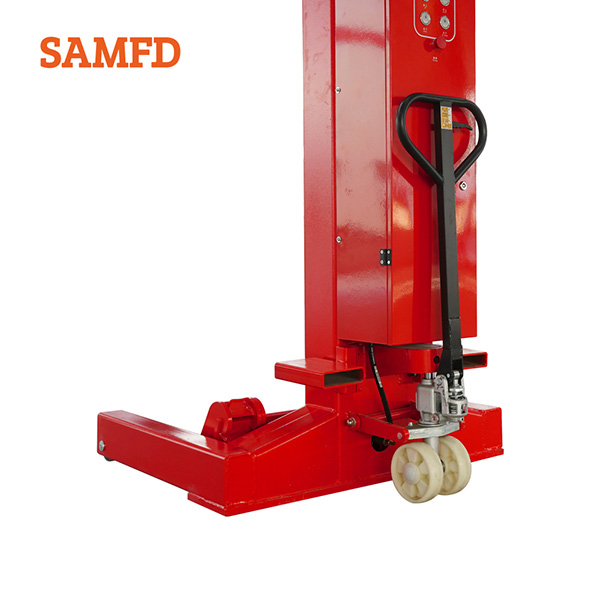

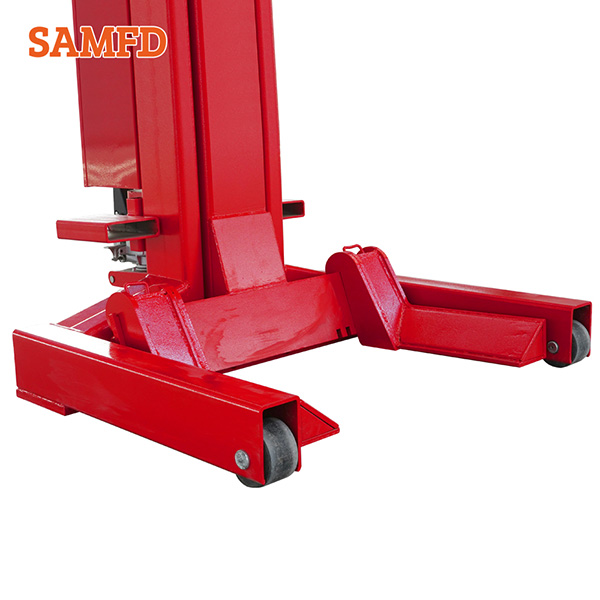

Lightweight mechanical design, easy to drive
Easy to move, can be moved throughout the entire factory building, can be used both indoors and outdoors, has small storage space, and improves space utilization.
Fault self diagnosis function
If the displacement of each column lifting frame exceeds the tolerance or the column power supply fails, the lifting equipment will automatically stop and level the lifting height
Stable wireless transmission signal
The communication distance can be greater than 100 meters. There are 32 communication channels that allow multiple collections to be used simultaneously on the same site without interfering with each other.
Multiple safety measures for mechanical and hydraulic locks
Mechanical/hydraulic dual locking, automatic overload protection, equipped with upper limit switch for maximum/minimum automatic shutdown
High strength bracket arm
Made of high-strength manganese steel, sturdy and durable

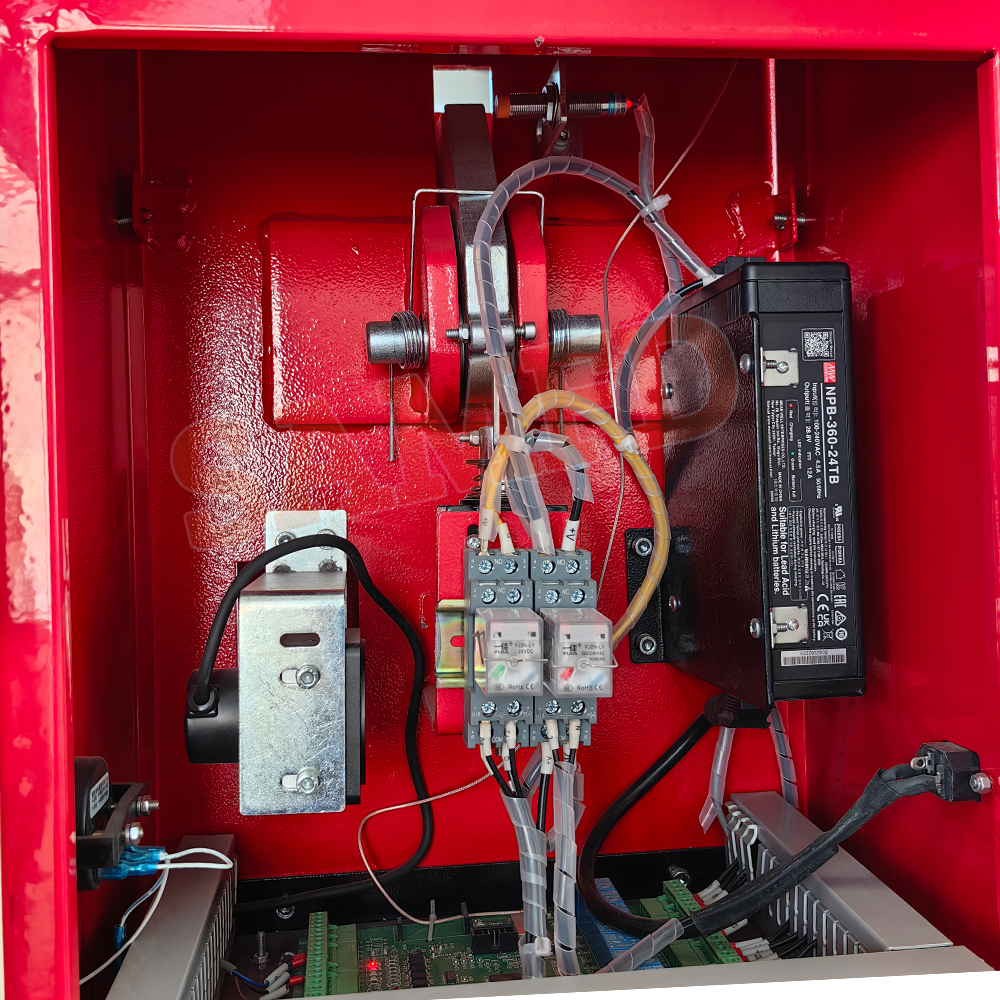

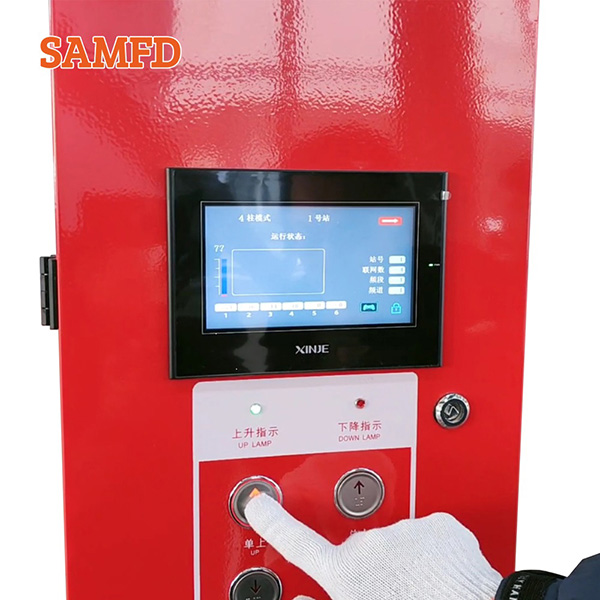

Intelligent electrical control box
The intelligent control box is easy and convenient to operate. Each column is equipped with a feature rich color touch screen display.

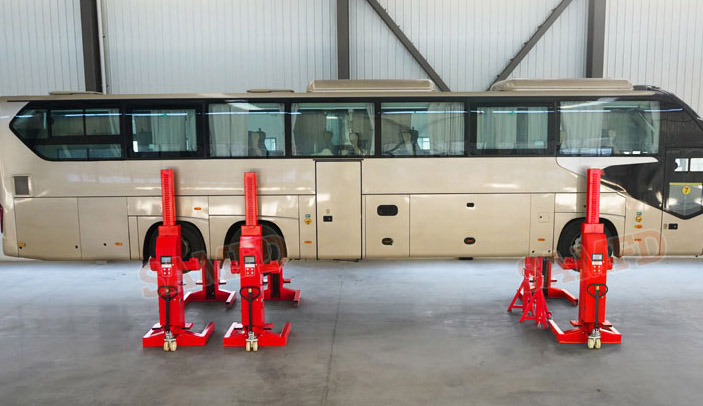

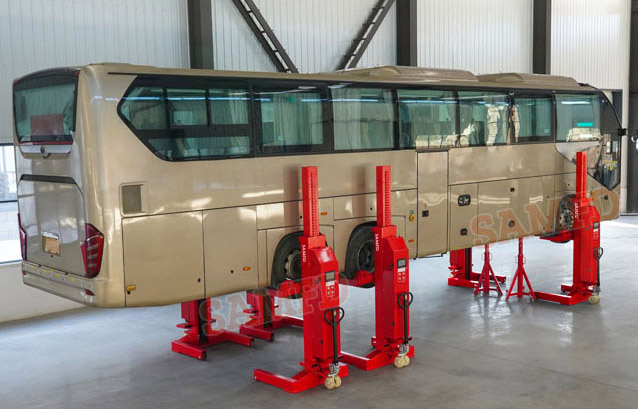

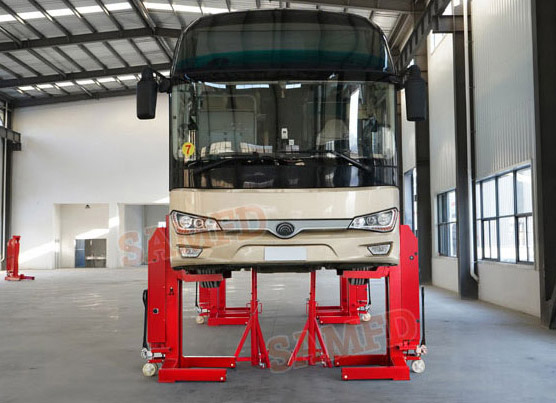

Fotos reales del producto
