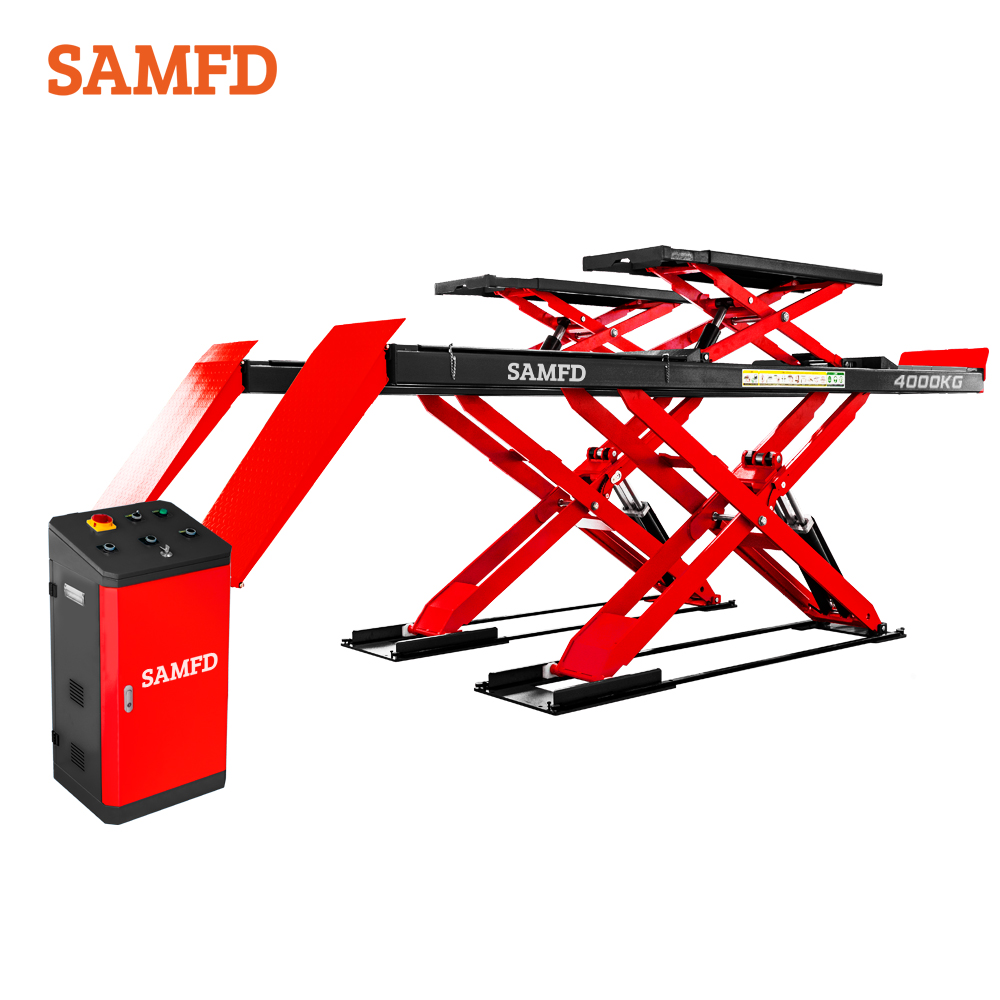

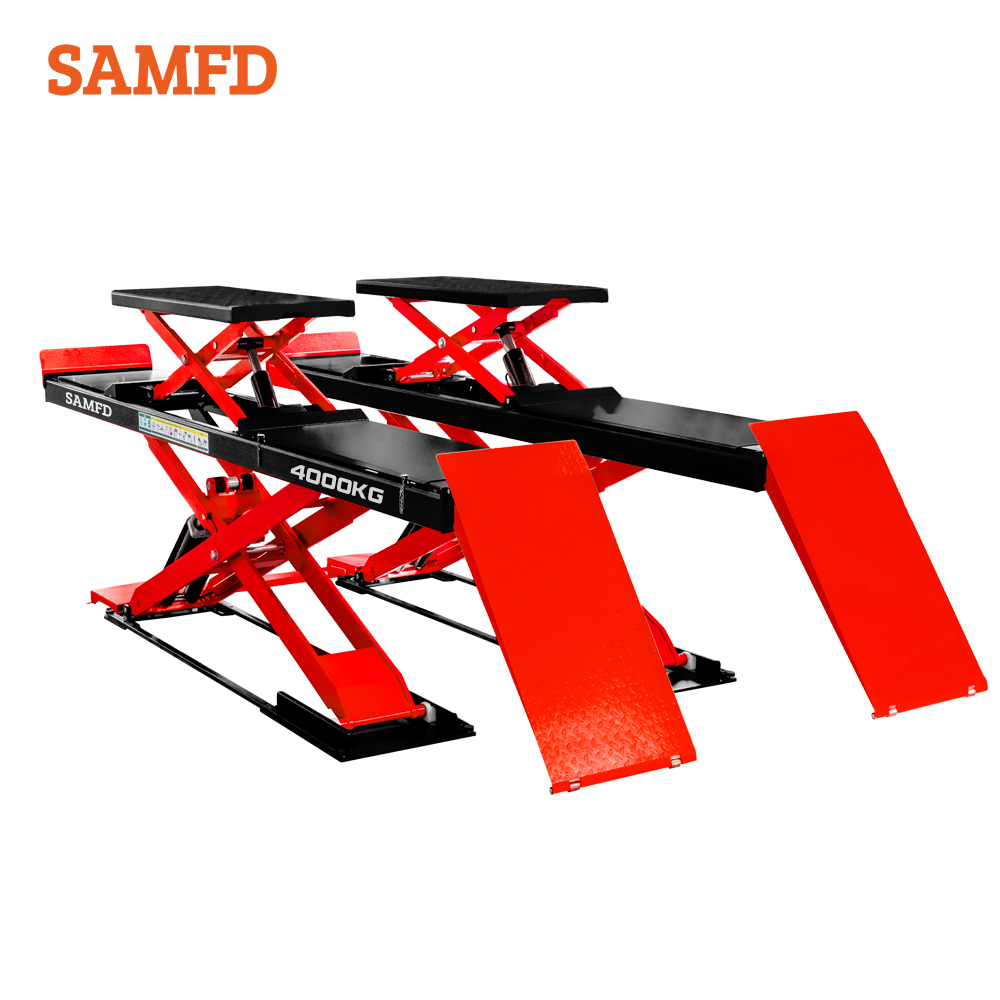

Ultra-Thin Scissor Lift (SML-4.0MC)
Super low platforms and ramps meet various chassis height of vehicles,small space to take and installed directly on the ground.
Double tandem synchronous balanced cylinders and four cylinders driving ensures synchronous lifting of platforms,the 4.0T lifting capacity can match various vehicles repair requirement.
- Whatsapp/Wechat/Teléfono: +86-18865587388
- Correo electrónico: info@samfdequipment.com

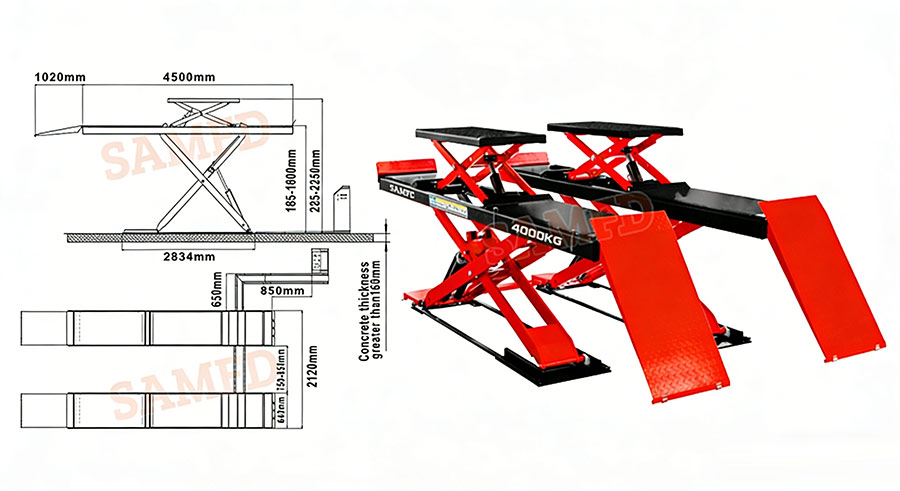

Parámetros del producto
| PROJECT | SML-4.0MC |
| Lifting Capacity | 4000kgs (8800lbs) |
| Shear Bearing Capacity | 2500kgs (5500lbs) |
| Lenght of Platform | 4500mm (177.17") |
| Width of Platform | 640mm (25.20") |
| Lifting Height | 1800mm (70.87") |
| Secondary Jack | 450mm (17.72") |
| Min. Height | 185mm (7.28") |
| Lifting Time | 50-60s |
| Motor Power | 2.2kW |
| Voltage | 110/220/380V |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Descripción del producto
1. Super low platforms and ramps meet various chassis height of vehicles,small space to take and installed directly on the ground.
2. Double tandem synchronous balanced cylinders and four cylinders driving ensures synchronous lifting of platforms,the 4.0T lifting capacity can match various vehicles repair requirement.
3. The lift is equipped with secondary lifting trolley, moving flexibly,controlled by manual button and remote.
4. Extended side slide adapts to vehicles of various wheelbases. The lift can be used for small vehicles including Pickup,SUV and business vehicles.
5. The use of mechanical safe lock, explosion-proof valves and self-lock of hydraulic systems ensure a safe work.
6. Imported oil seals prolongs the life of the cylinder. The combination valve block structure can level the machine.
7. Double deck steel oil pipe achieves good explosion-proof performance.
8. The surface adopts the shot blasting, degrease, parkerising, static powder coating, so it is of anti-erosion, good adhesion and high hardness.
Detalles del producto

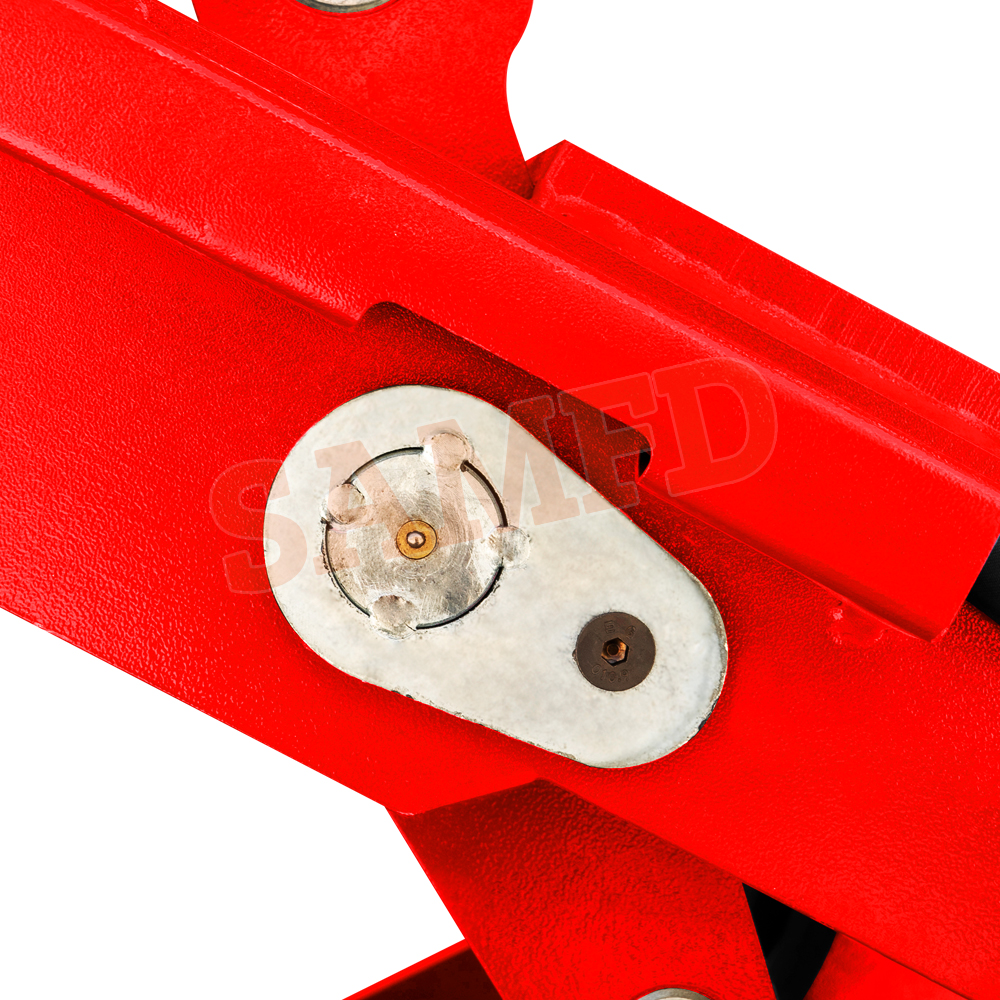

OIL FILLING HOLE
All pin joints are equipped with oil injection holes for filling the oil,better lubricate the bearing and increase the service life of the equipment.

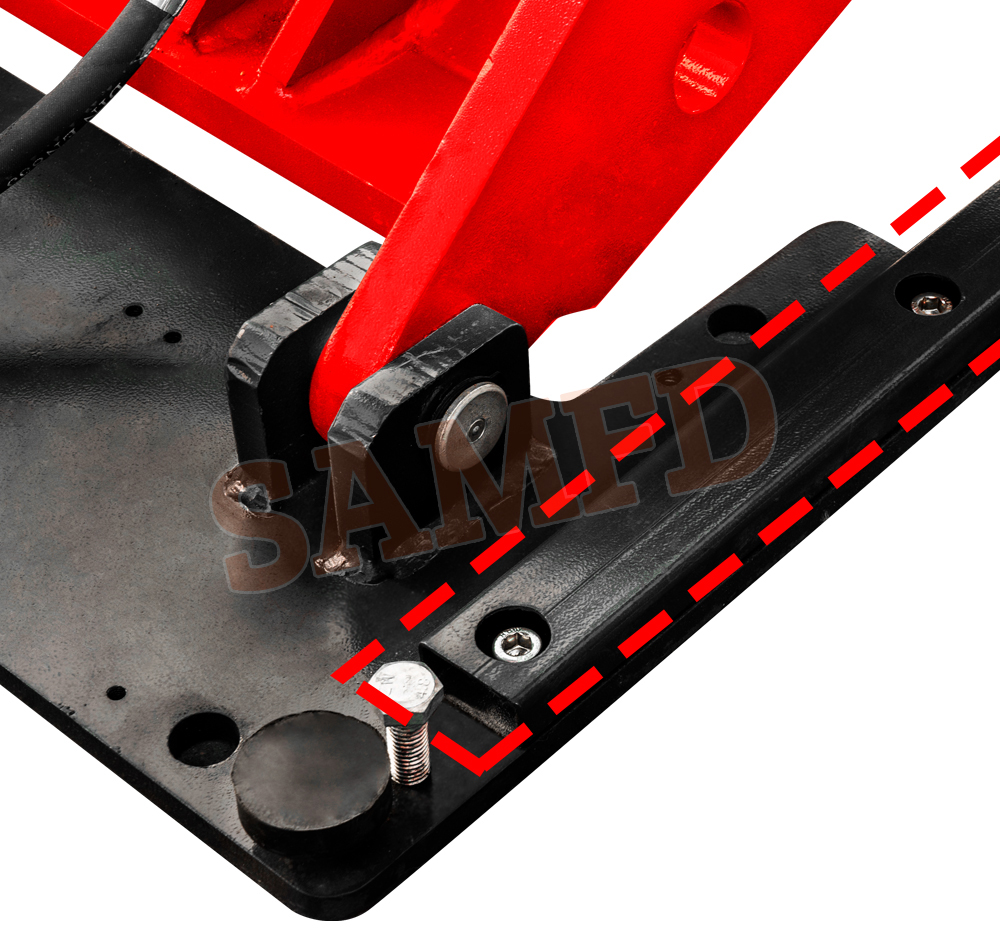

DETACHABLE BASE
The base connection pin has a detachable design,and if you need to replace the base accessories,you only need to remove the screws without cutting.

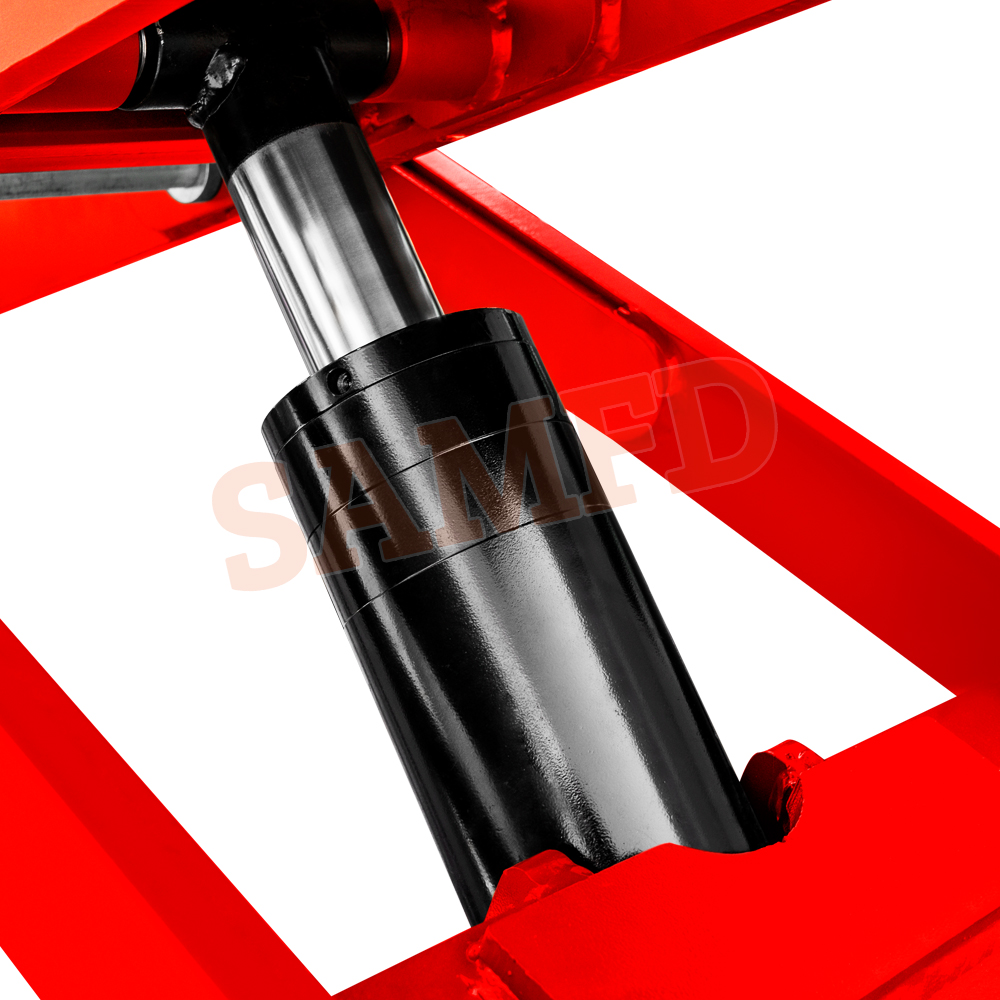

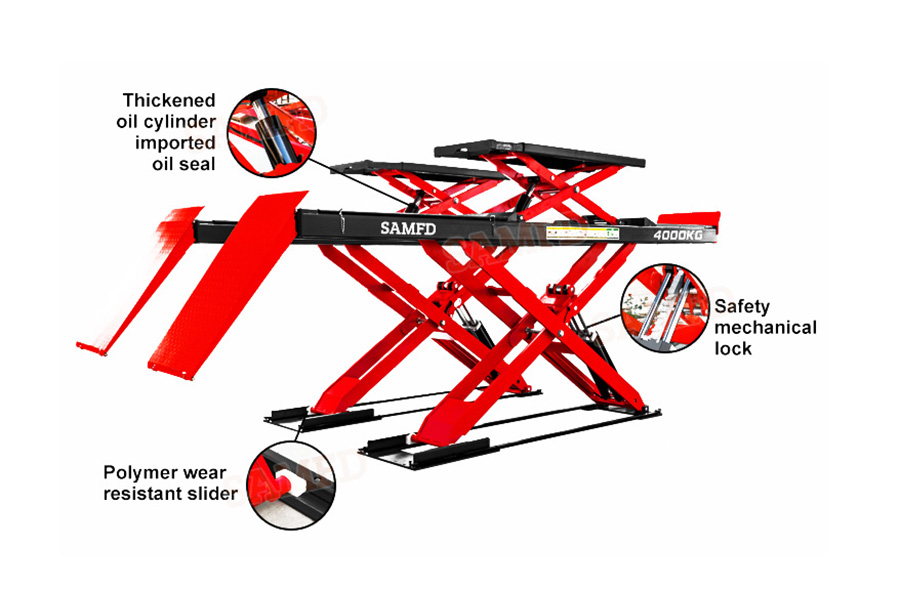

THICKENED OIL CYLINDER INLET OIL SEAL
Greater lifting force,smooth lifting without tipping

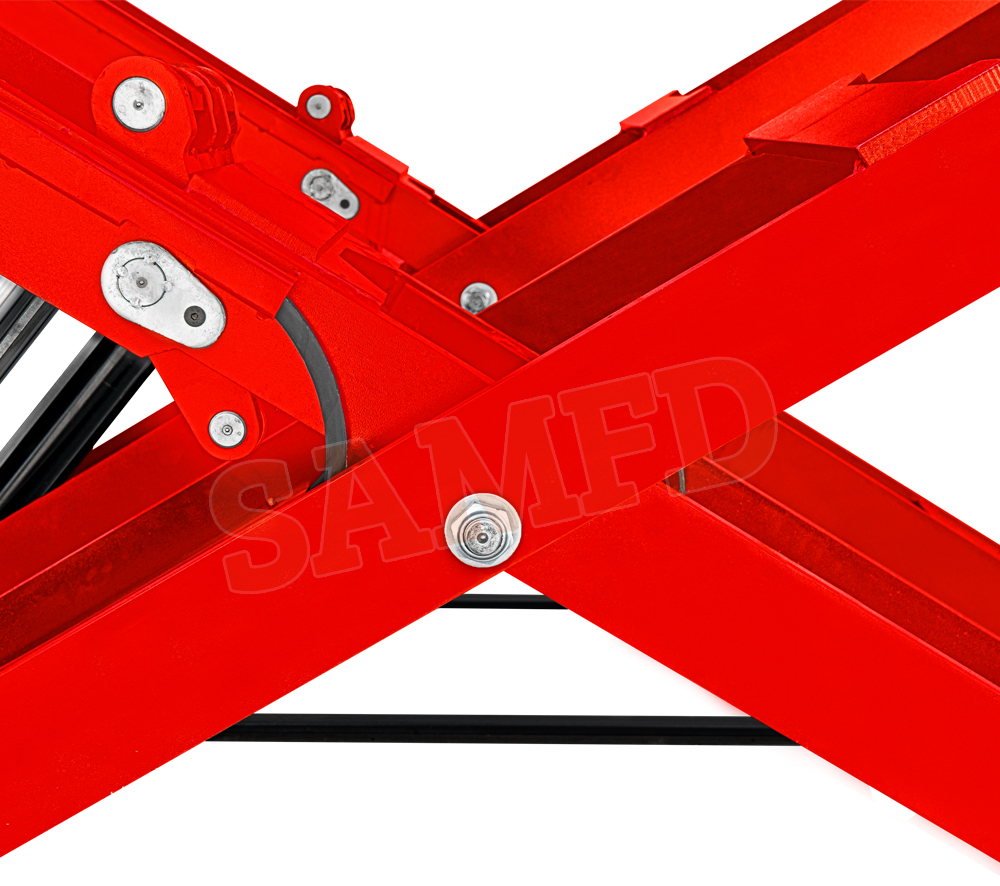

THICKENED SOLID SUPPORT ARM
The thickened solid steel plate is laser cut and formed ,which is sturdy,durable,and does not deform.lifting various types of vehicles without pressure.

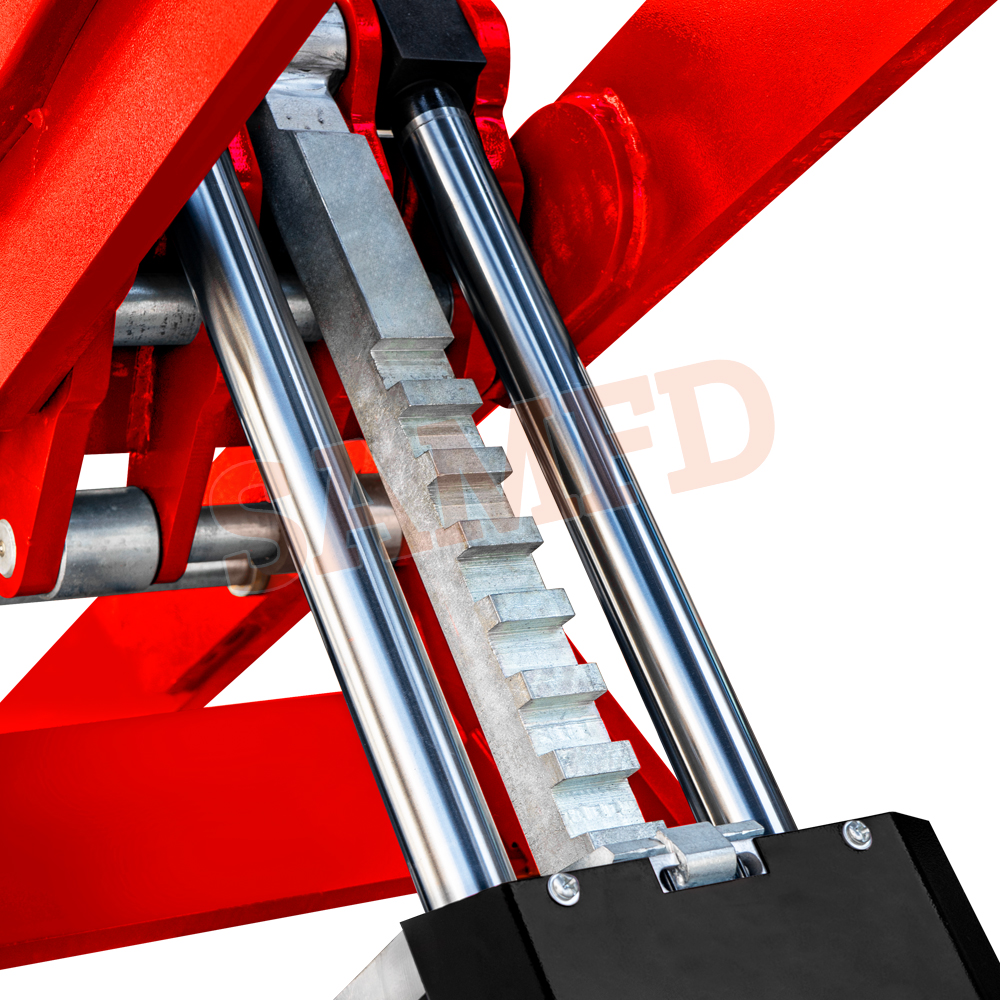

SAFETY MECHANICAL LOCK
Integrated solid locking teeth using 10000 watt laser cutting for higher load-bearing capacity and significantly improved safety performance.

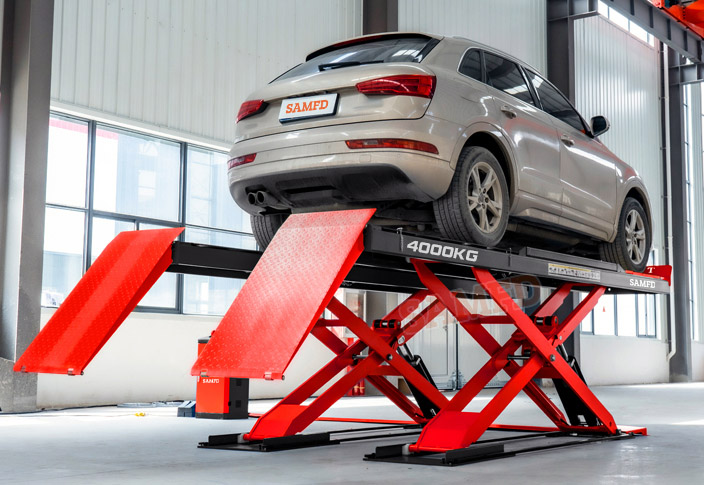

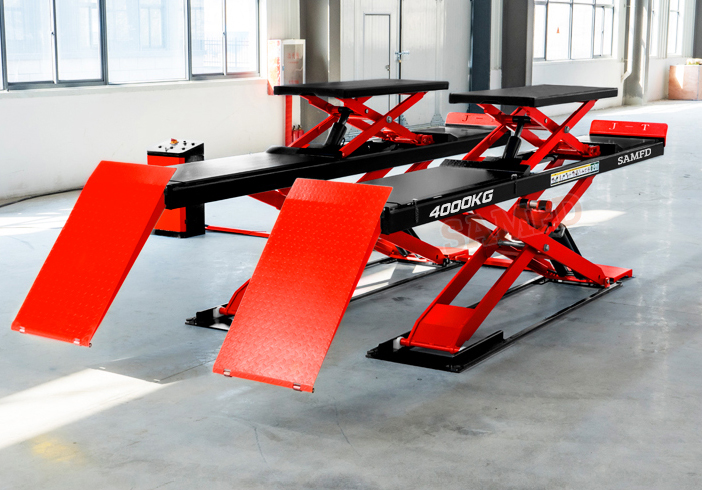

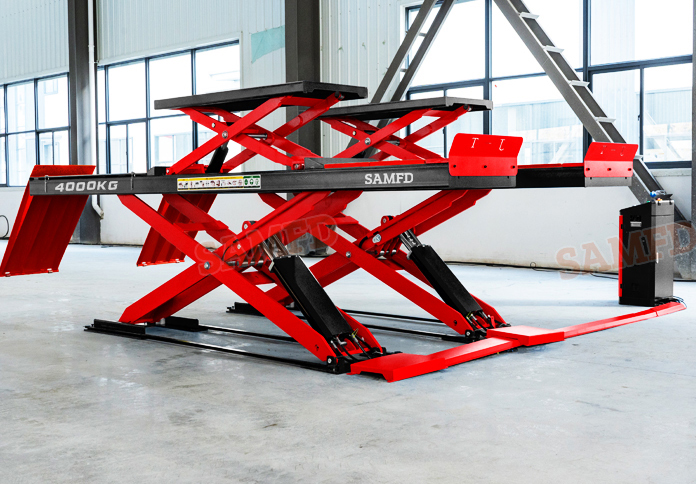

Fotos reales del producto
