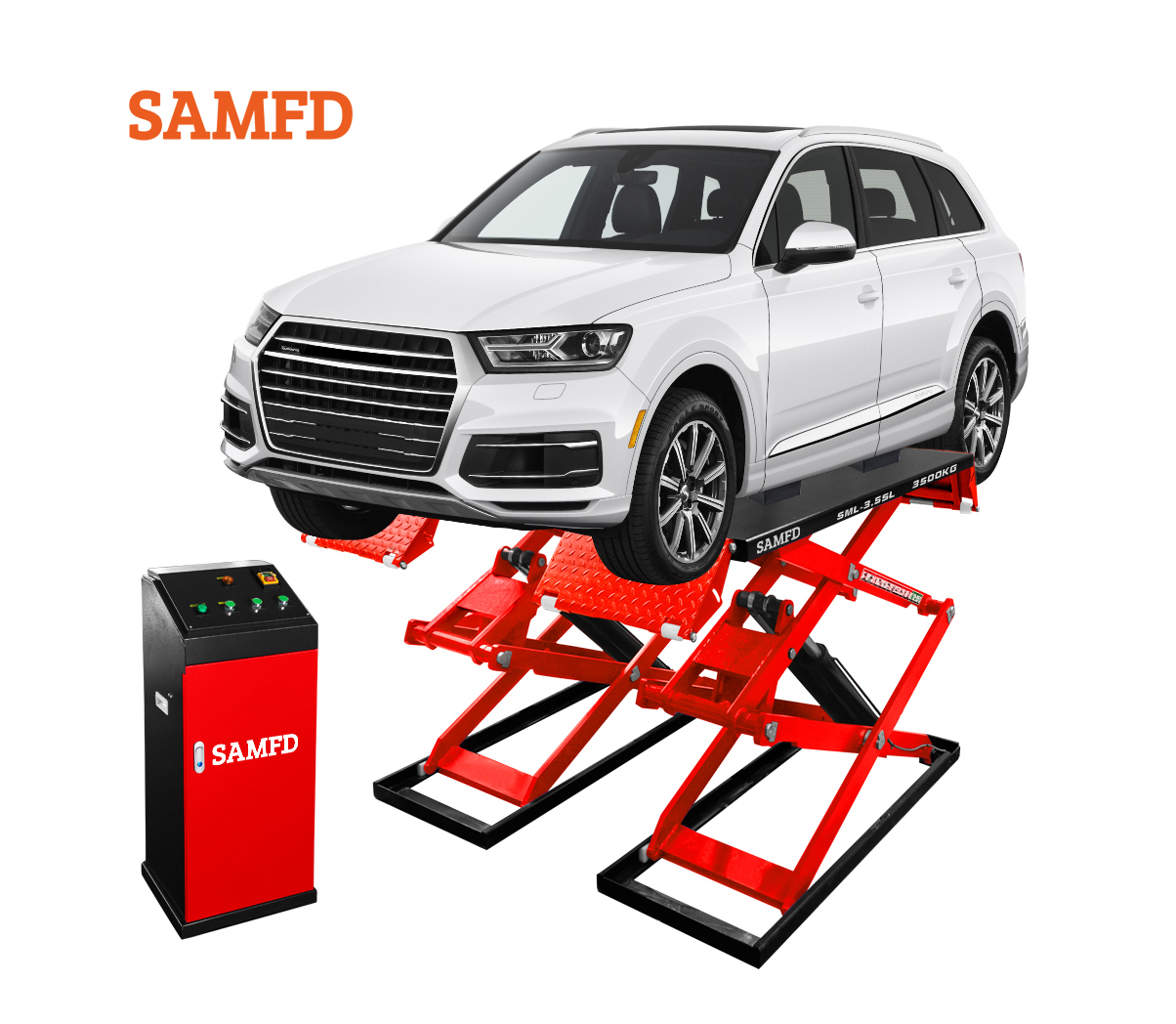

    Ultra-Thin Scissor Lift (SML-3.5SL）

    The underground scissor lift is suitable for small cars as a four-wheel aligner and vehicle inspection and maintenance.

    Consultar
    Parámetros del producto
    Descripción del producto
    Detalles del producto
    Fotos reales del producto

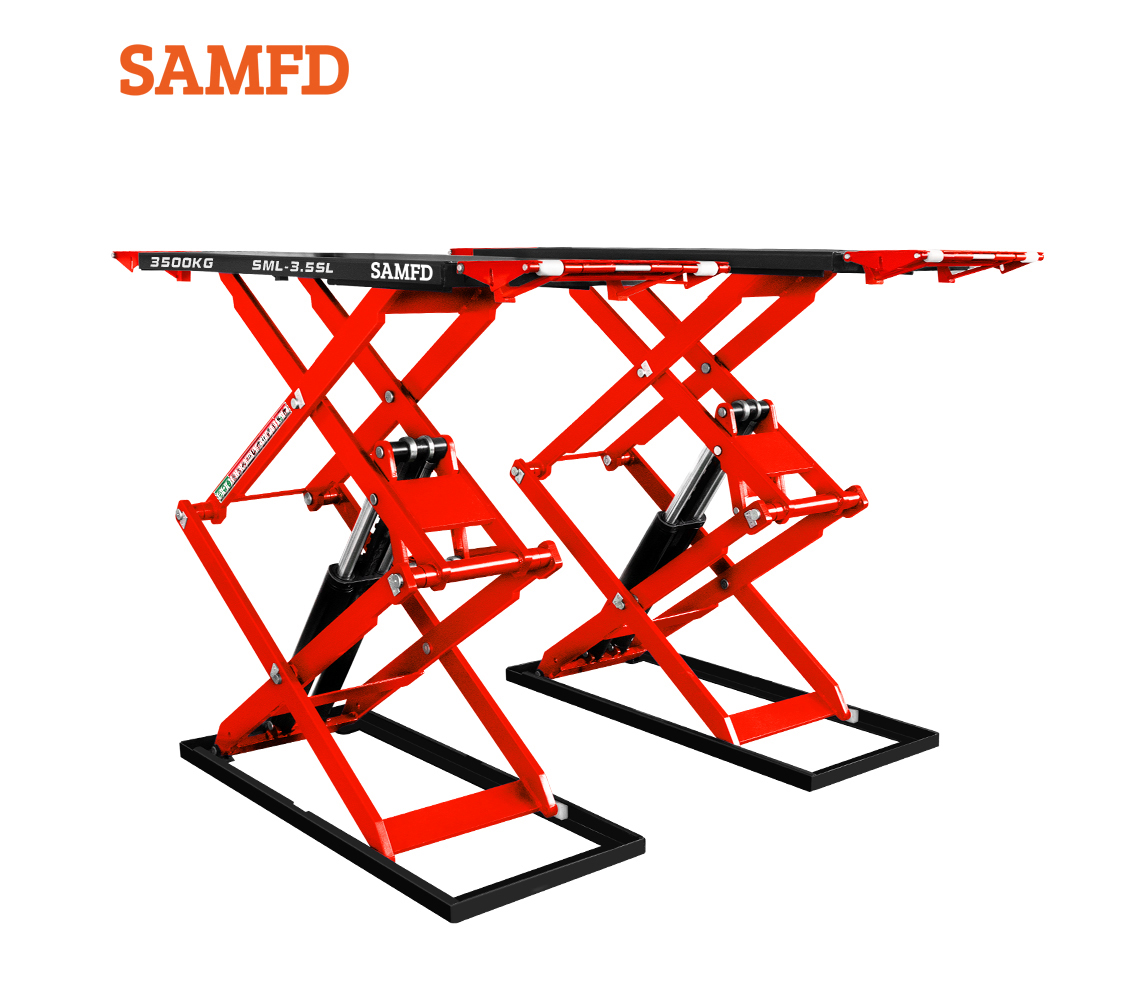

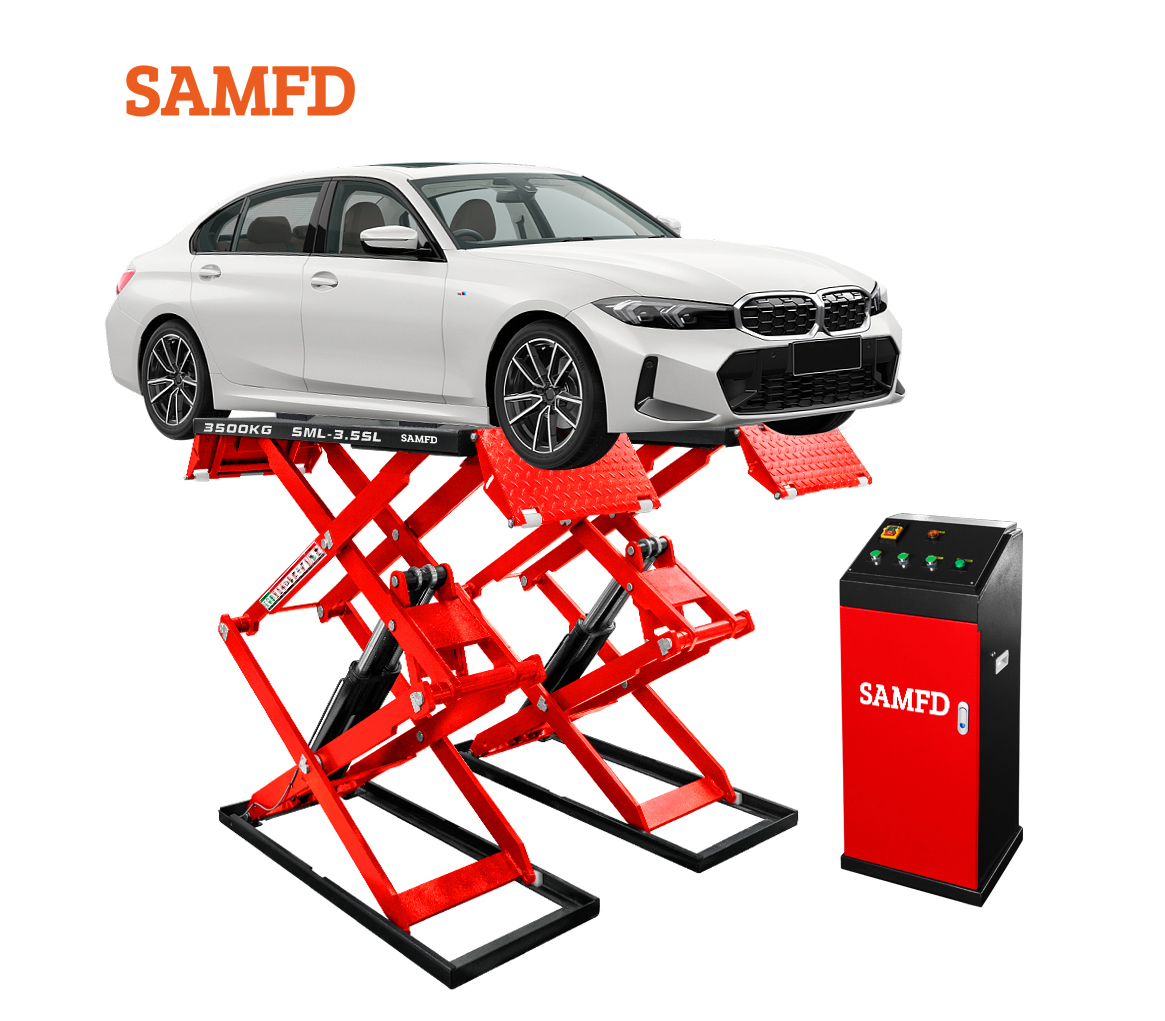

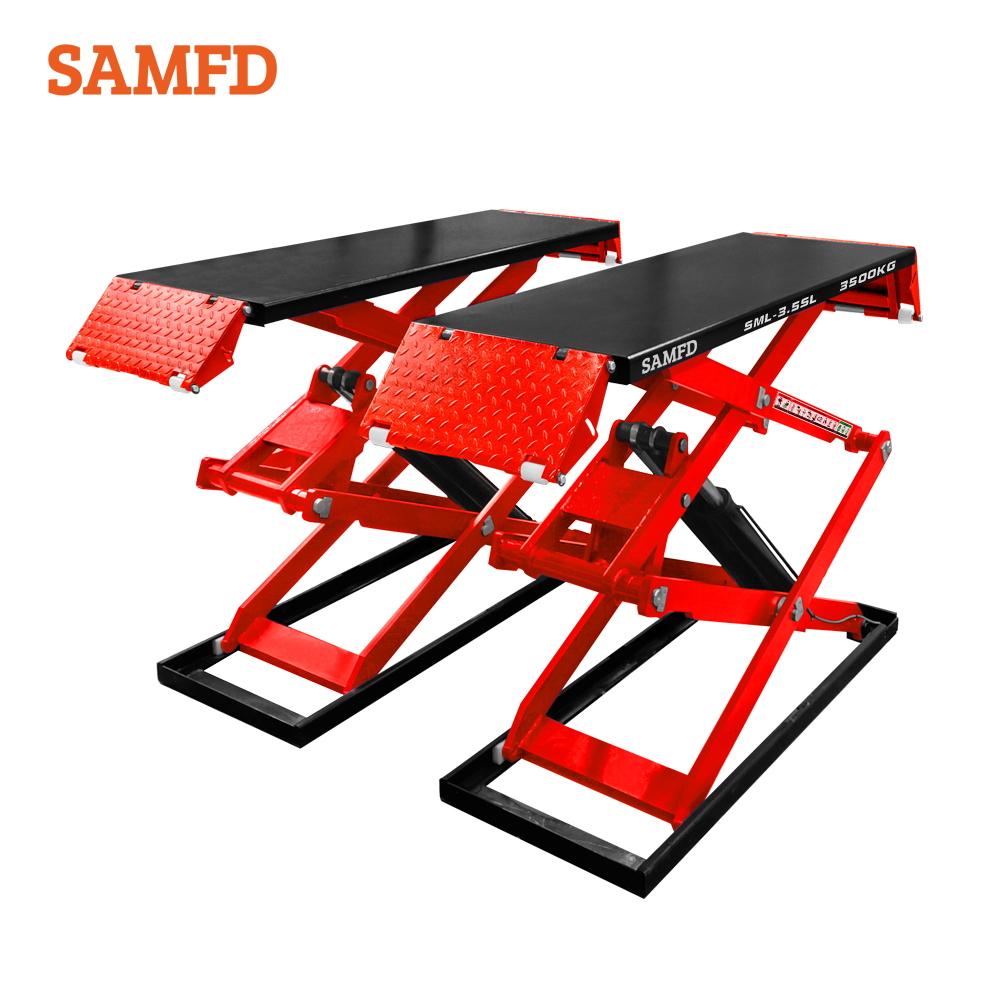

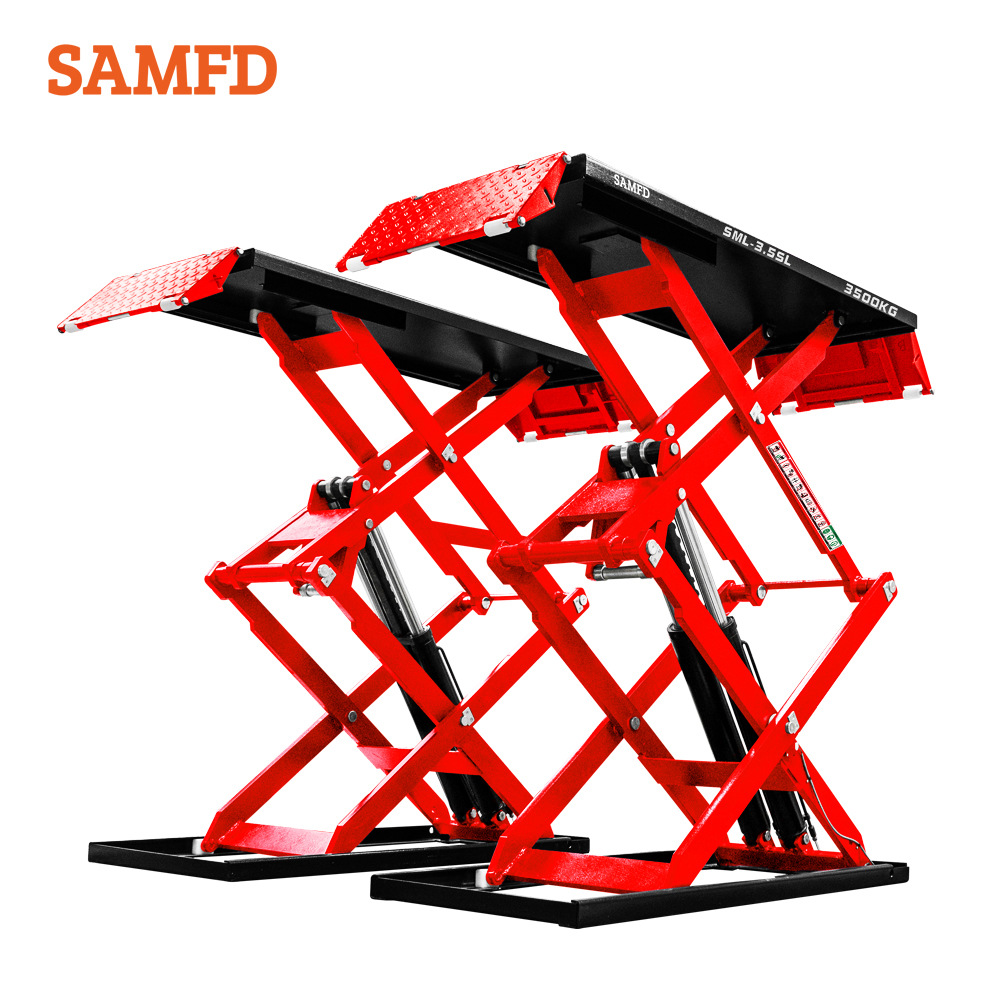

    Ultra-Thin Scissor Lift (SML-3.5SL）
    ULTRA-THIN SMALL SCISSOR CAR LIFT

    Parámetros del producto

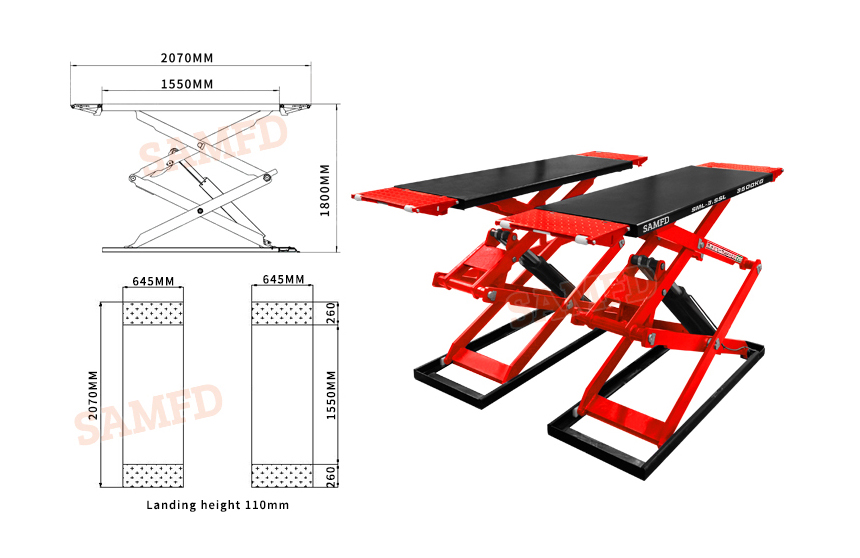

    PROJECT SML-3.5SL
    Lifting Capacity 3500kgs (7700lbs)
    Lenght of Platform 1550mm (61.02")
    Width of Platform 645mm (25.39")
    Lifting Height 1800mm (70.87")
    Min. Height 110mm (4.33")
    Lifting Time 50-60s
    Operating Air Pressure 0.6-0.8MPa
    Motor Power 2.2kW
    Voltage 220/380V

    * Note: Technical parameters updated & adjusted as to market demand without prior notice

    Descripción del producto

    1. High-strength manganese steel scissor lift has stable structure, large load capacity, smooth lifting, easy installation and maintenance.
    2. Hidden scissor thin structure which occupied small space, also don't need ground pits.
    3. Start-up device guarantees 3.5ton lifting capacity at the initial lifting stage and smooth lowering at the last lowering stage.
    4. The pneumatic double-teeth self-locking system and the anti-explosive pipe insurance structure, safe and reliable.
    5. Easy to handle control unit (24v control voltage) with emergency stop.
    6. Drive-on ramps which can be locked on level as platform extension, suitable for more long chassis vehicles.
    7. Imported hydraulic pressure, pneumatic and electrical components.
    8. Easy for tire removal and chassis maintenance.
    9. CE certified.

    Detalles del producto

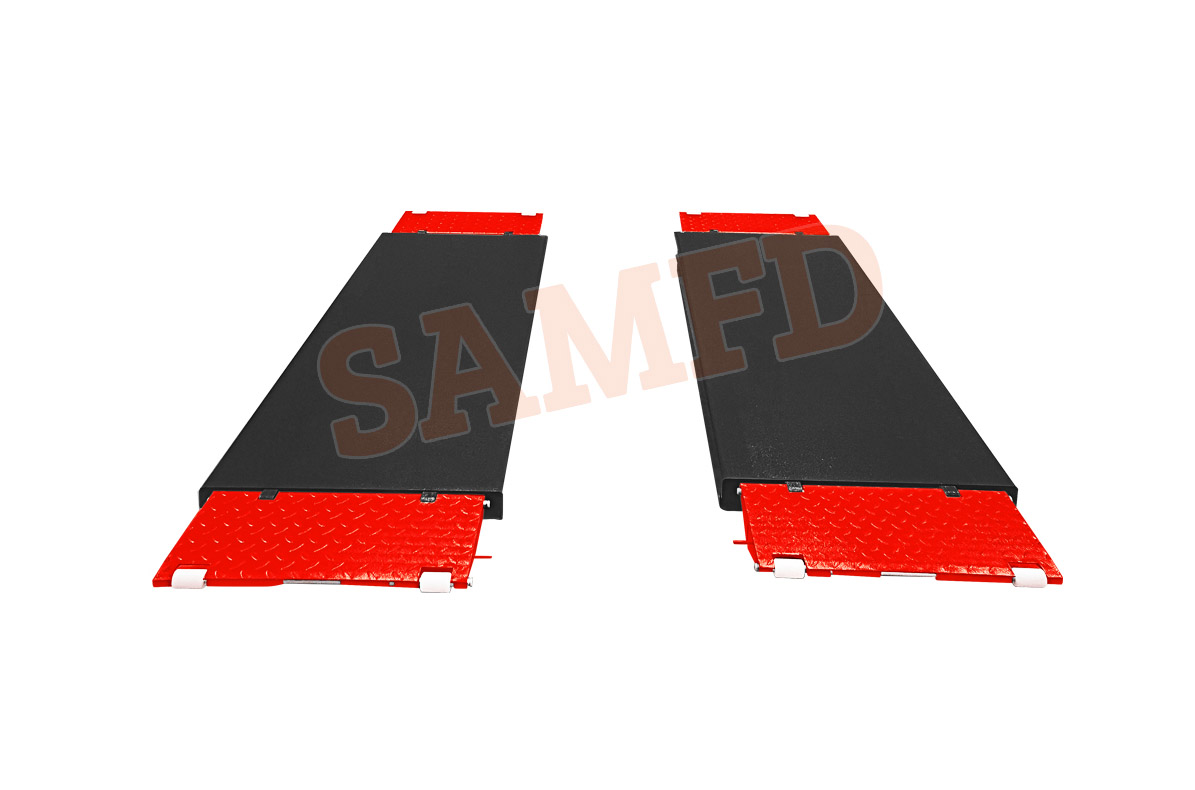

    WIDENING PANEL

    WIDENING PANEL

    The vehicle is stable and not swaying during lifting and lowering, ensuring the safety of personnel and property.

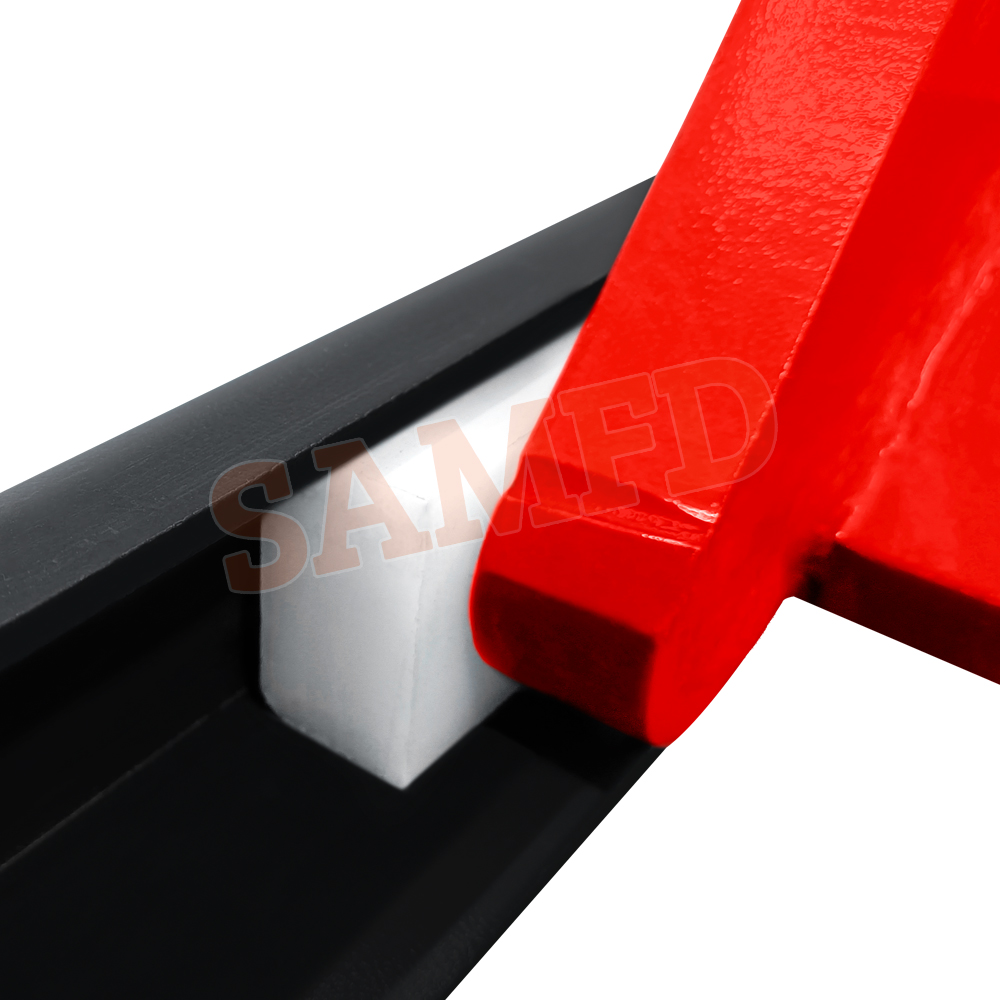

    POLYMER WEAR-RESISTANT SLIDER

    POLYMER WEAR-RESISTANT SLIDER

    Made of polytetrafluoroethylene material, it is more wear-resistant and durable to use

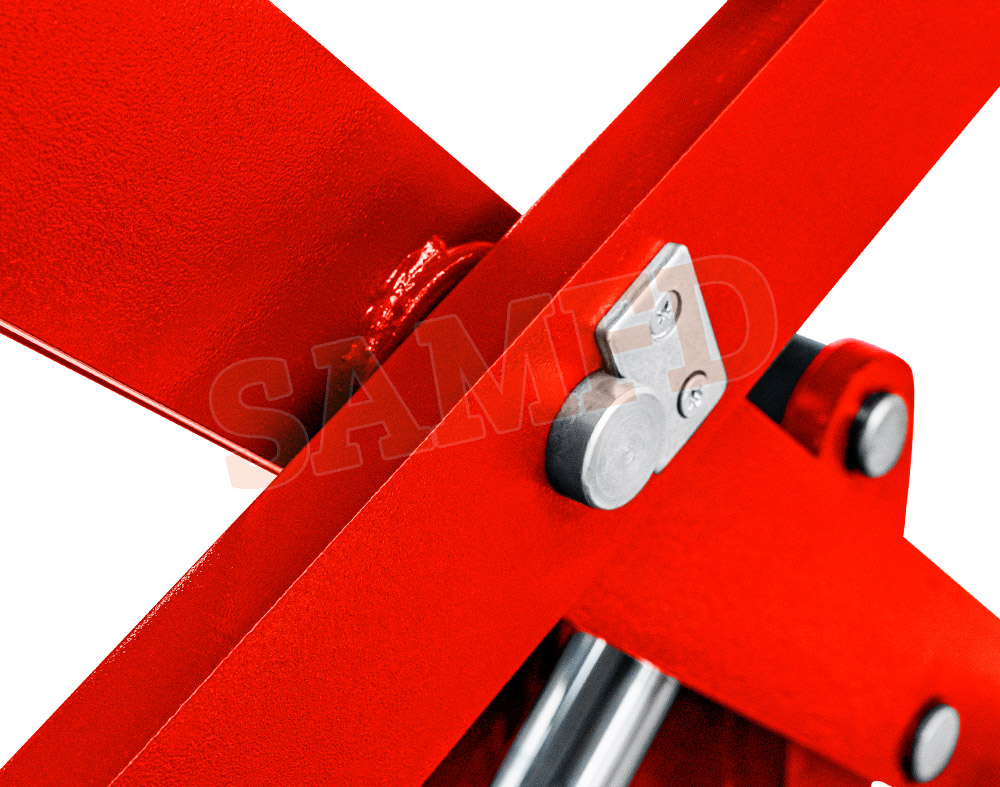

    SCISSOR TYPE THICKENED SUPPORT ARM

    SCISSOR TYPE THICKENED SUPPORT ARM

    The Golden Triangle conforms to mechanical design,made of genuine materials, stable and powerful.

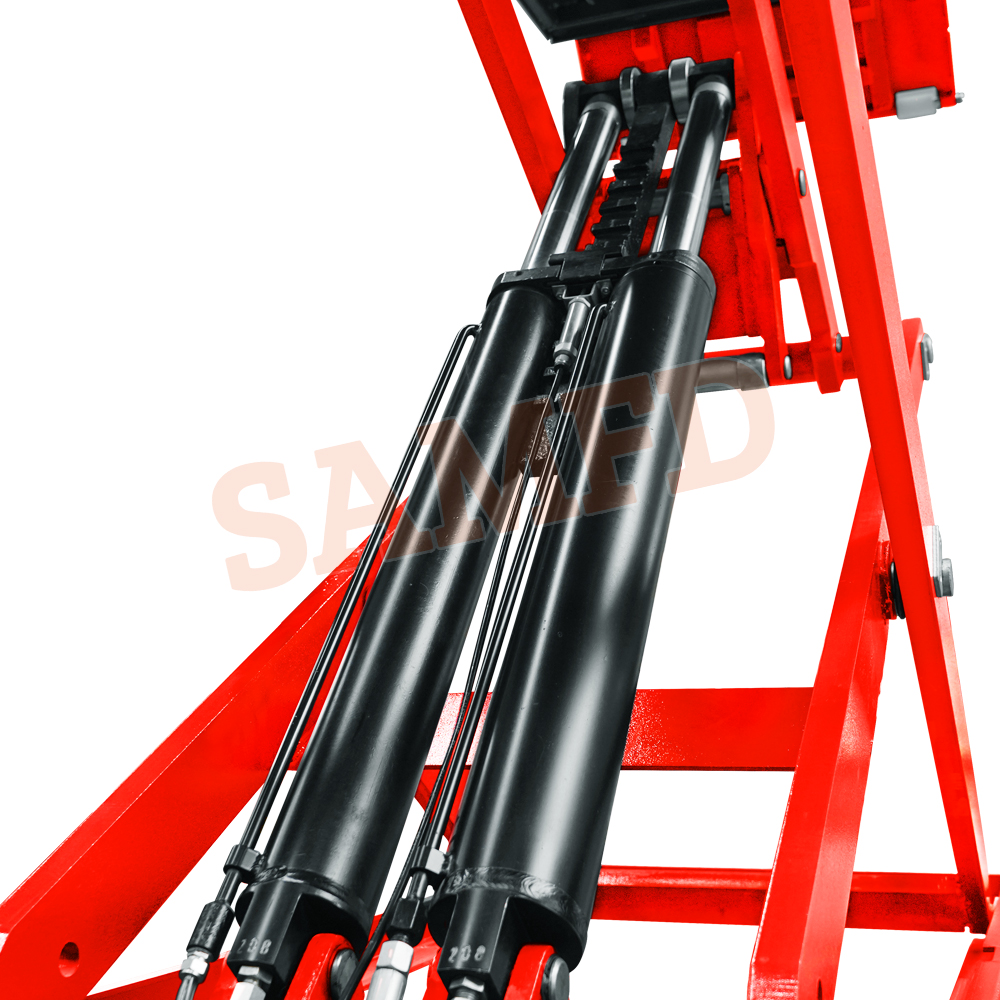

    FIX THE FOUR OIL CYLINDERS THROUGH THE SHAFT

    FIX THE FOUR OIL CYLINDERS THROUGH THE SHAFT

    High quality oil pipe lifting without pressure, joint sealing without oil leakage,manganese steel buckle.

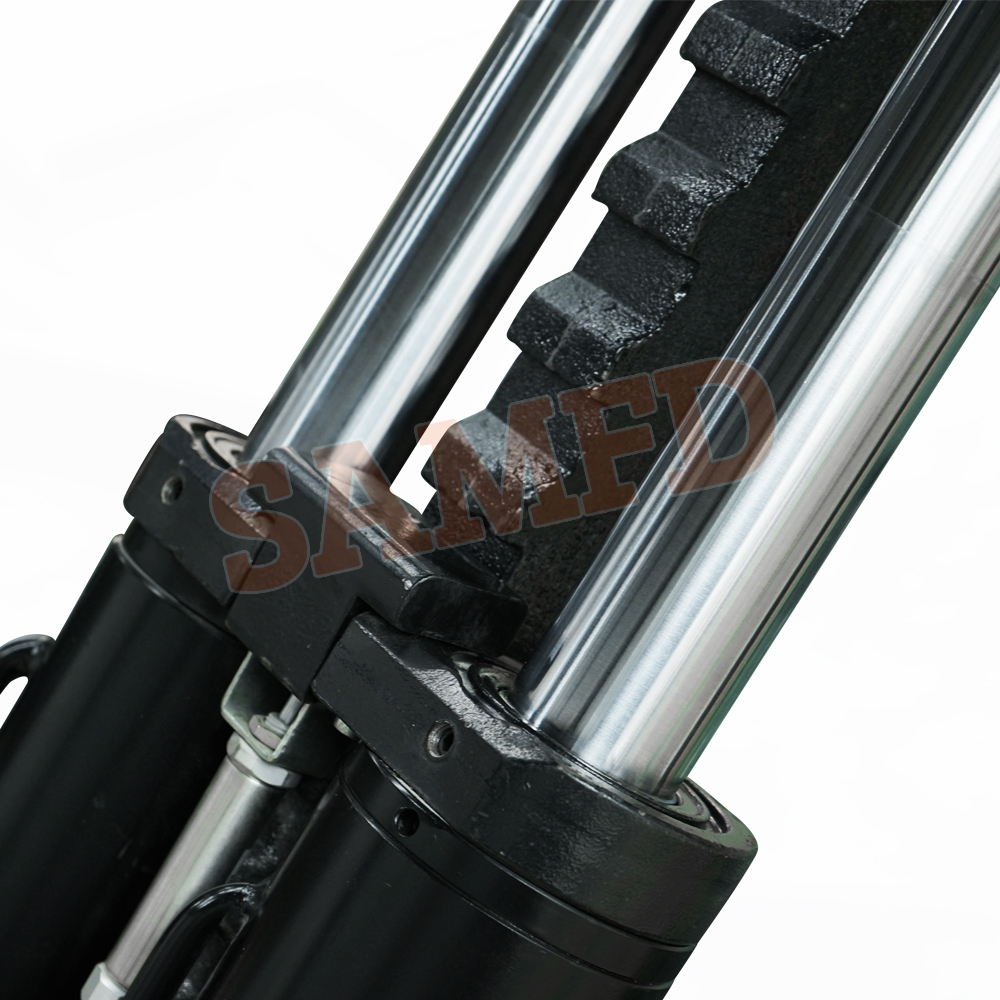

    SAFETY MECHANICAL LOCK

    SAFETY MECHANICAL LOCK

    Laser cutting is formed in one time, with stronger Bite force and enhanced factor of safety.

    Fotos reales del producto

    SML-3.5SL-7
    SML-3.5SL-6

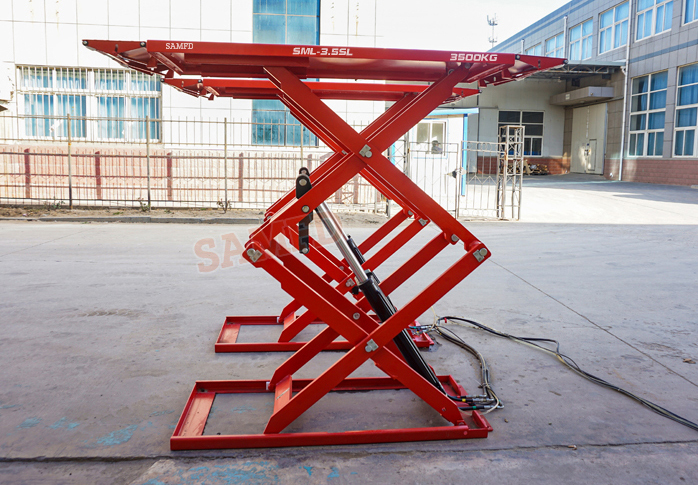

    SML-3.5SL-5

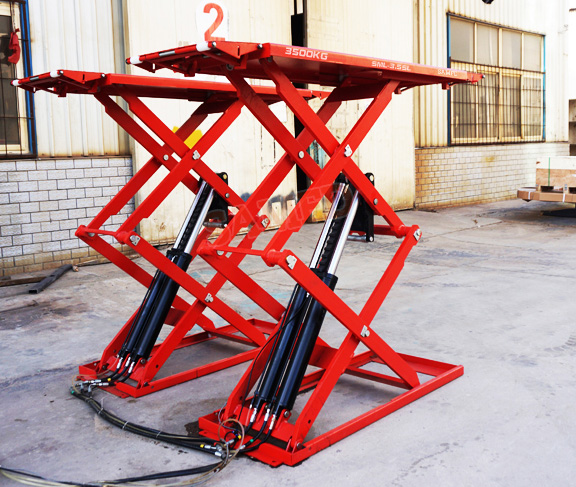

    SML-3.5SL-4

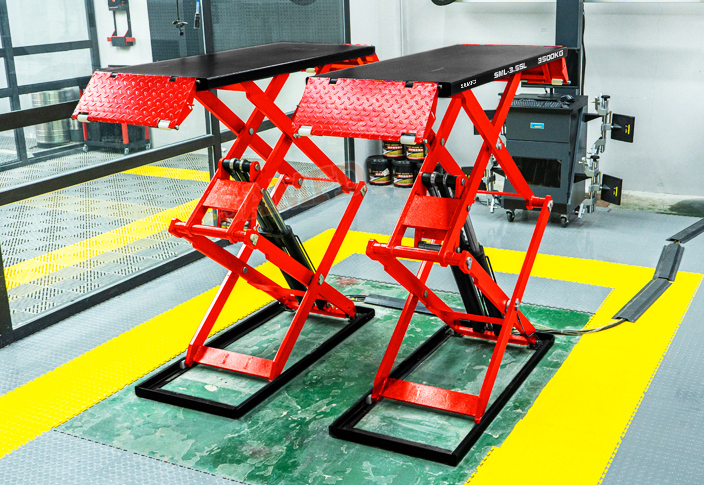

    SML-3.5SL-3

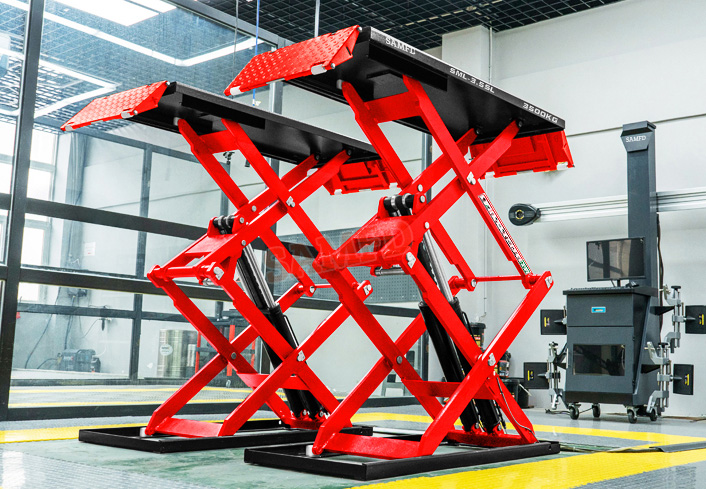

    SML-3.5SL-2

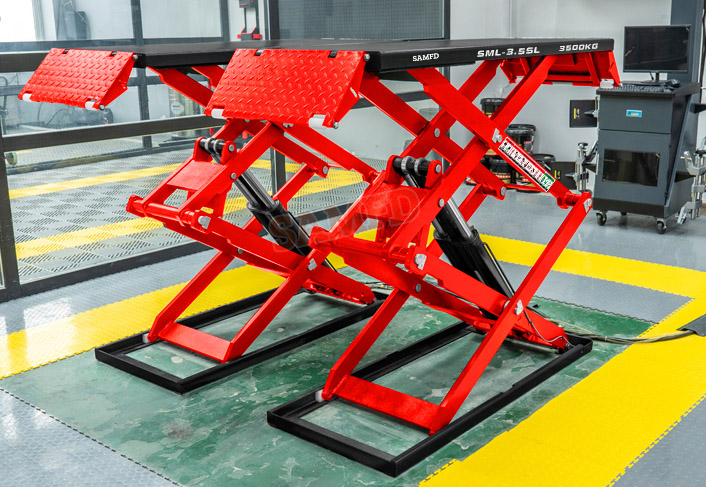

    SML-3.5SL-1
