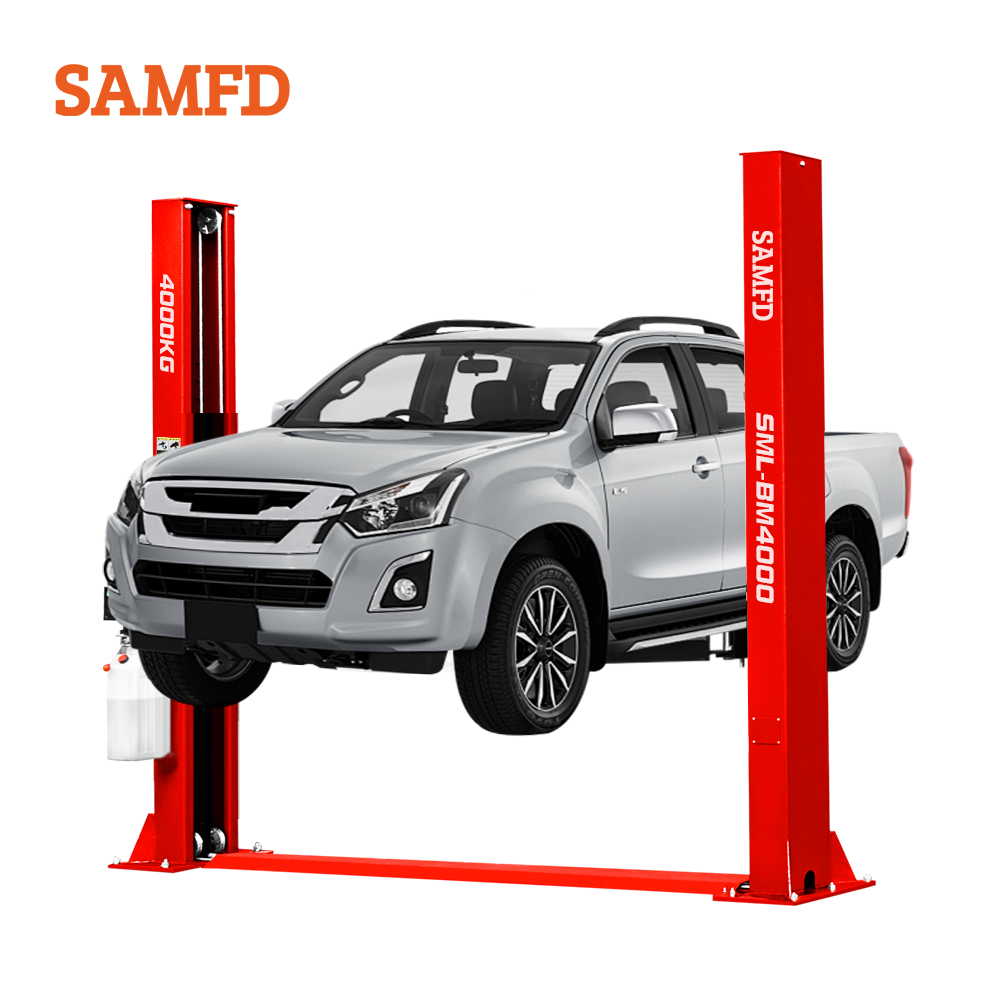

Post Lift SML-BM4000
- CE Certicated
- 4,000Kg lifting capacity.
- lifting height suitable for various operators.
- Double hydraulic cylinder chain drive.
- Overhead safety protection device.
- Reinforced arm for safer lifting.
- Thickened rubber pad to protect door.
- Whatsapp/Wechat/Teléfono: +86-18865587388
- Correo electrónico: info@samfdequipment.com
Parámetros del producto
| PROJECT | Post Lift SML-BM4000 |
| Lifting Capacity | 4000kgs(8800lbs) |
| Overall Height | 2824mm (111.18") |
| Overall Width | 3540mm (139.37") |
| Lifting Height | 1850mm (72.83") |
| Minimum Height | 110mm (4.33") |
| Drive Thru Width | 2719mm (107.05") |
| Inside Column Width | 3000mm (118.11") |
| Motor Power | 2.2kW |
| Voltage | 220V |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Descripción del producto
1. It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity.
2. Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.
3. Door rubber pad protects car door from being damaged in collision.
4. Manual mechanical lock release from two sides.
5. Floor design, suitable for the bottom not high in the auto repair.
6. The arm adopts two stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.
7. Its' base plate design demands less store height.

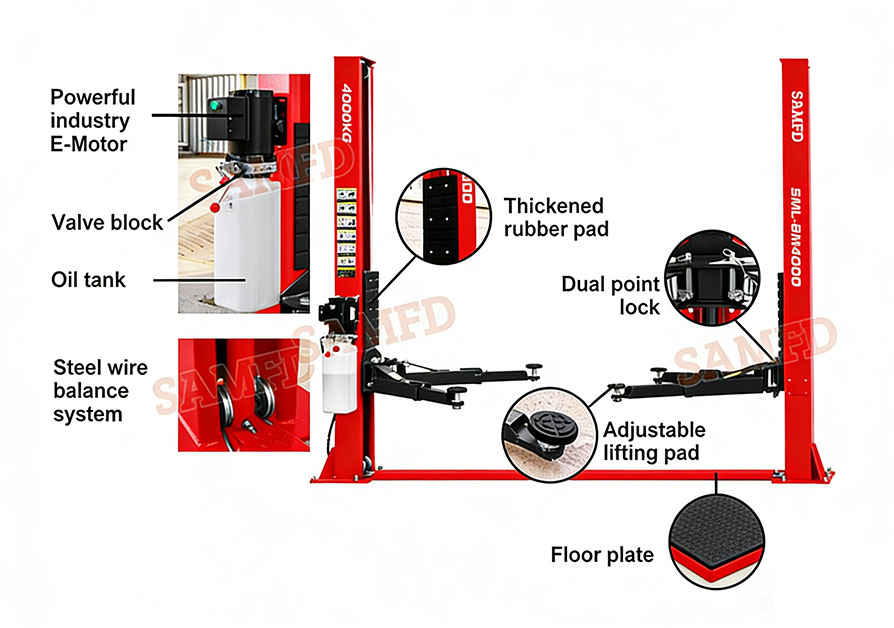

Detalles del producto

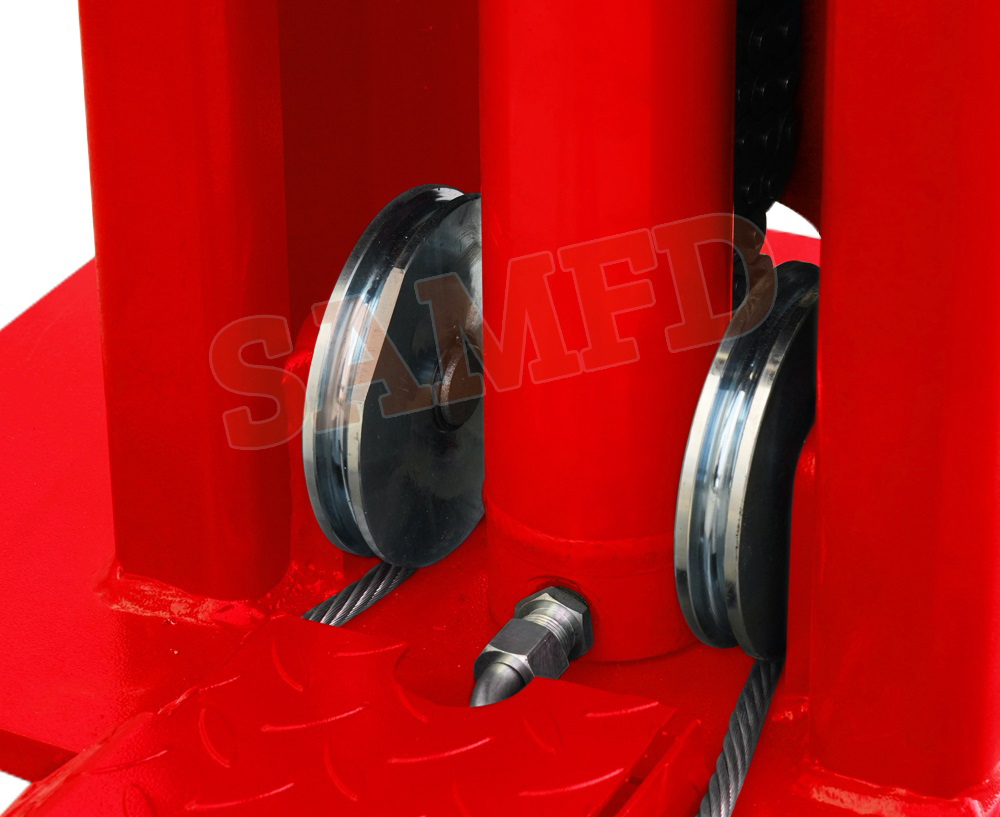

STEEL WIRE BALANCE SYSTEM, SAFE LIFTING AND LOWERING
Force the pulley to move synchronously, effectively preventing the vehicle from tilting.
DUAL HYDRAULIC CYLINDER CHAIN DRIVE
Double chain lifting greatly increases the service life of the equipment.
REINFORCED ARM LIFTING FOR SAFER OPERATION
Multiple reinforcement plates are used to reinforce the stress points. Ensuring safety and reliability.

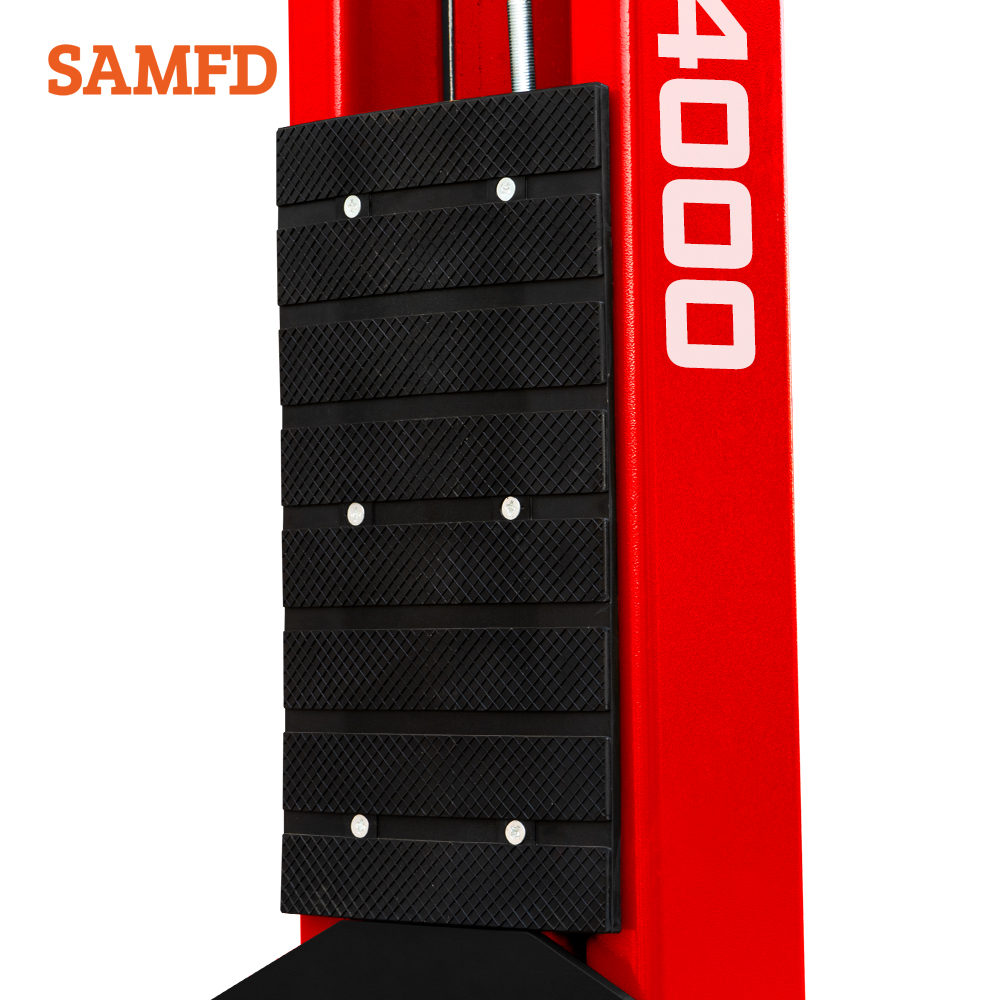

THICKENED RUBBER PAD PROTECTS THE VEHICLE DOOR
Both sides are equipped with thickened rubber pads to protect the vehicle door from scratches.

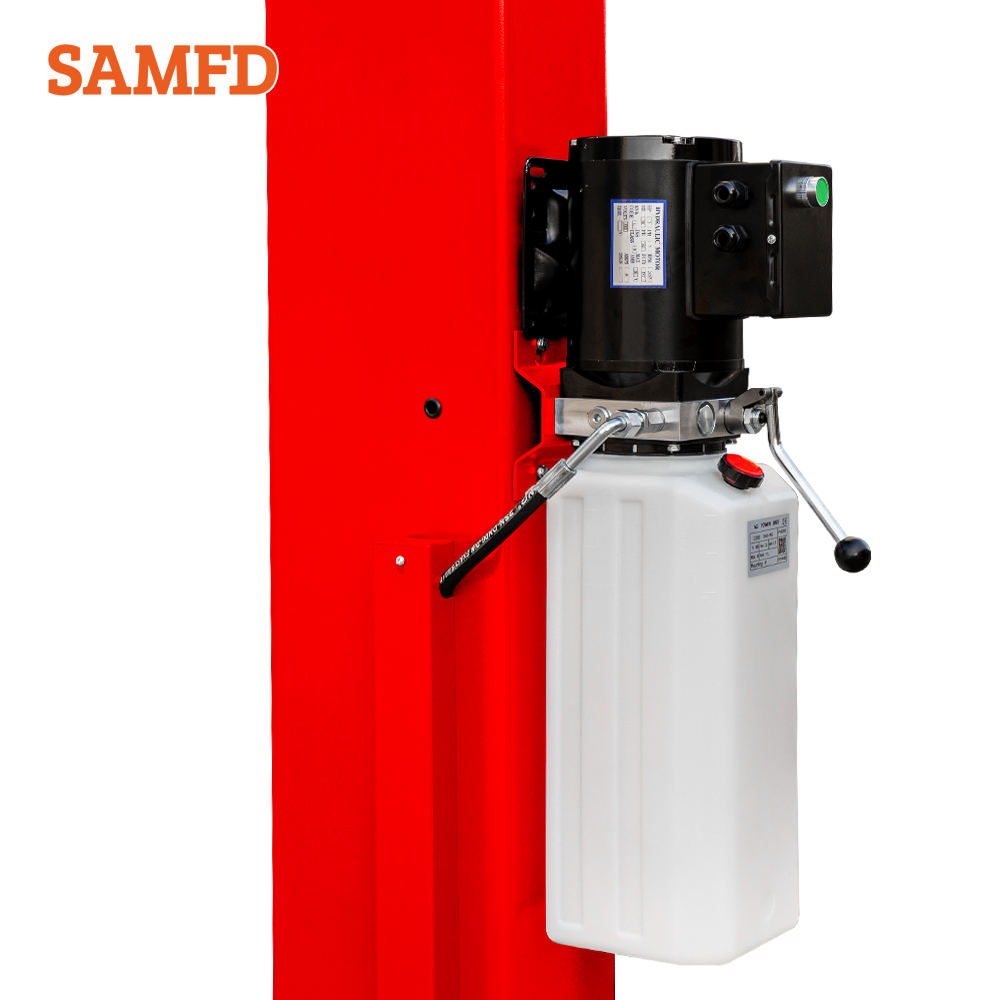

PURE COPPER MOTOR WITH STRONG POWER
The electric hydraulic system has strong power, durability and faster heat dissipation, to maximize work efficiency.

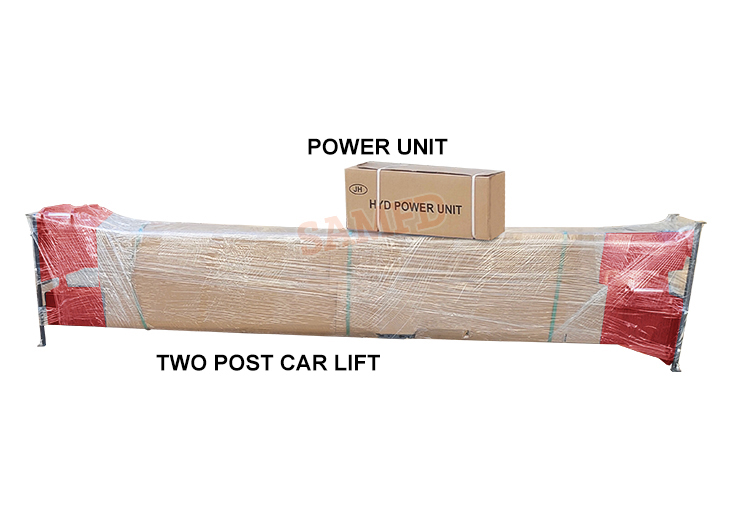

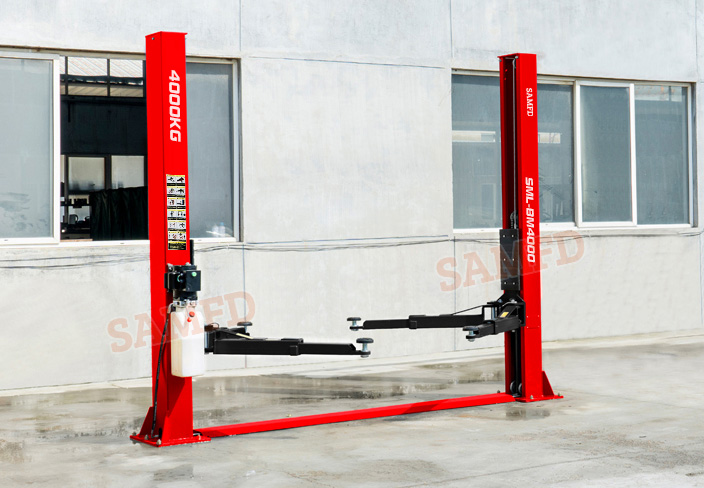

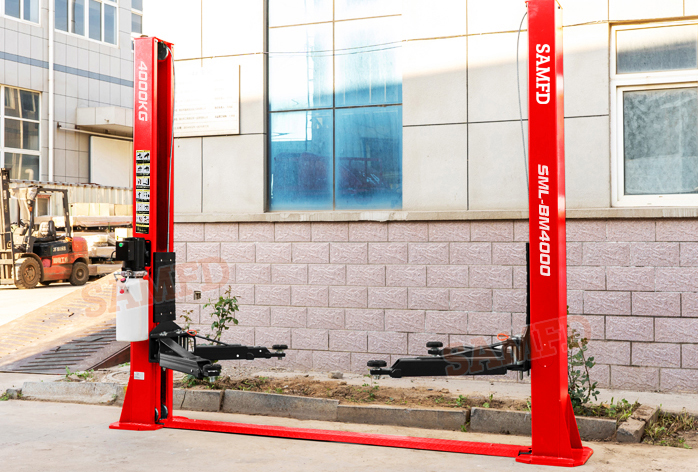

Fotos reales del producto
