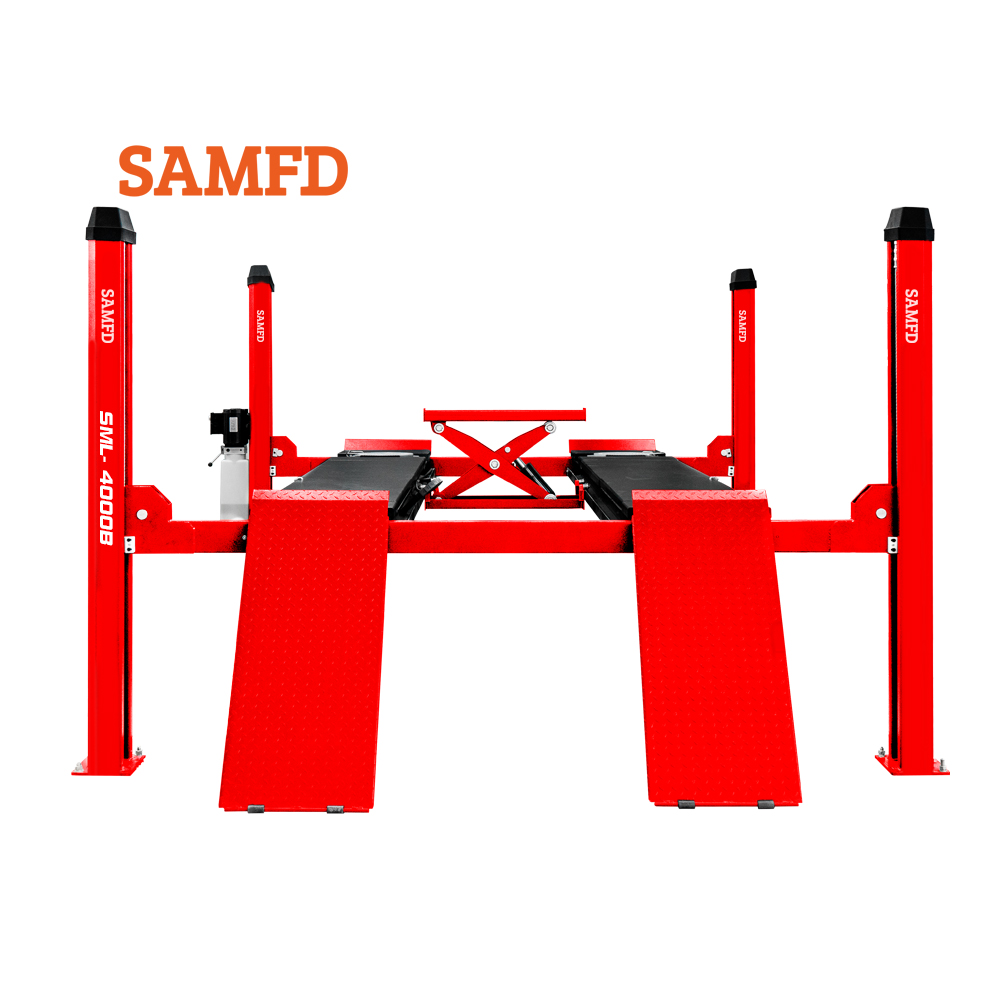

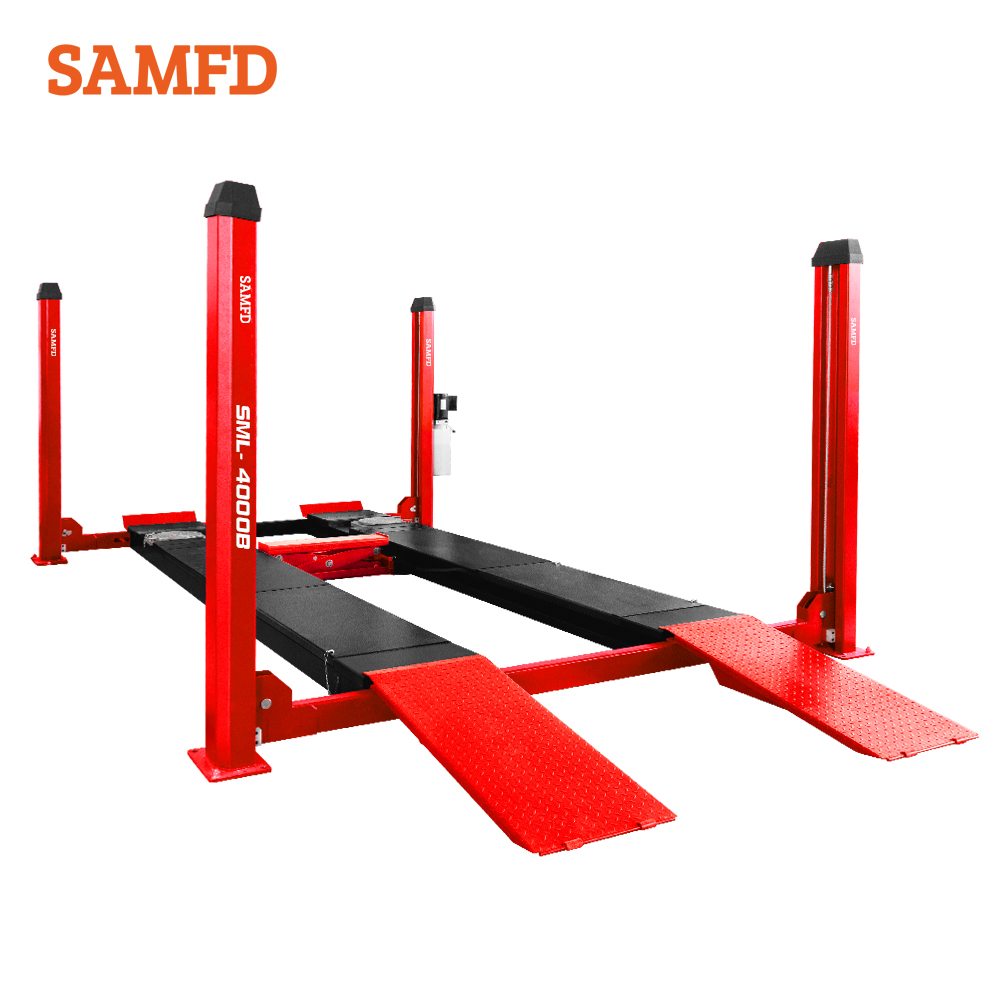

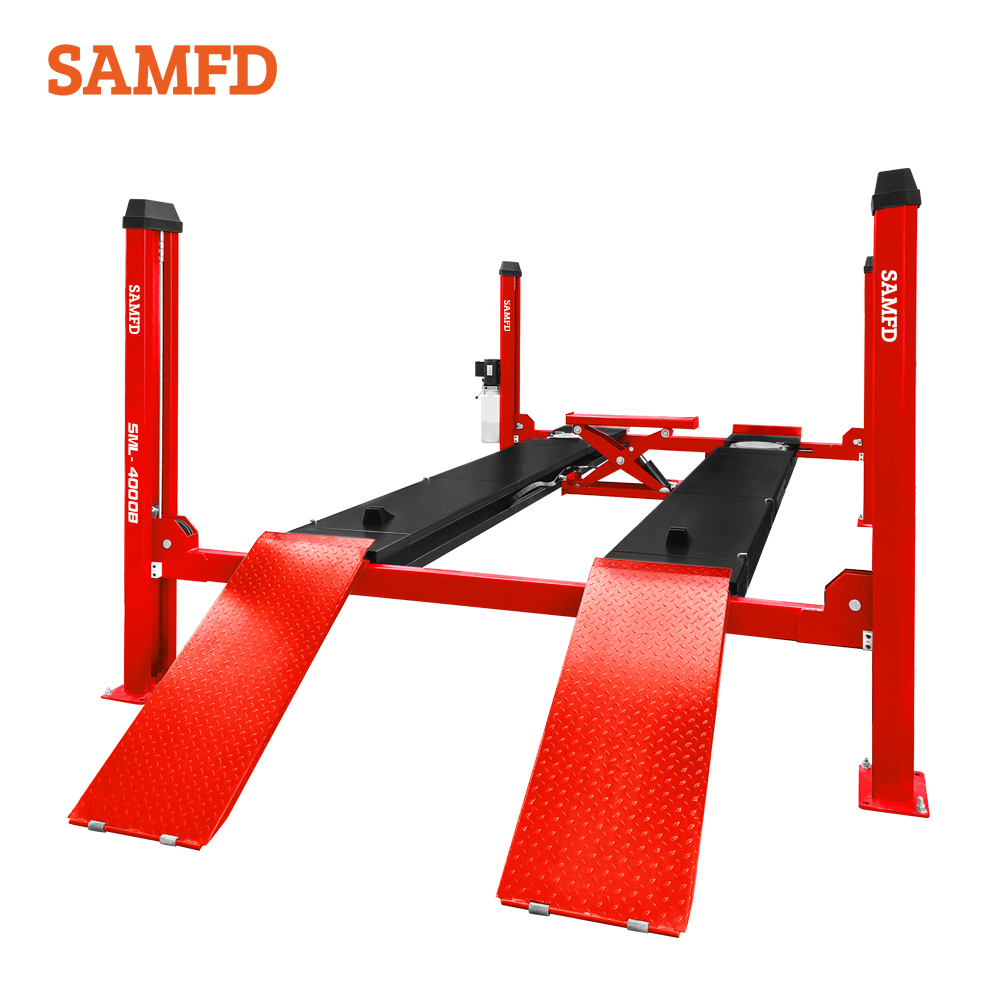

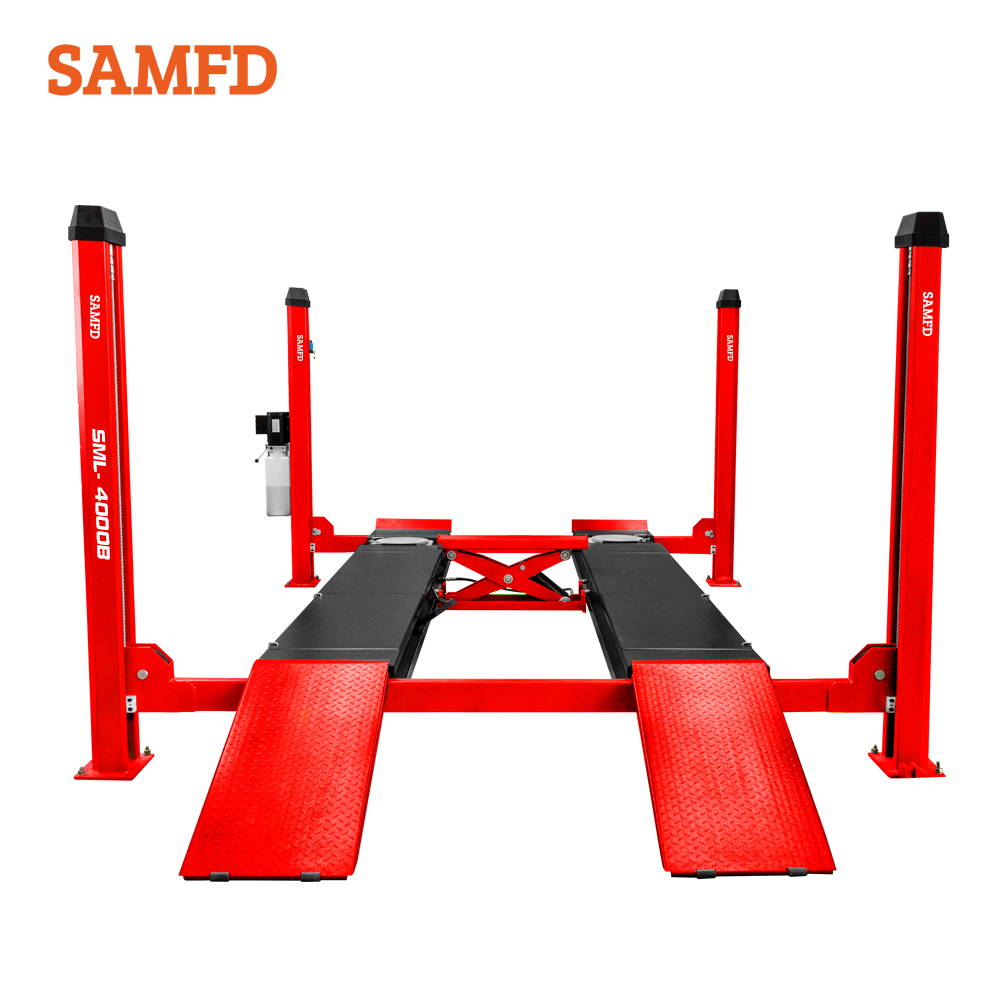

Post Car Lift CML-4000B

Parámetros del producto

PROJECT SML-4000B/5000B
Lifting Capacity 4000/5000kgs (8800/11000Ibs)
Lenght of Platform 4200/4500/5000mm (165.35"/177.17"/196.85")
Width of Platform 550mm (21.65")
Lifting Height 1600mm (62.99")
Secondary Jack 470mm(18.50")
Lifting Time 37s
Motor Power 2.2kW
Voltage 220/240/380/415V

* Note: Technical parameters updated & adjusted as to market demand without prior notice

Descripción del producto

1. Electric and manual unlocking methods are adopted. Manual unlocking device makes the four pillars locked at the same time, more safe and convenient.

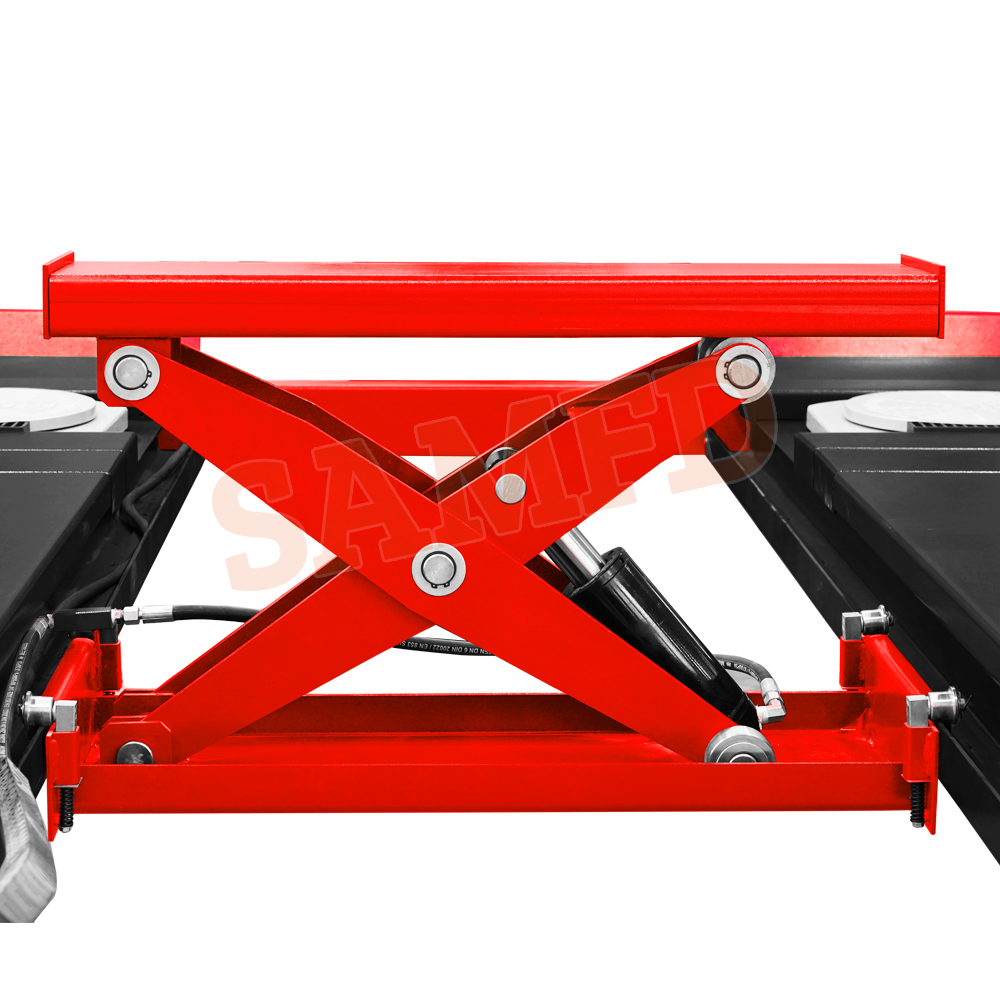

2. With the secondary lift. Lifting height 470mm, smooth lifting, free sliding, suitable for adjusting and repairing tires.

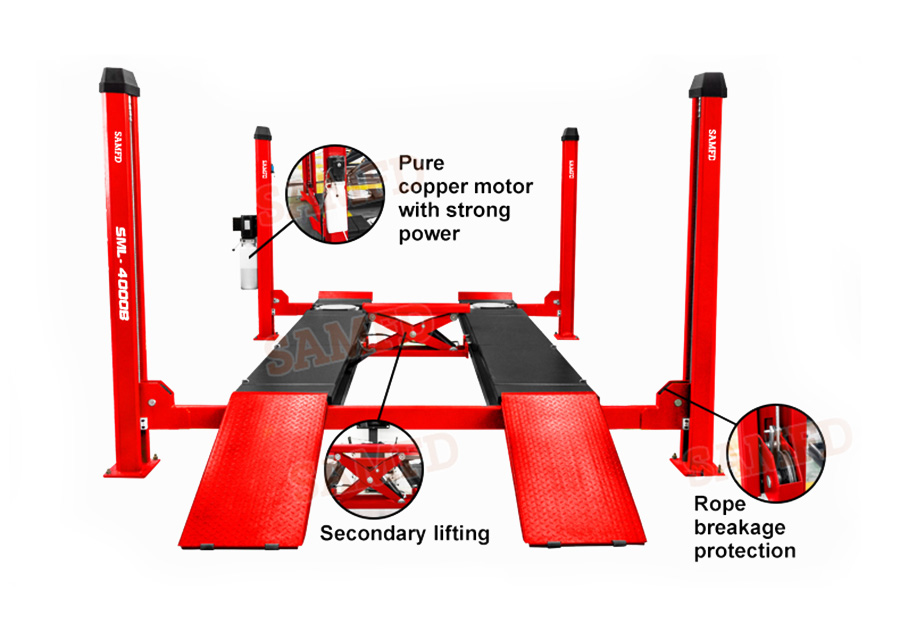

3. Pure copper motor, strong power.The electro-hydraulic system is powerful, durable, and dissipates heat more quickly to maximize work efficiency.

4. Simple and reliable design, easy to install on site, low basic requirements.

5. The platform spacing can be adjusted to accommodate vehicles with different tire spacing.

6. Reinforced arm for safer lifting. The stress point is reinforced with multiple reinforcement plates, which is safe and reliable.

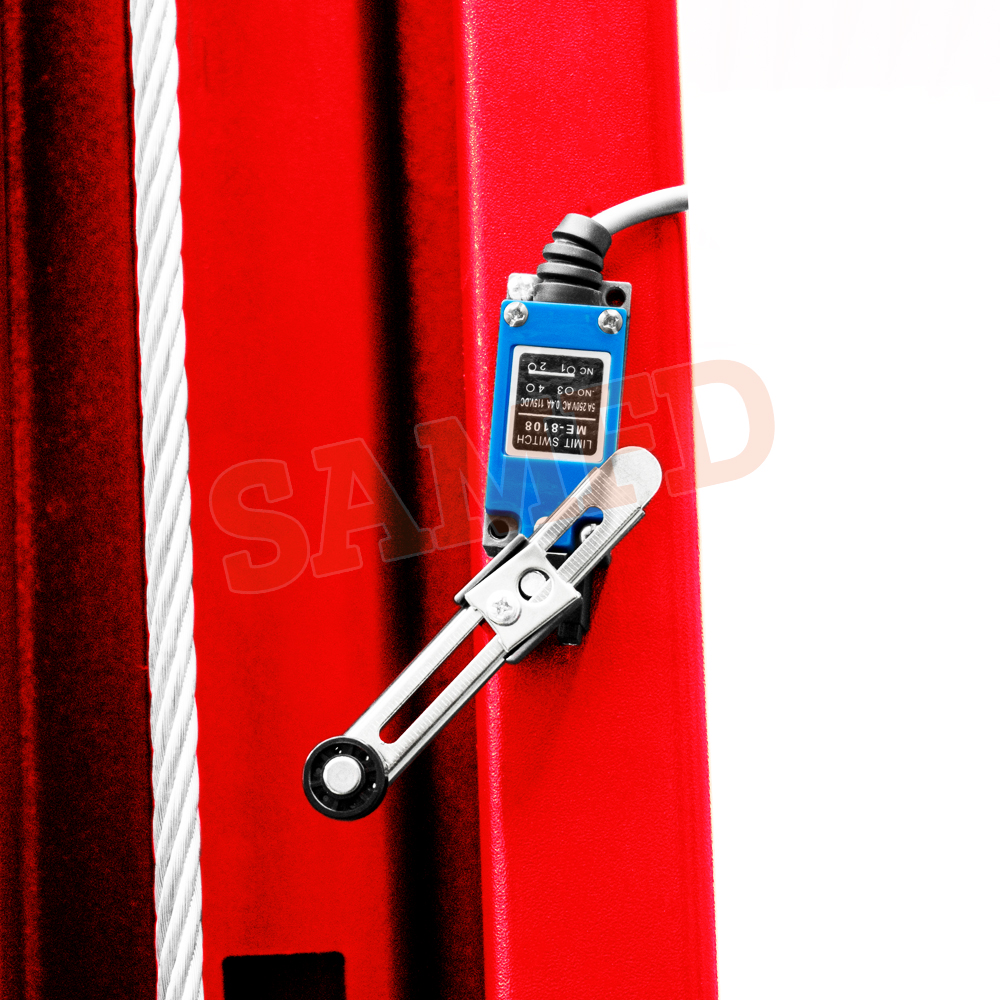

7. Height limit device.Automatically stop the equipment when lifting to the highest height to prevent accidents.

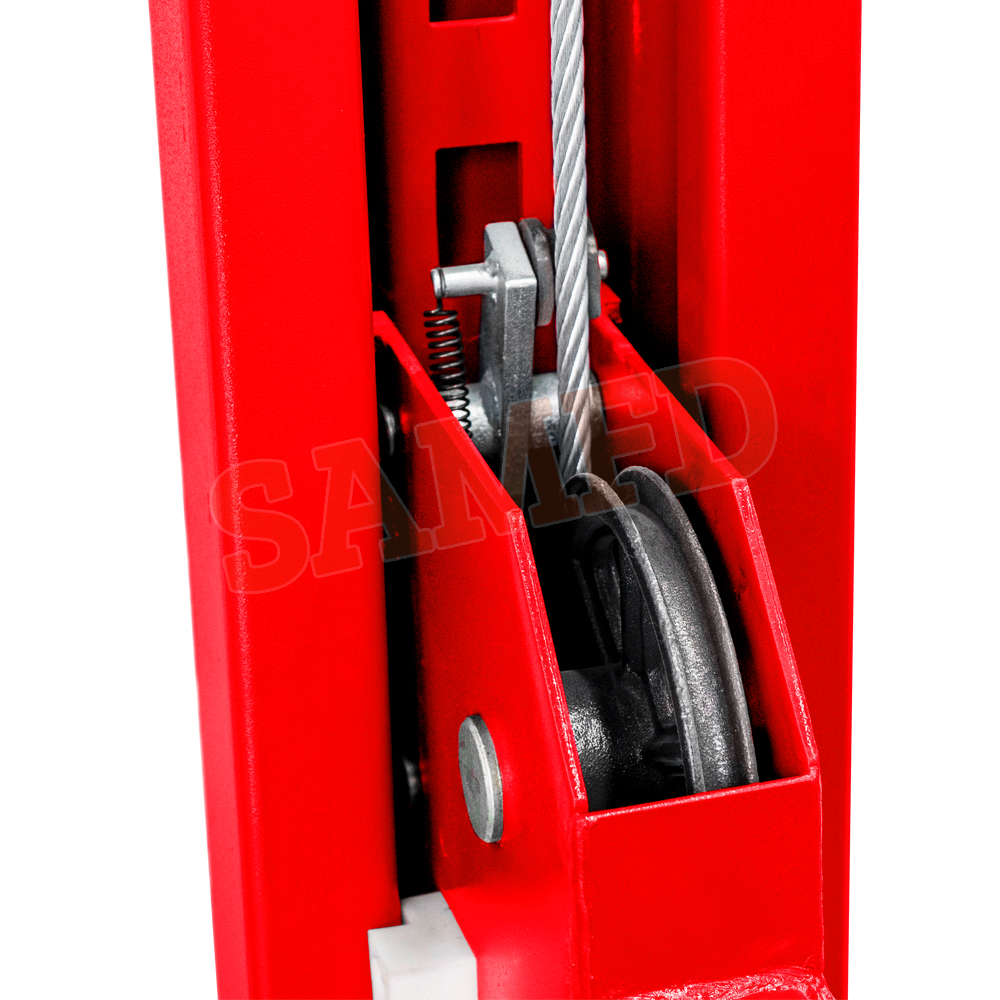

8. 2.2kw high-power motor driven by high-precision hydraulic cylinder, wire rope drive, smooth lifting, simple operation, less failure, safe and reliable.

9. ISO9001,CE certification.

Detalles del producto

Details

Details

Details

Details

Details

Details

Details

Details

Fotos reales del producto

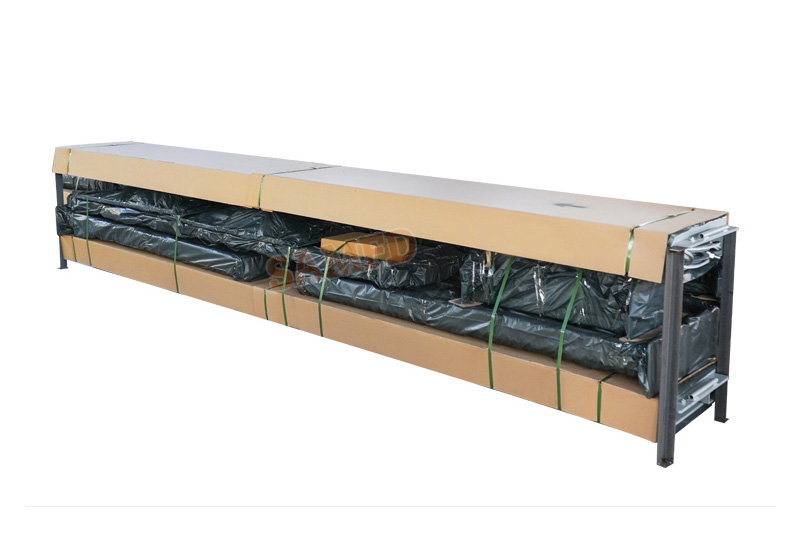

CML-4000B-7

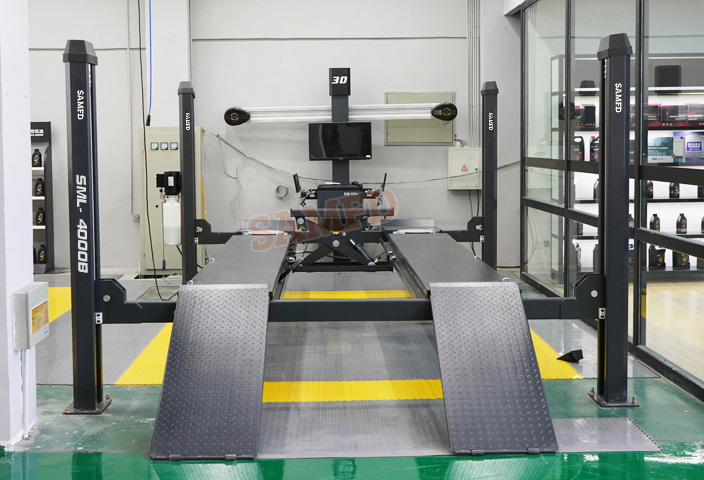

CML-4000B-6
CML-4000B-5

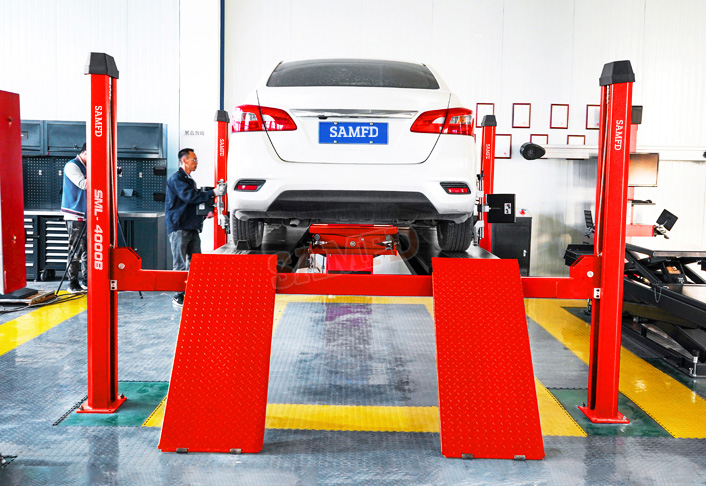

CML-4000B-4

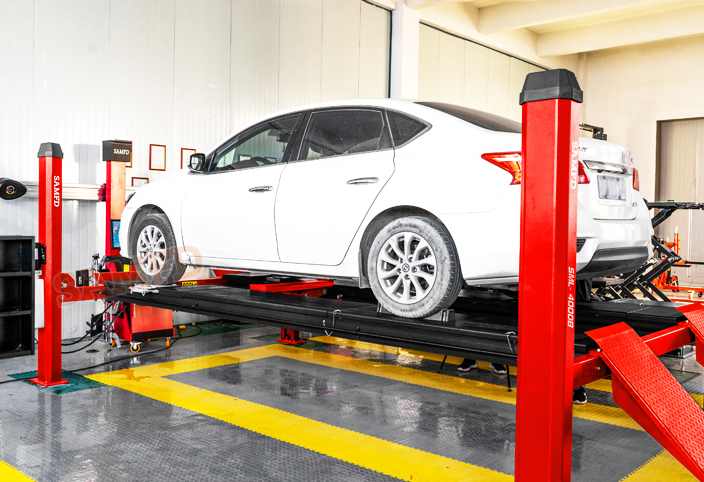

CML-4000B-3

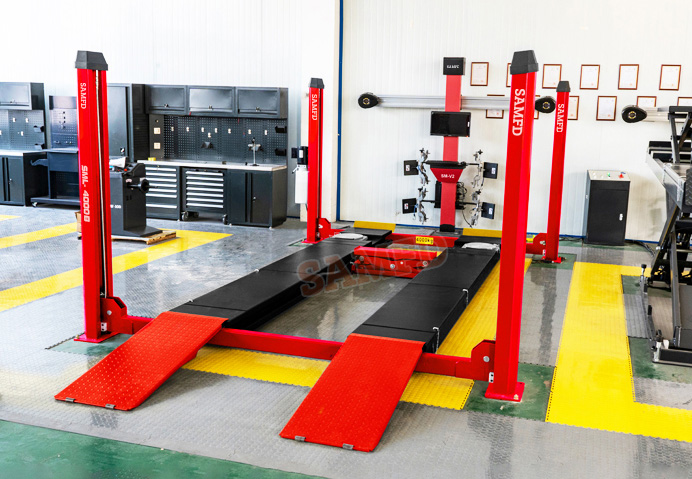

CML-4000B-2

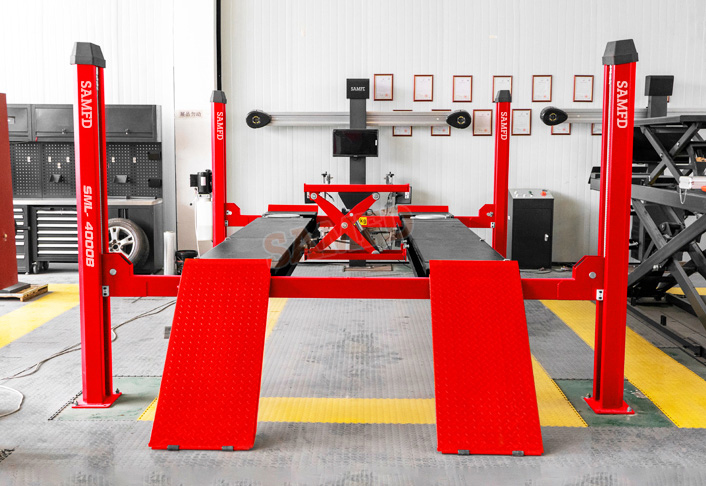

CML-4000B-1
