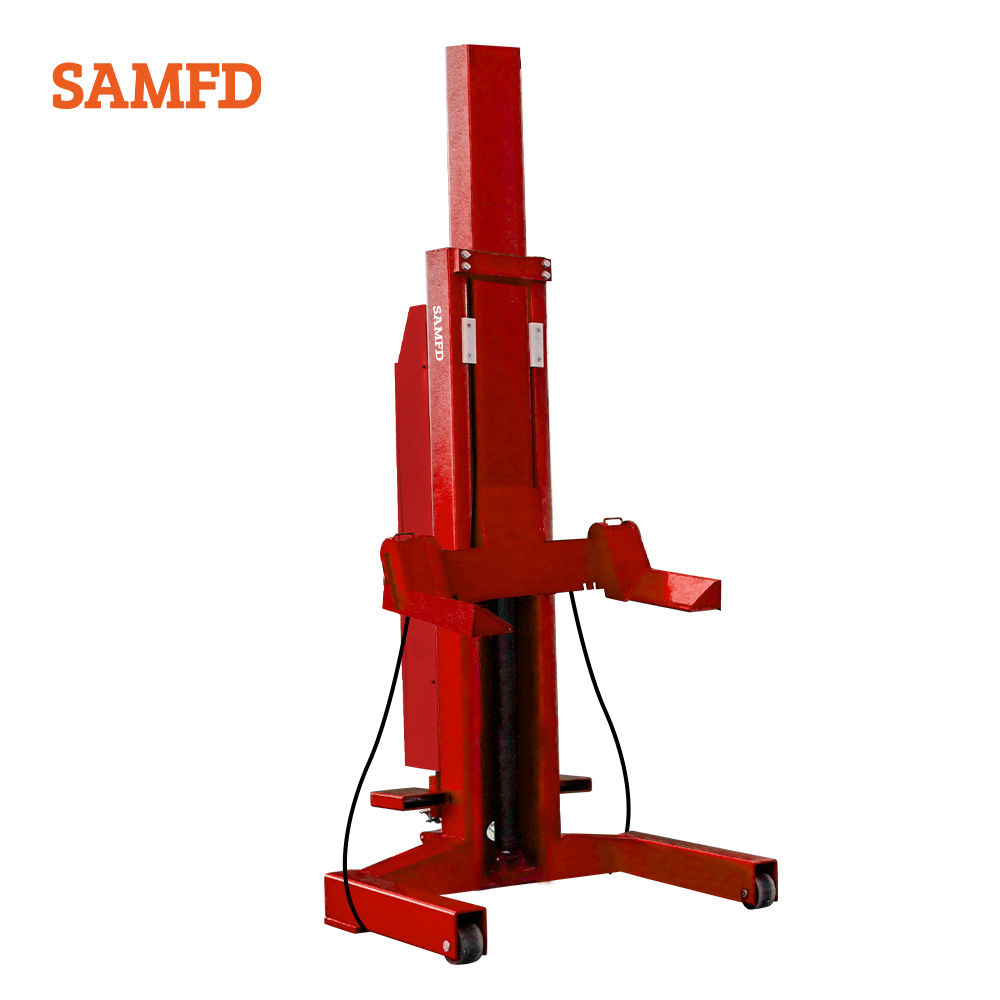

Wireless Mobile 4 Column Lift (SML-4B30)
The lifting unit can be combined into four or six pillars according to user needs;
Because the distance between the front and rear of the column can be moved and adjusted according to the length and width distance of the vehicle, it is suitable for more vehicles;
- Whatsapp/Wechat/Teléfono: +86-18865587388
- Correo electrónico: info@samfdequipment.com

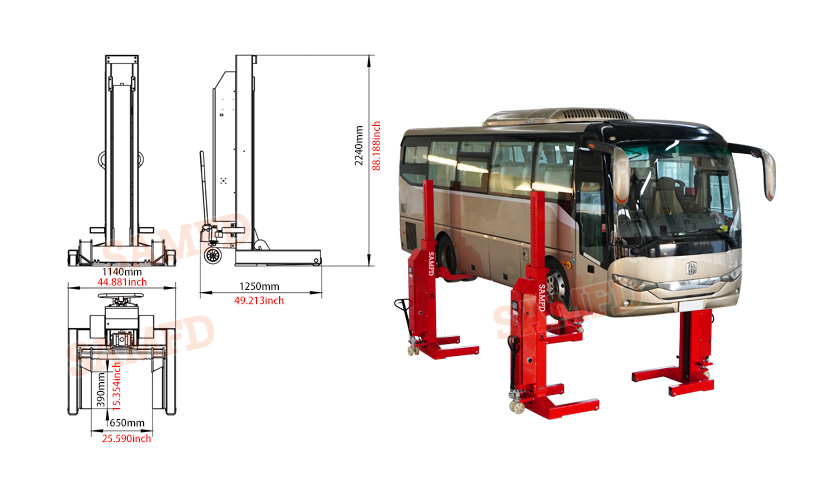

Parámetros del producto
| PROJECT | SML-4W30/4B30 |
| Lifting Weight | 30t (66000lbs) |
| Single Column Lifting Weight | 7.5t (16500lbs) |
| Lifting Height | 1750mm (68.90") |
| Operating Method | Touch Screen + Buttons |
| Cylinder Inner Diameter | 100mm (3.94") |
| Lifting Speed | 900mm/min |
| Drive Mode | Hydraulically Powered |
| Work Pressure | 16MPa |
| Voltage | 380V |
| Communication Mode | Dual Channel Radio Analog Communication |
| Sefety Construction | Mechanical Lock+Explosion-Proof Valve |
| Motor Power | 4*2.2kW |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Descripción del producto
1. The lifting unit can be combined into four or six pillars according to user needs;
2. Because the distance between the front and rear of the column can be moved and adjusted according to the length and width distance of the vehicle, it is suitable for more vehicles;
3. The lifting bracket adopts built-in guidance, and each column adopts a Separate hydraulic mobile car. One person can easily move the lifting machine to the desired position, with flexible and light-weight operation;
4. The power supply voltage of the equipment is 110V/220V/380V(Free customization)with phase sequence protection and phase loss protection, ensuring safe and reliable use;
5. Cross beam passenger/cargo type for easy maintenance and tire replacement etc., Optional safety assistance support is also available.
6. User-defined settings, such as language selection, security warnings, regular maintenance ;

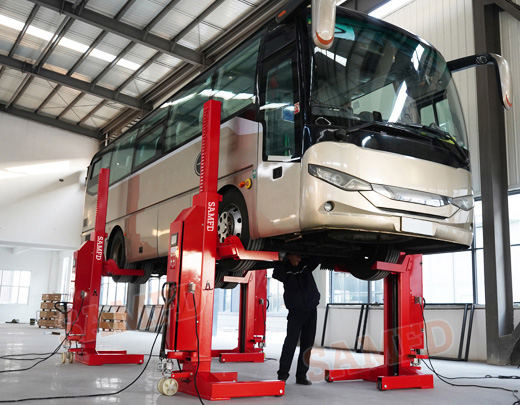

7. Suitable for lifting and maintenance of bus, trucks and Specialized vehicles under 30 tons Heavy duty lifting capacity.
Detalles del producto

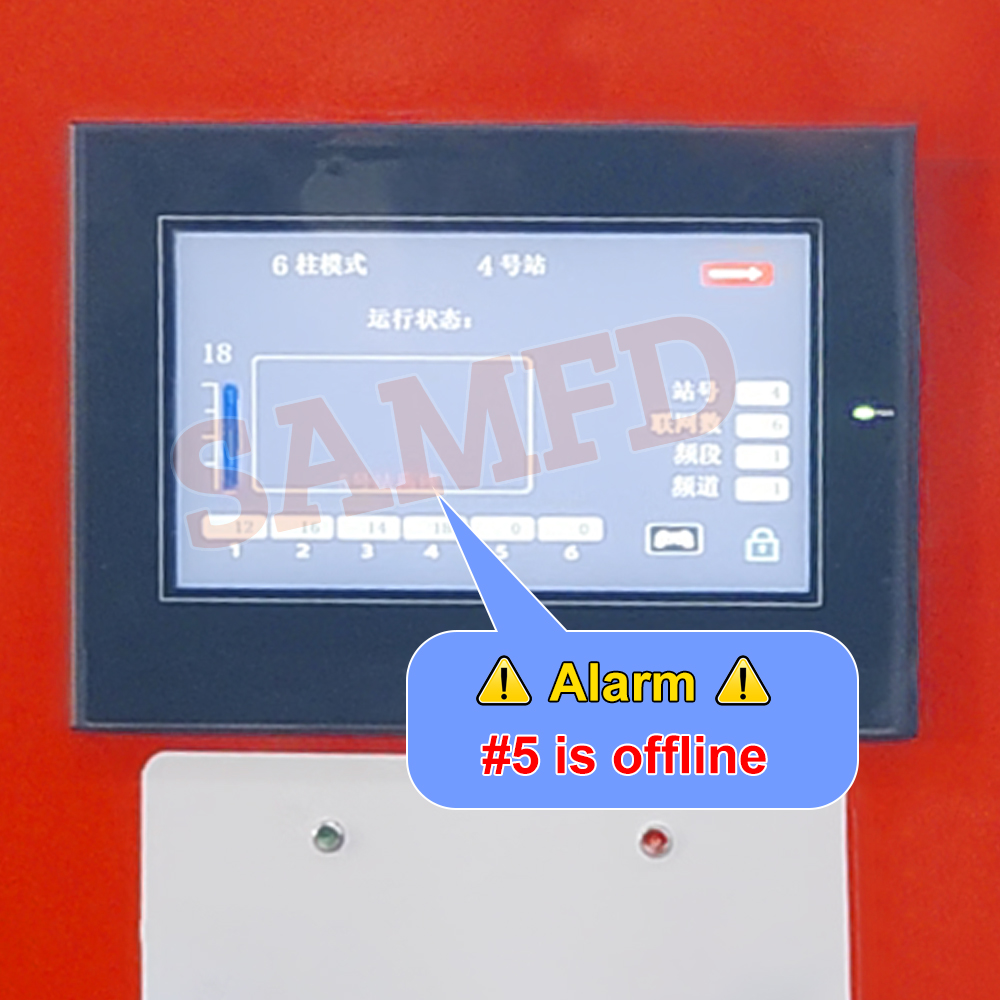

FAULT SELF DIAGNOSIS FUNCTION
The displacement of each column lifting frame is severely out of tolerance or the column power supply fails, the lifting equipment automatically stops and levels the lifting height

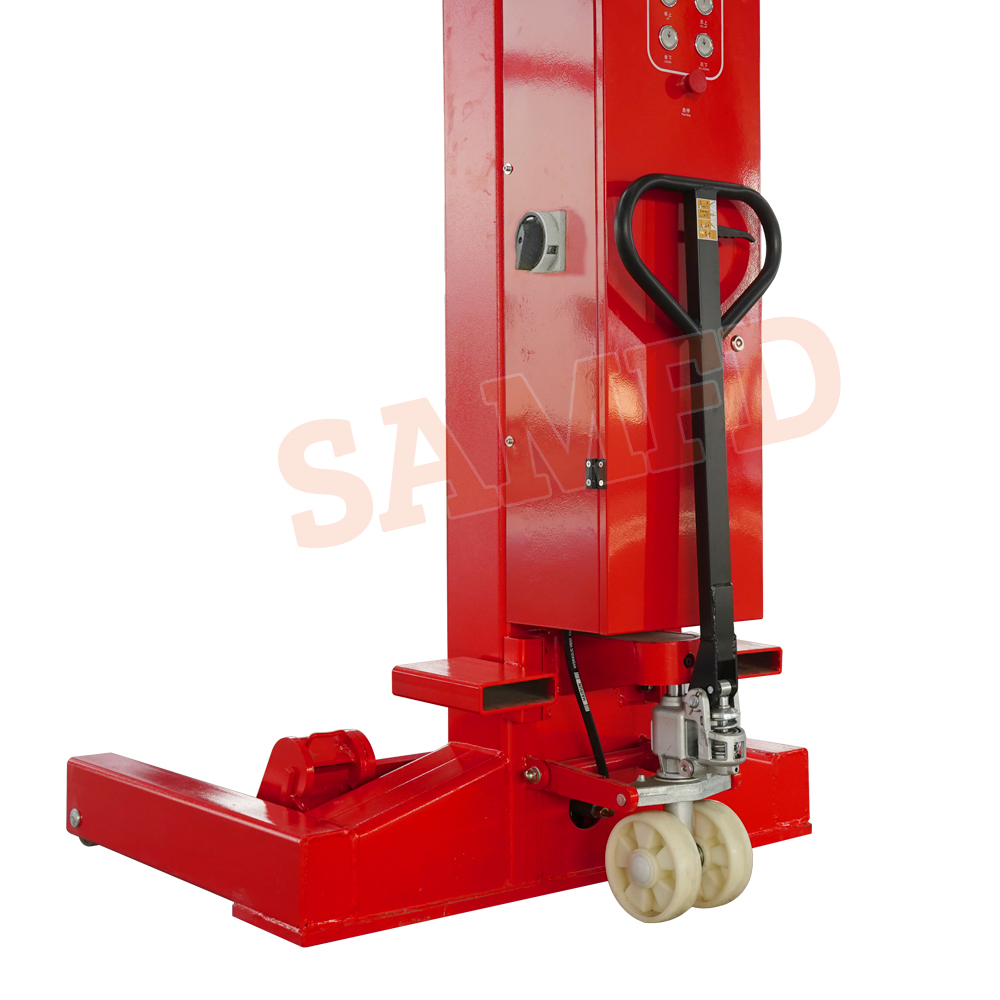

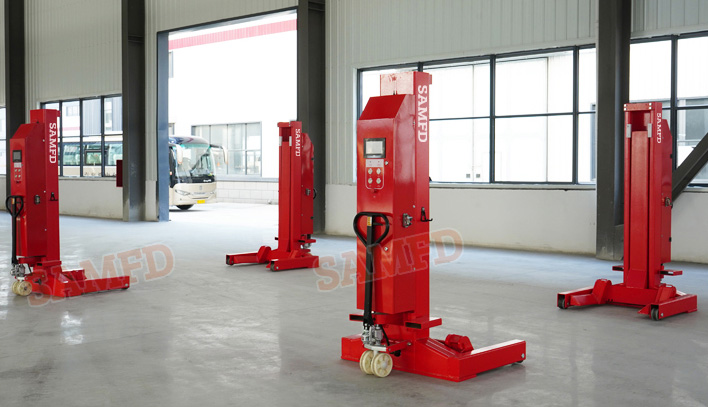

LIGHT WEIGHT MECHANICAL DESIGN EASY TO PUSH
Easy to move, can be moved throughout the plant, indoor and outdoor can be used, storage space is small, to improve the utilization of space.
Made of high-strength manganese steel, strong and durable

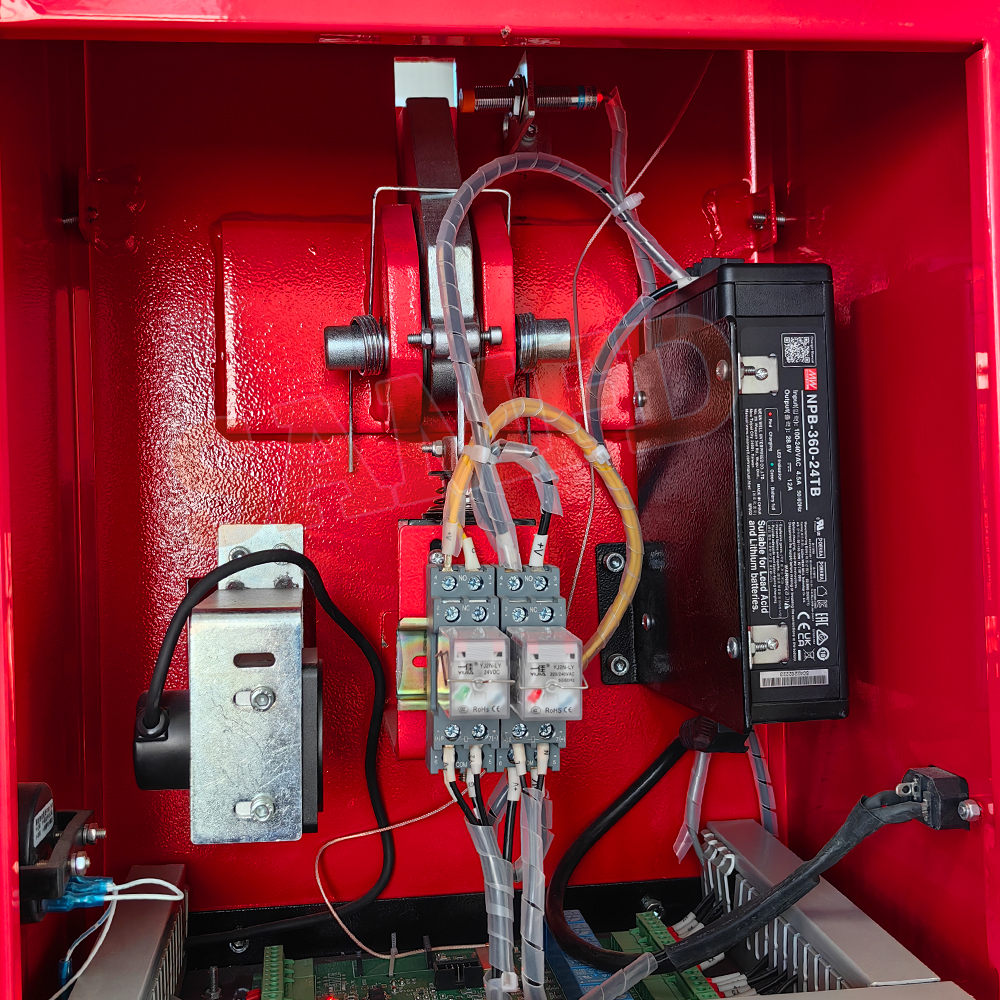

Mechanical/hydraulic double locking, automatic overload protection, equipped with an upper limit switch for automatic shutdown at highest/lowest

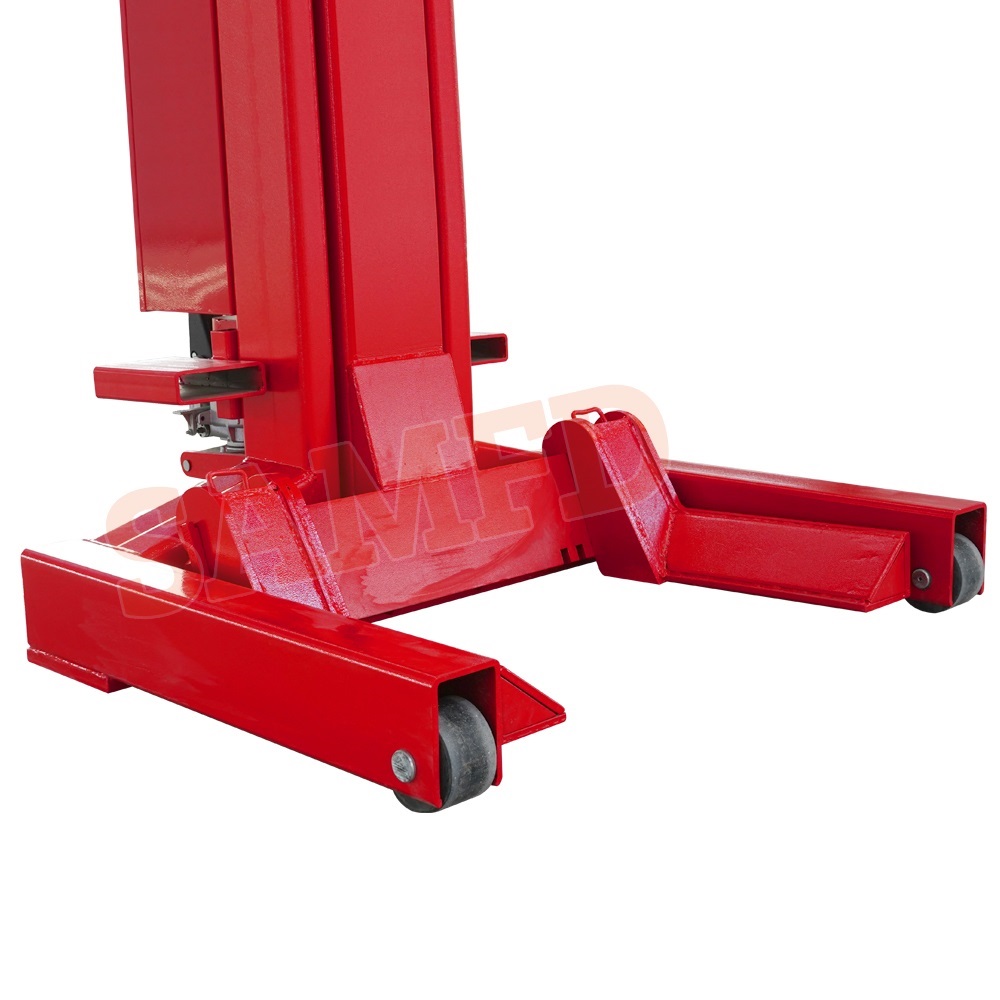

HIGH STRENGTH BRACKET ARM
Made of high-strength manganese steel, strong and durable

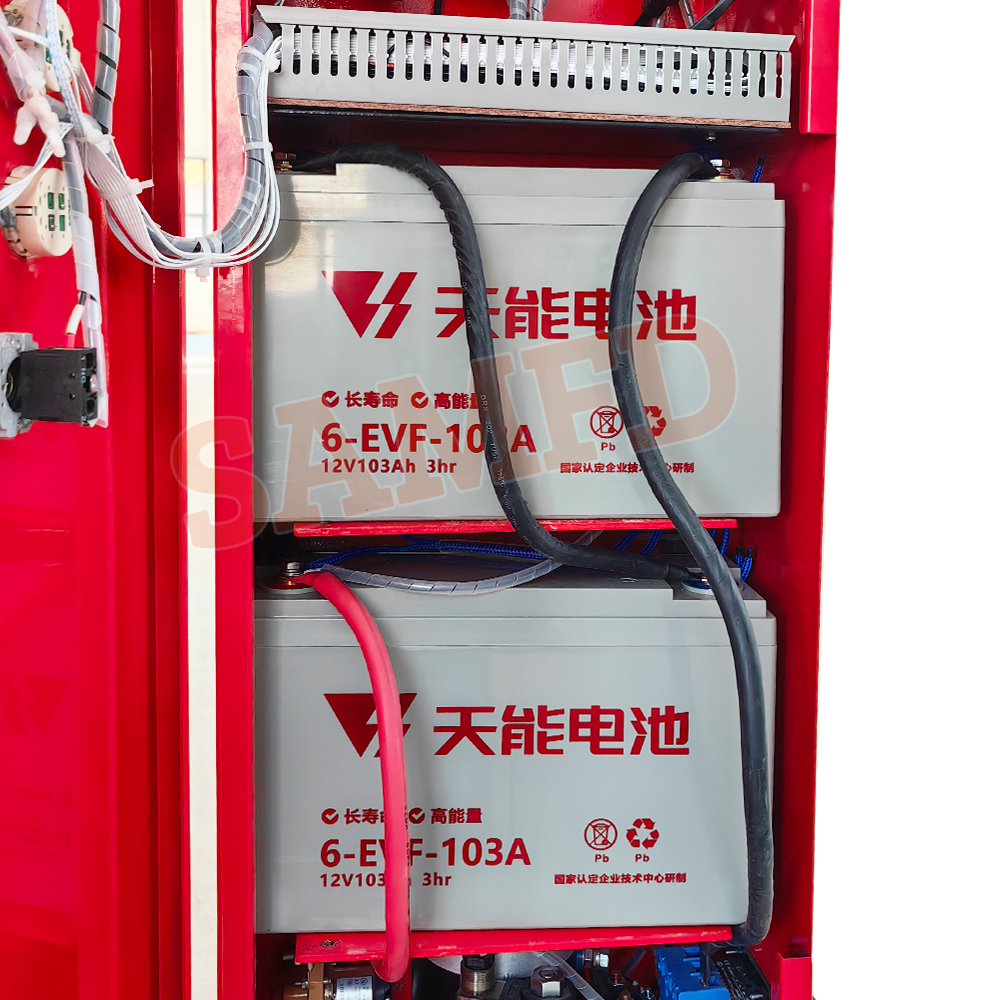

BUILT IN RECHARGEABLE BATTERY
Easy to charge, not limited by location.

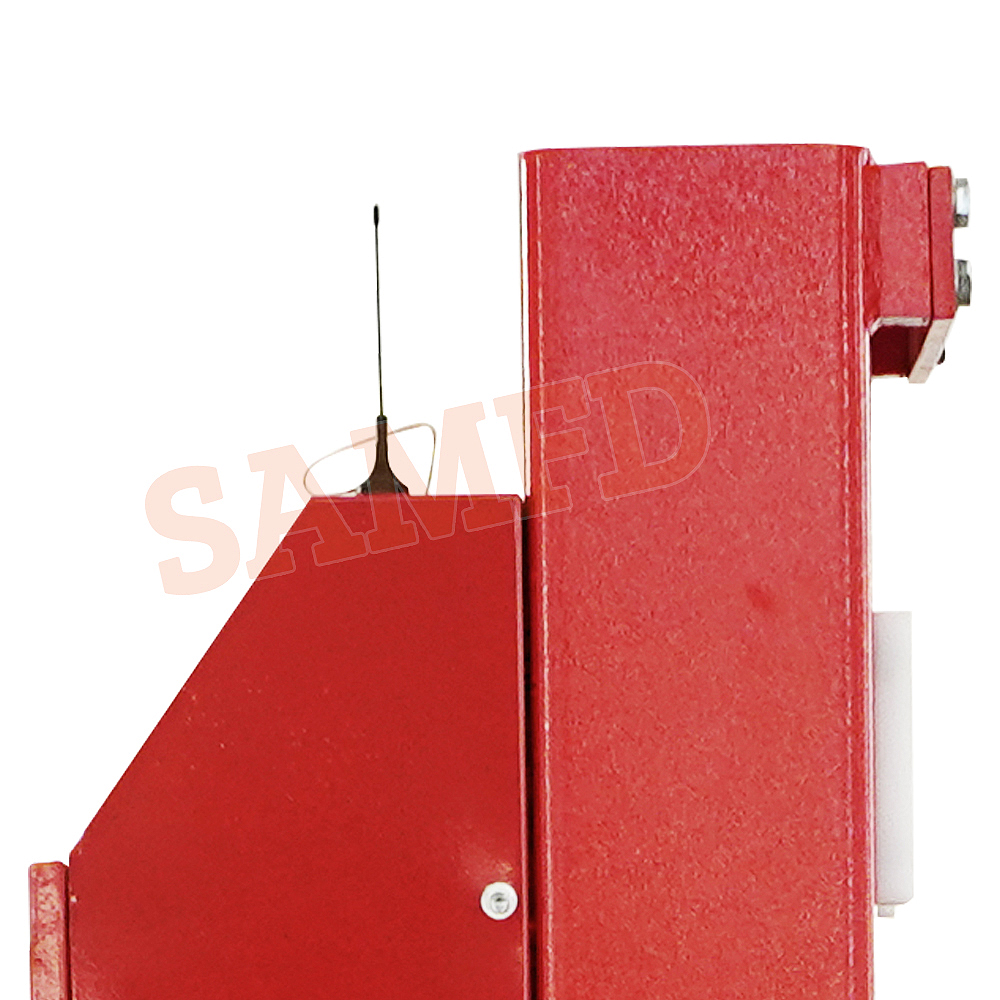

STABLE WIRELESS TRANSMISSION SIGNAL
Communication distance can be more than 100 meters.There are 32 communication channels,which can work at the same site with multiple sets at the same time without interfering with each other.

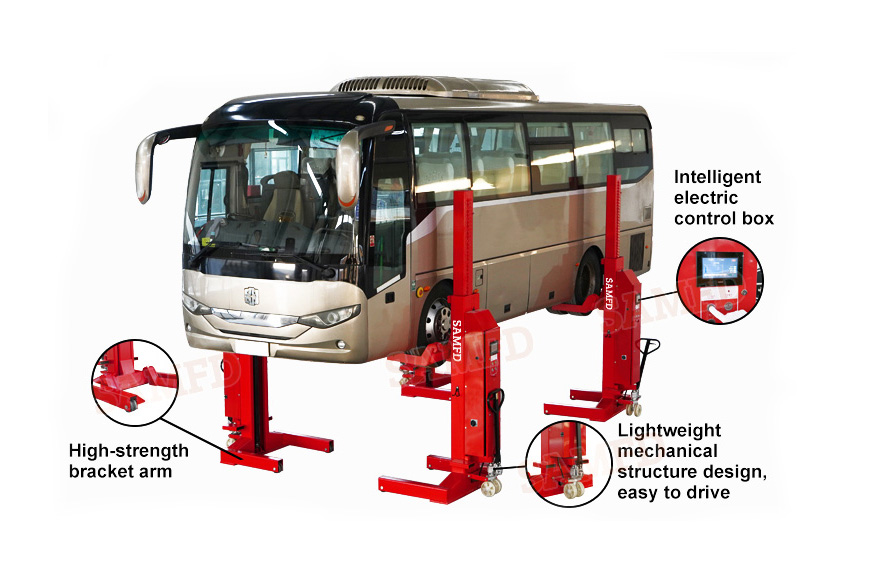

INTELLIGENT ELECTRIC CONTROL BOX
Intelligent electric control box is easy and convenient to operate. Each column is equipped with a colorful touch display with rich functions.

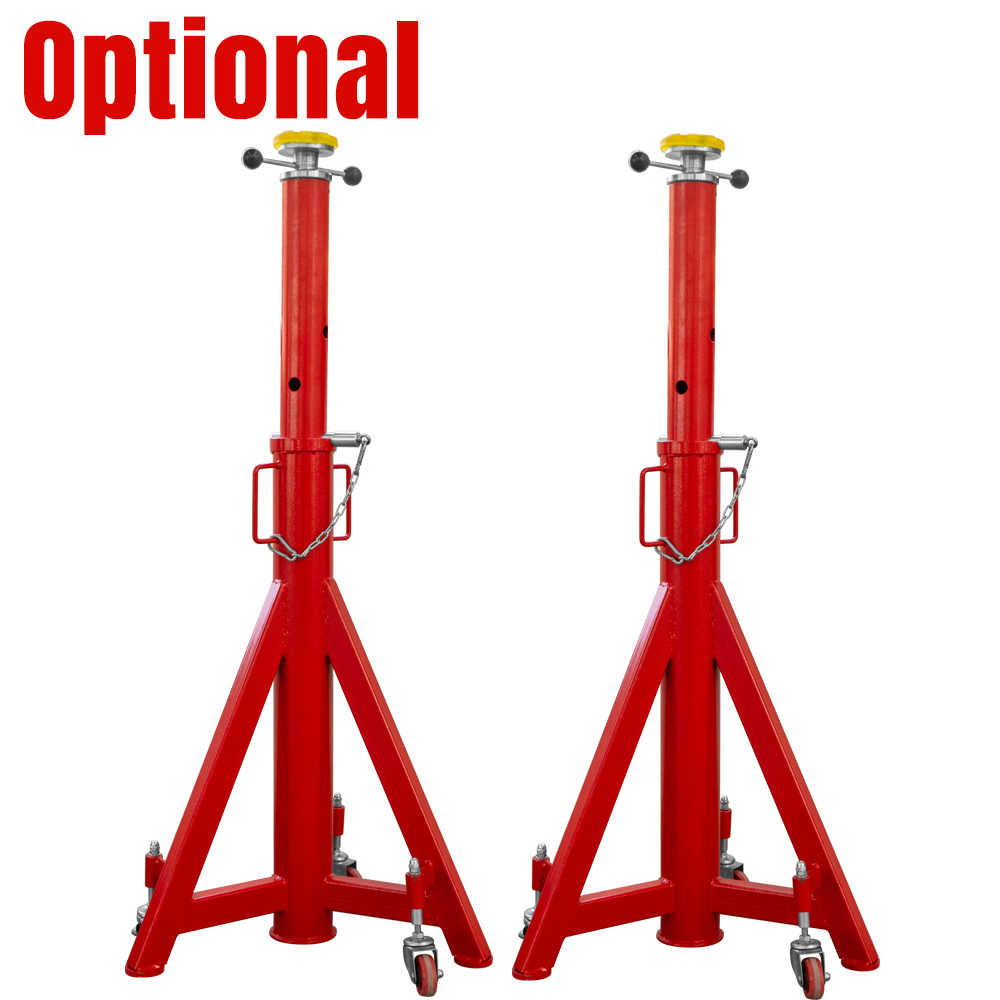

Heavy duty advanced safety bracket (optional)
Thickened and reinforced safety bracket, easy to move and safer.
