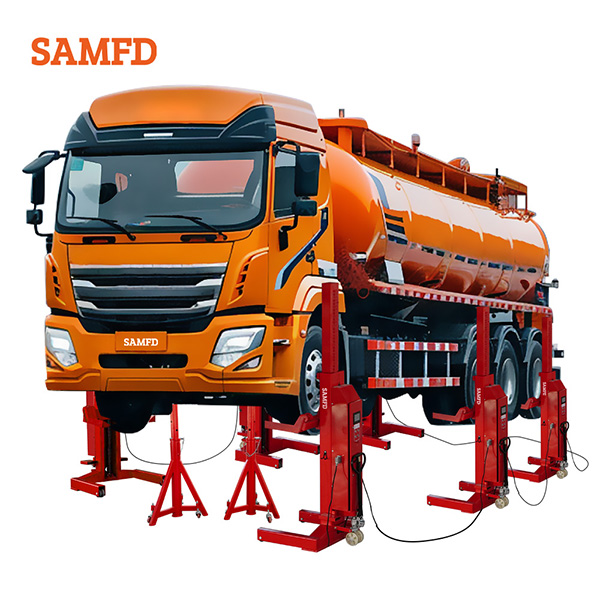

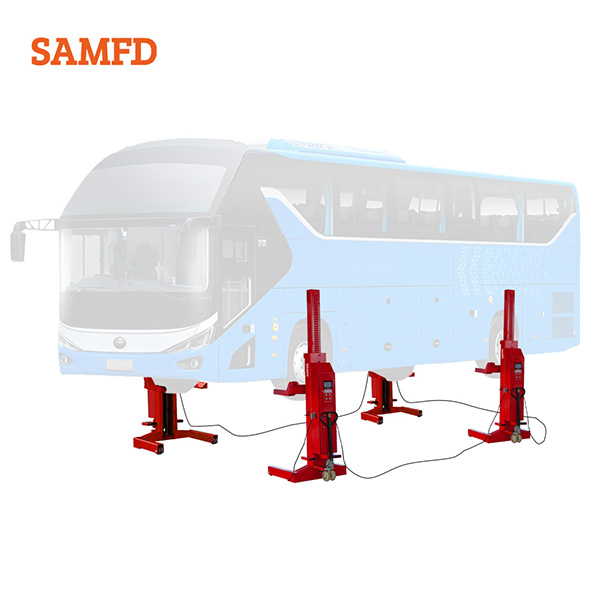

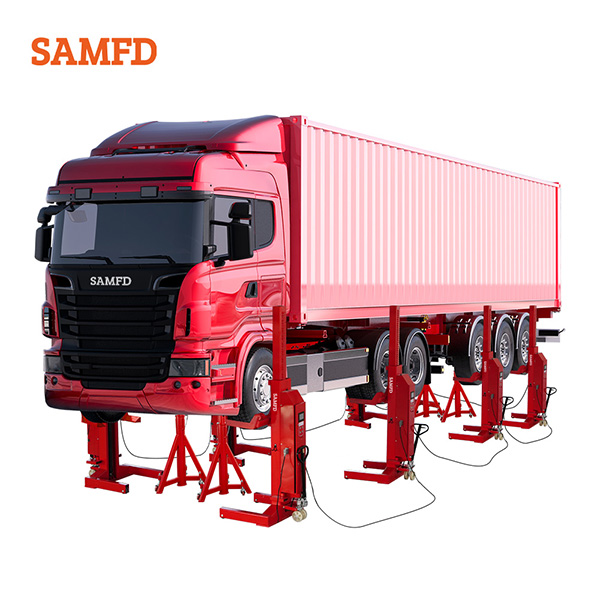

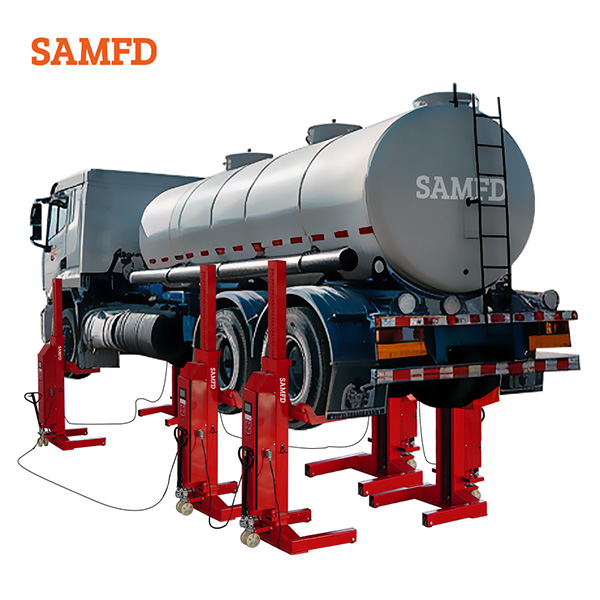

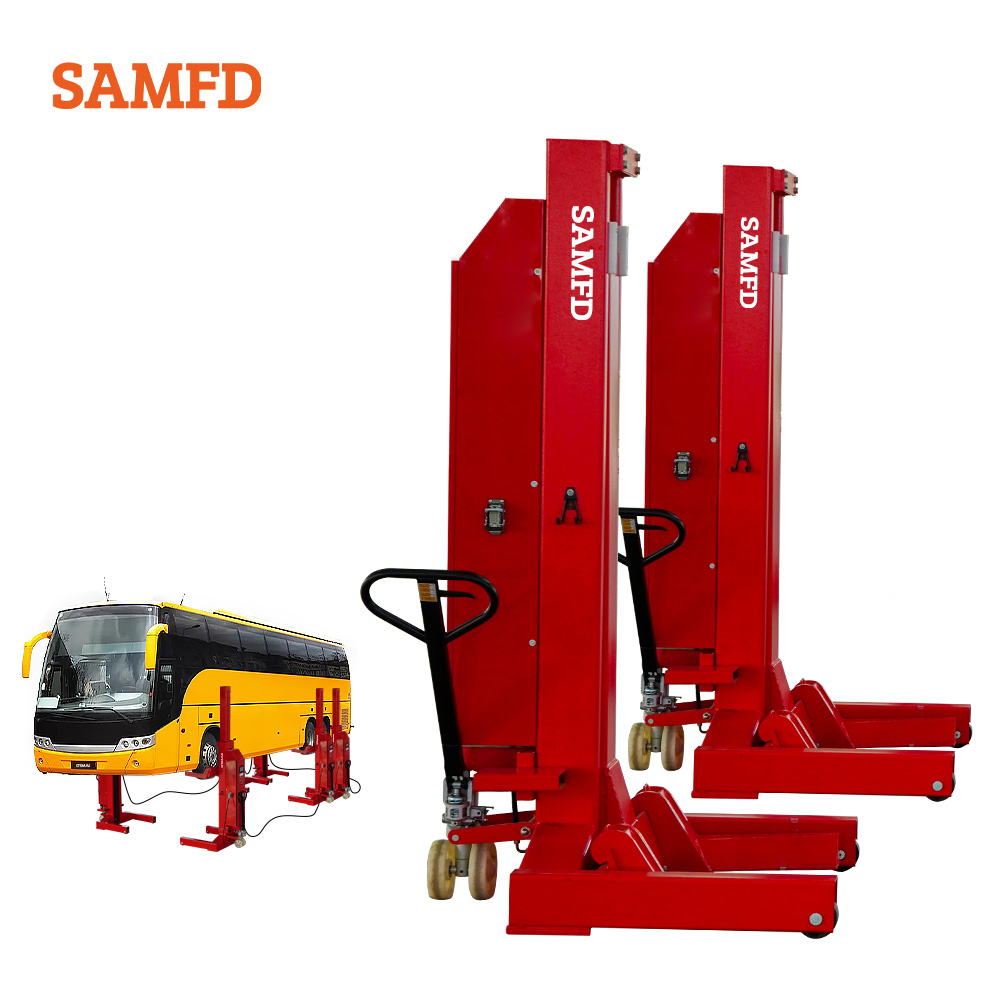

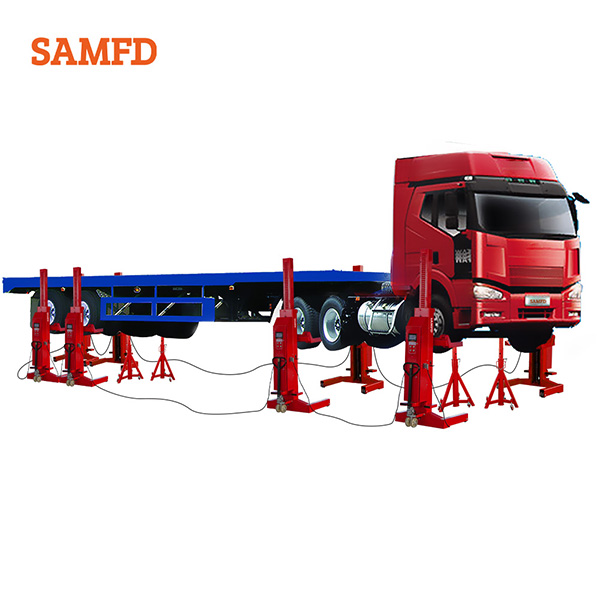

Wire Mobile 4 Column Lift (SML-4W30)
The lifting unit can be combined into four or six pillars according to user needs
Because the distance between the front and rear of the column can be moved and adjusted according to the length and width distance of the vehicle, it is suitable for more vehicles .
- Whatsapp/Wechat/Teléfono: +86-18865587388
- Correo electrónico: info@samfdequipment.com
Parámetros del producto
| PROJECT | SML-4W30/4B30 |
| Lifting Weight | 30t (66000lbs) |
| Single Column Lifting Weight | 7.5t (16500lbs) |

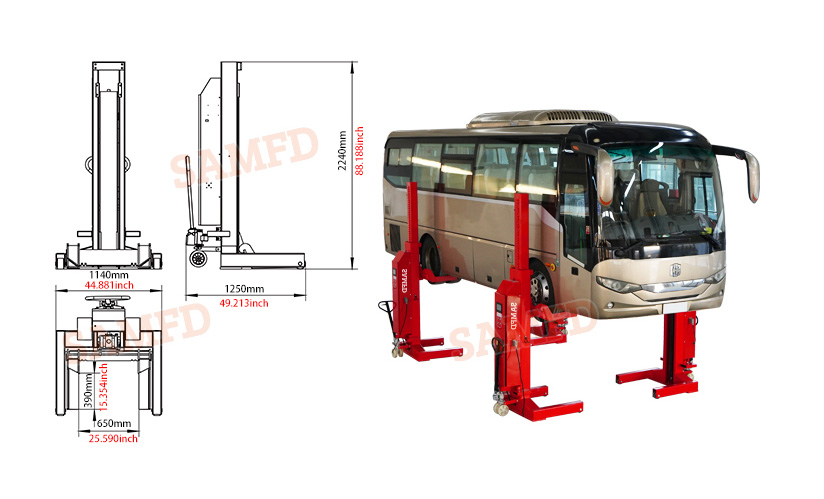

| Lifting Height | 1750mm (68.90") |
| Operating Method | Touch Screen + Buttons |
| Cylinder Inner Diameter | 100mm (3.94") |
| Lifting Speed | 900mm/min |
| Drive Mode | Hydraulically Powered |
| Work Pressure | 16MPa |
| Voltage | 380V |
| Communication Mode | Dual Channel Radio Analog Communication |
| Sefety Construction | Mechanical Lock+Explosion-Proof Valve |
| Motor Power | 4*2.2kW |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Descripción del producto
1. The lifting unit can be combined into four or six pillars according to user needs
2. Because the distance between the front and rear of the column can be moved and adjusted according to the length and width distance of the vehicle, it is suitable for more vehicles .
3. The lifting bracket adopts built-in guidance, and each column adopts a Separate hydraulic mobile car. One person can easily move the lifting machine to the desired position , with flexible and light-weight operation.
4. The power supply voltage of the equipment is 110V/220V/380V(Free customization)with phase sequence protection and phase loss protection, ensuring safe and reliable use.
5. Cross beam passenger/cargo type for easy maintenance and tire replacement.etc.;Optional safety assistance support is also available.
6. User-defined settings, such as language selection, security warnings, regular maintenance .

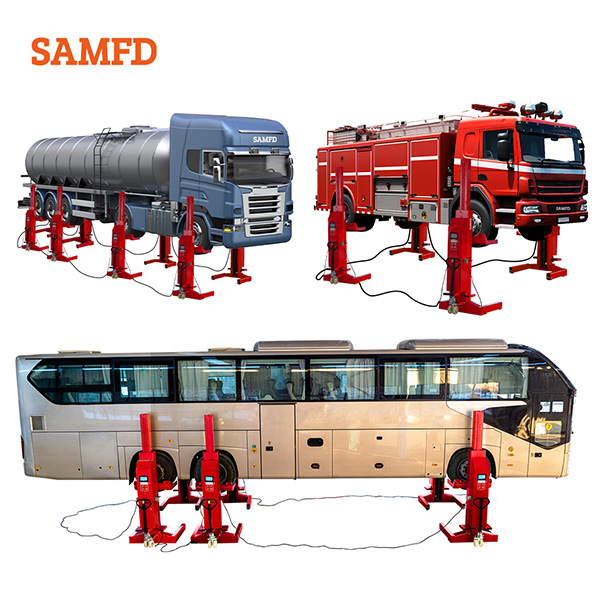

7. Suitable for lifting and maintenance of bus, trucks and Specialized vehicles under 30 tons Heavy duty lifting capacity.

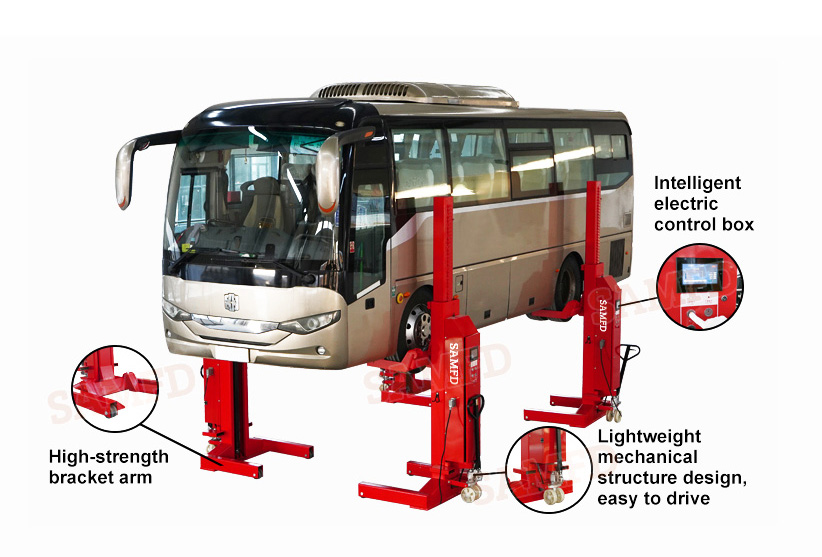

Detalles del producto

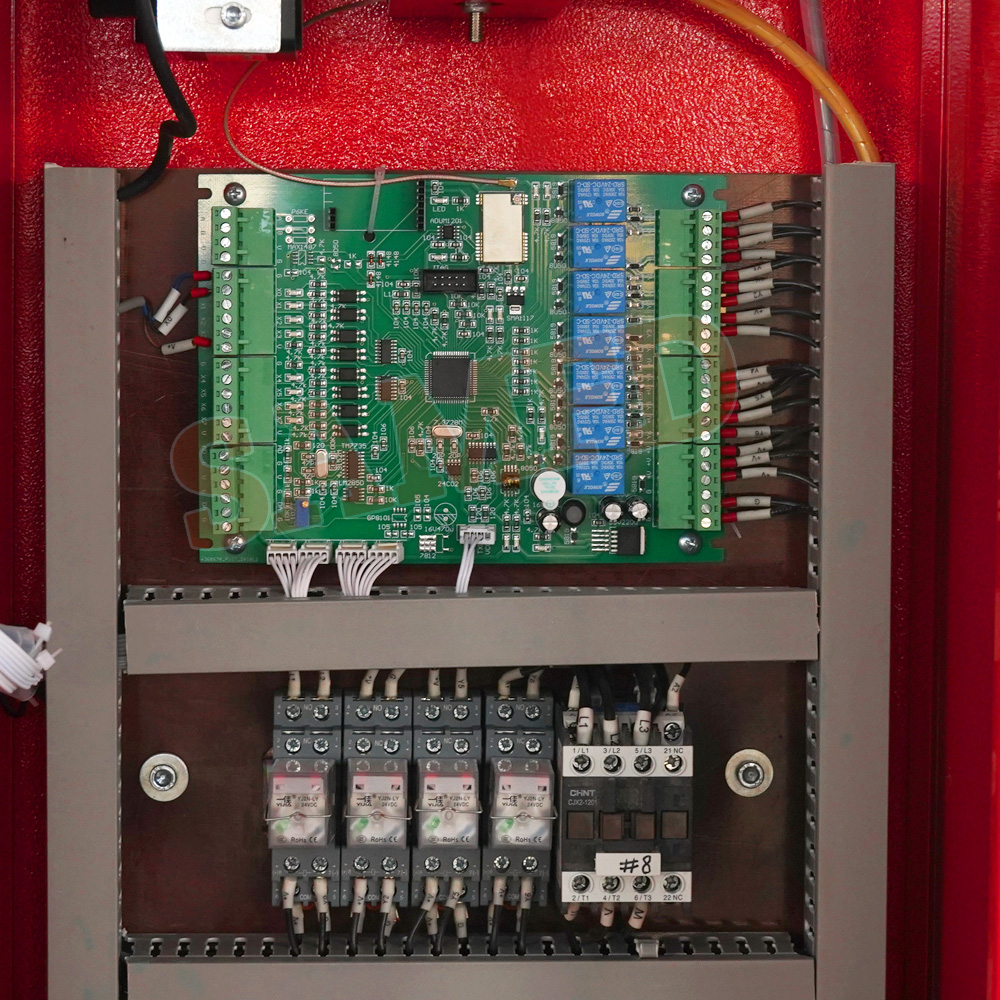

Intelligent electrical control box
The intelligent control box is easy and convenient to operate. Each column is equipped with a color touch screen display, feature-rich
Fault self diagnosis function
When each column lifting frame experiences severe displacement or power loss, resulting in inability to lift, the equipment will automatically stop and level the lifting height.

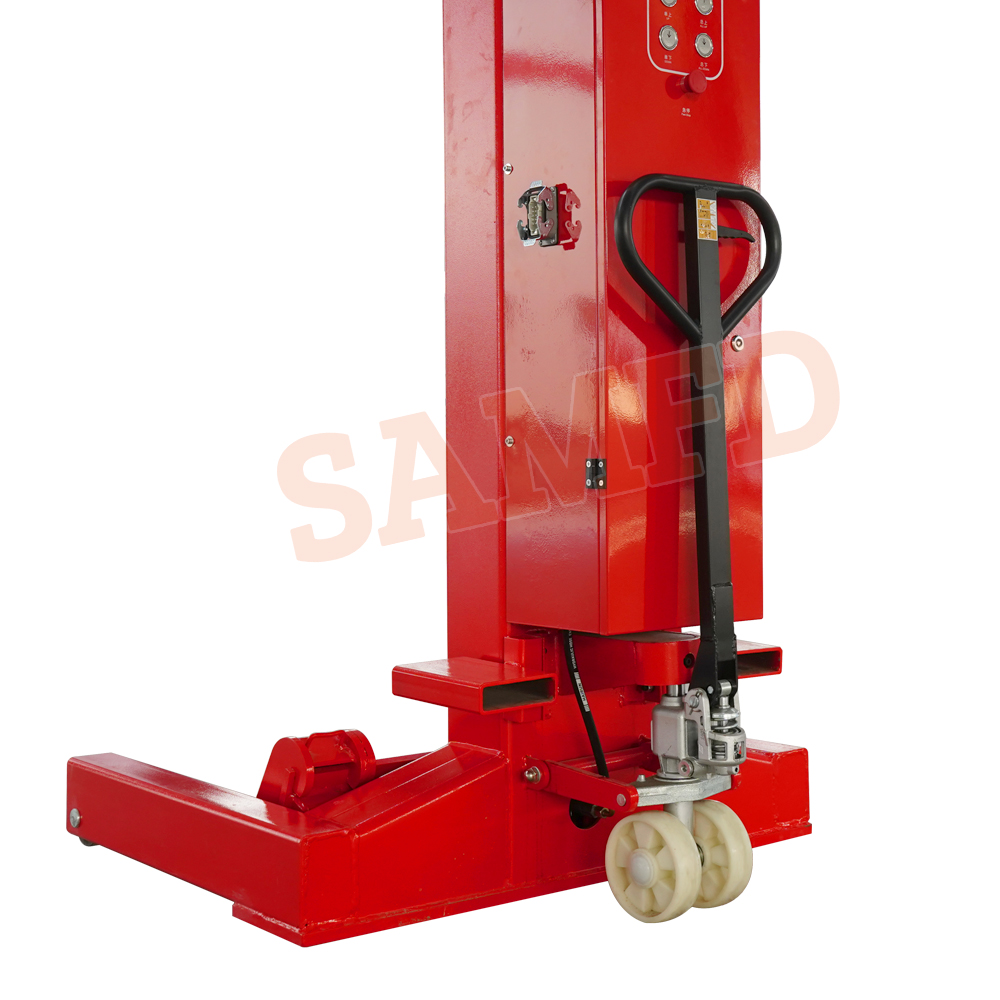

Lightweight mechanical design, easy to drive
Easy to move, can be moved throughout the factory, can be used both indoors and outdoors, has small storage space, and improves space utilization.

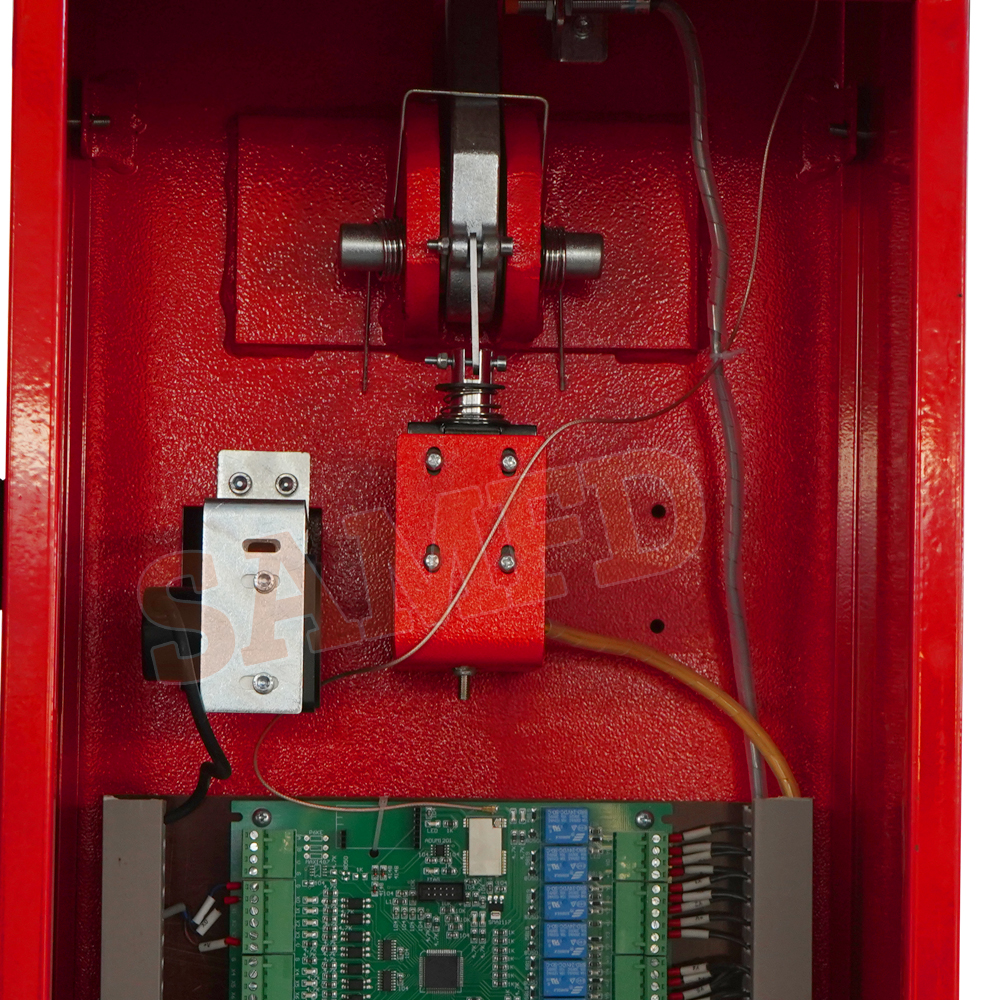

Multiple safety measures for mechanical and hydraulic locks
Mechanical/hydraulic dual locking, automatic overload protection, equipped with upper limit switch, automatic shutdown at highest/lowest position.

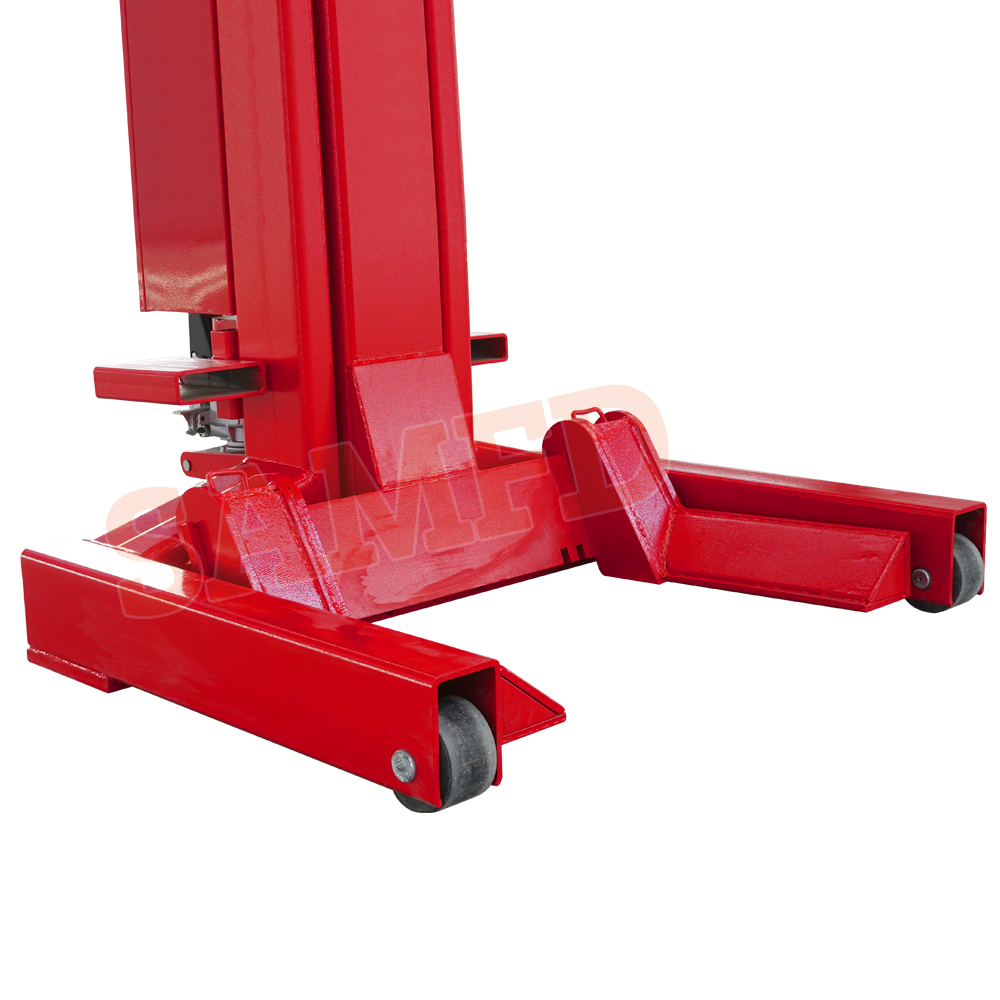

High strength bracket arm
Made of high-strength manganese steel, sturdy and durable.

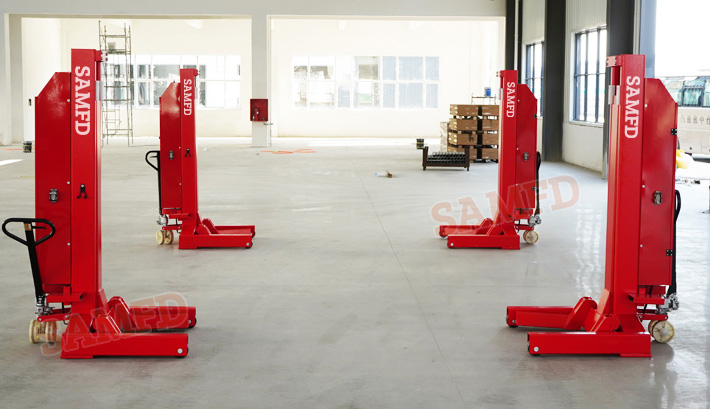

Fotos reales del producto
