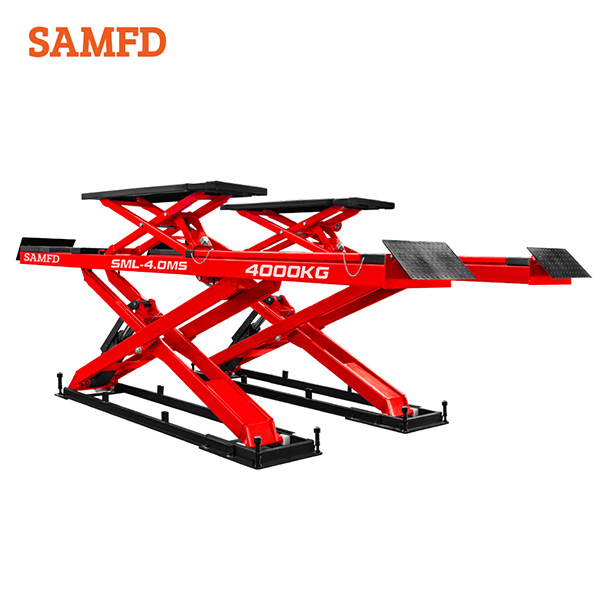

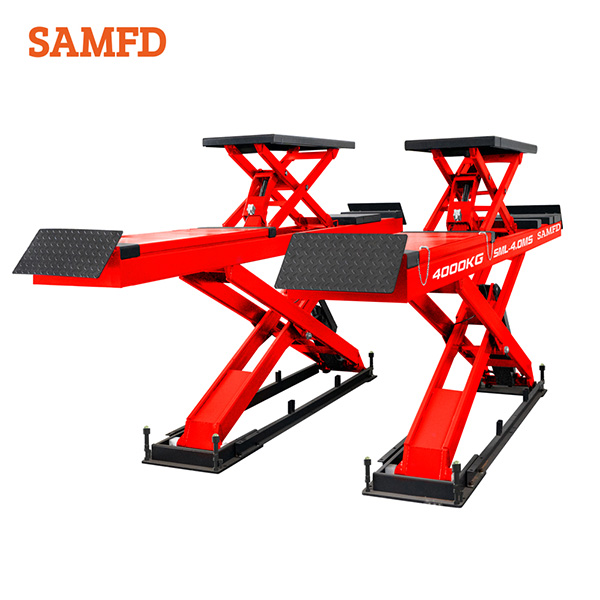

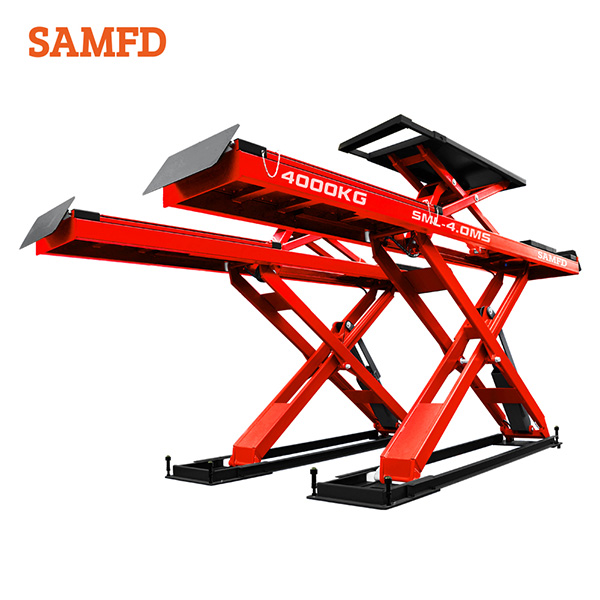

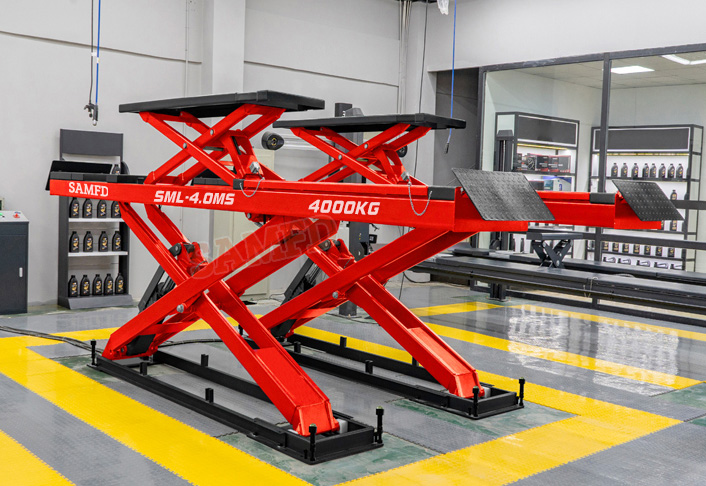

Alignment Scissor Lift (in-ground）(SML-4.0MS）
- Whatsapp/Wechat/Teléfono: +86-18865587388
- Correo electrónico: info@samfdequipment.com

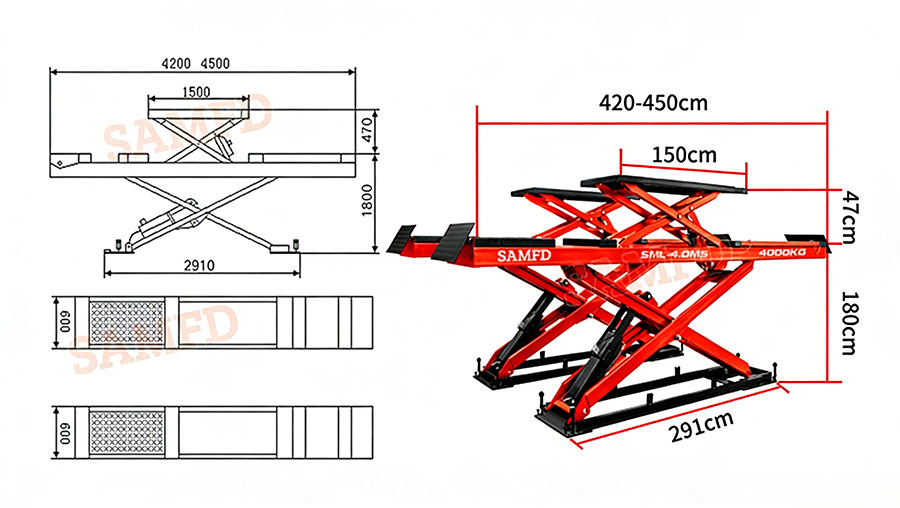

Parámetros del producto
| PROJECT | SML-4.0MS |
| Lifting Capacity | 4000kgs (8800lbs) |
| Shear Bearing Capacity | 3000kgs (6600lbs) |
| Lenght of Platform | 4500mm (177.17") |
| Width of Platform | 600mm (23.62") |
| Lifting Height | 1800mm (70.87") |
| Secondary Jack | 450mm (17.72") |
| Min. Height | 340mm (13.39") |
| Lifting Time | 50-60s |
| Motor Power | 2.2kW |
| Voltage | 110/220/380V |
* Note: Technical parameters updated & adjusted as to market demand without prior notice
Descripción del producto
1. Secondary Lifting. The lift is equipped with secondary lifting trolley, moving flexibly, controlled by an independent control box.
2. In-ground mounted, occupying small space, providing the largest working space for diagnostic services.
3. Mechanical hydraulic double locking.The mechanical lock is closed automatically when it goes up and pneumatically opened when it goes down, safe and reliable.
4. The X frame is laser cut from high-quality solid steel, with high strength, corrosion resistance and deformation resistance.
5. Reinforced oil cylinder. Imported oil seal, strong power, easy lifting, stable and pressure free.
6. Hydraulic system adopts the advanced integrated valve plate oil and imports of seal parts.
7. Electrical control uses 24V safety voltage, safer operation.
8. Passed ISO9001 and CE certification.

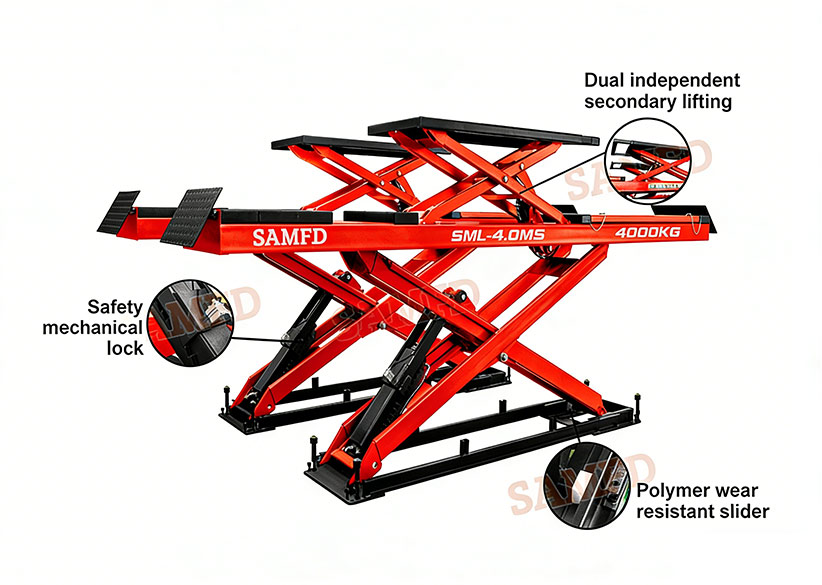

Detalles del producto
STURDY AND DURABLE MATERIAL
The thickness of the shear arm reaches 35mm , which is sturdy and durable, ensuring the stability of the equipment during lifting and the accuracy of positioning detection

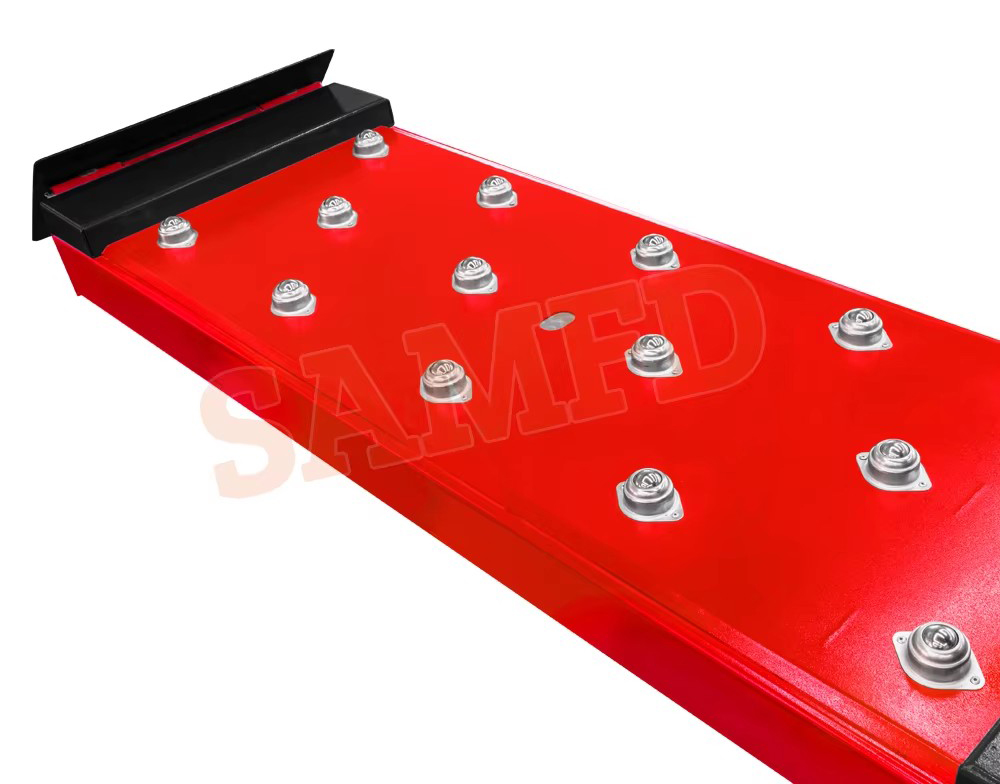

BULL EYE BEARING
The bull eye bearing under the side sliding plate is more flexible and durable than ordinary bearings.

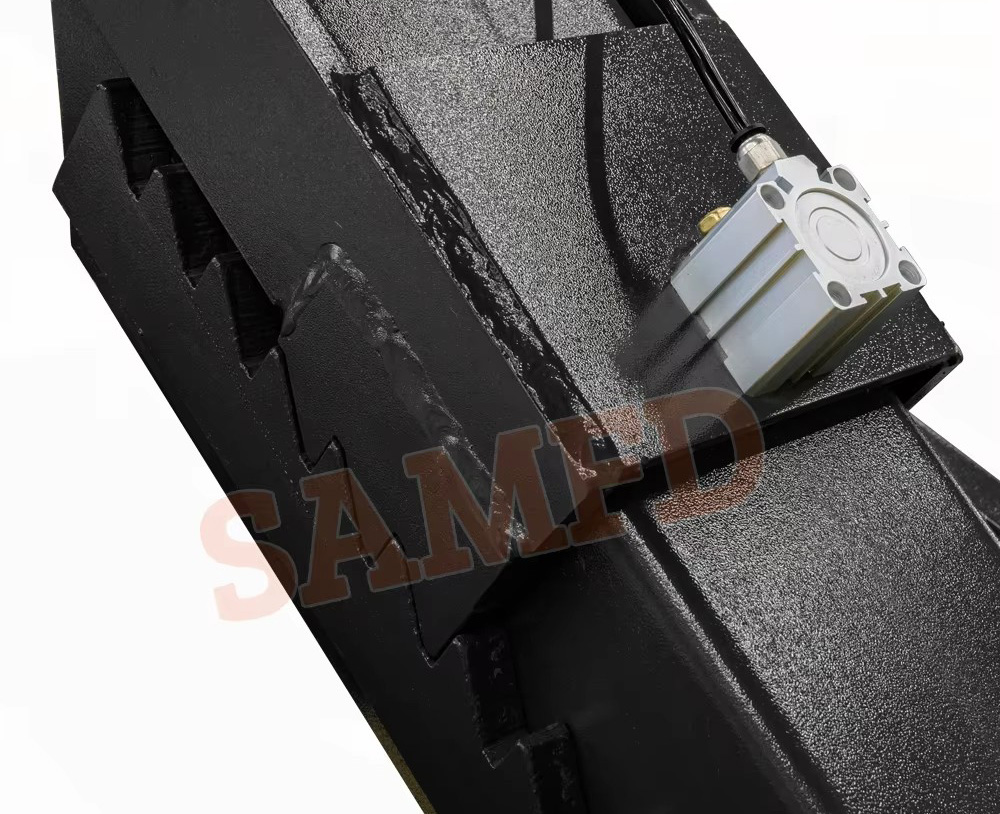

SAFETY MECHANICAL LOCK
Hydraulic lock and mechanical lock teeth double safety lifting, toolproof. The locking teeth adopt an integrated locking structure made by separate cutting and splicing welding.

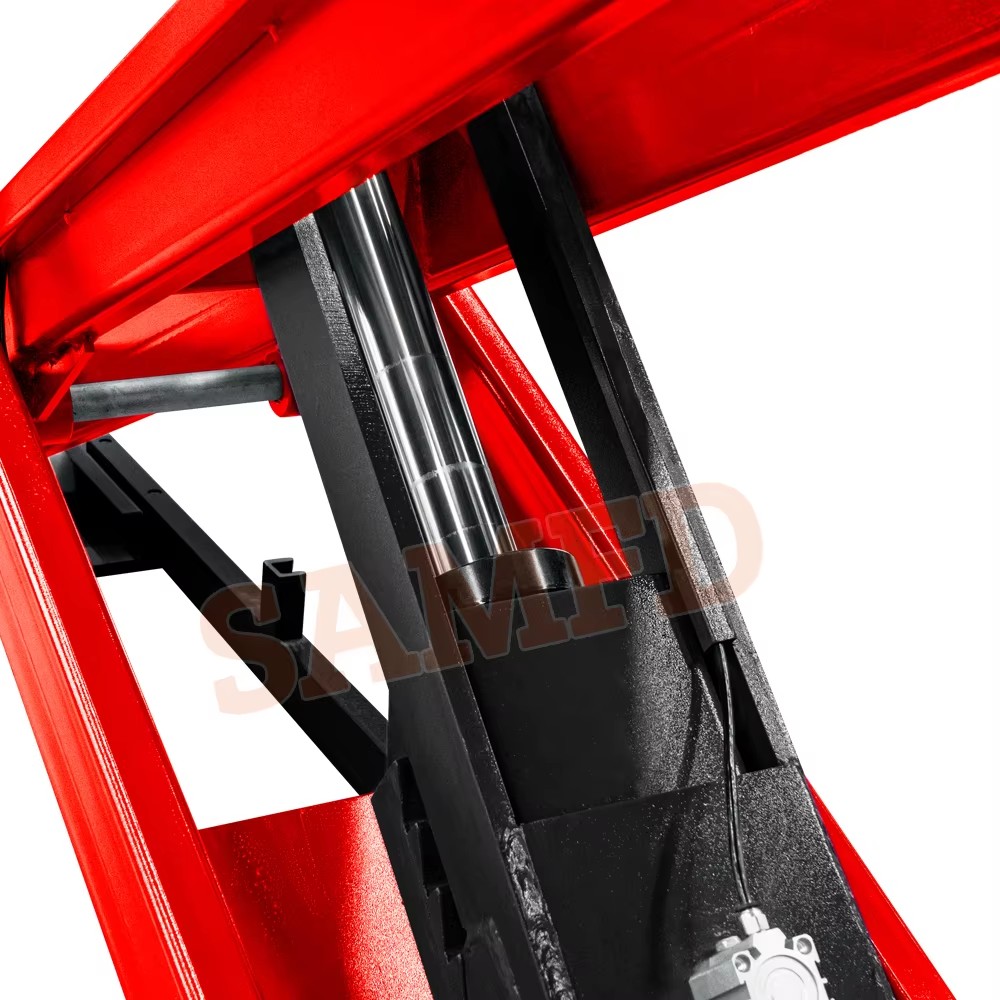

REINFORCED OIL CYLINDER
The brand oil cylinder with important oil seal, easy and stable lifting without pressure.

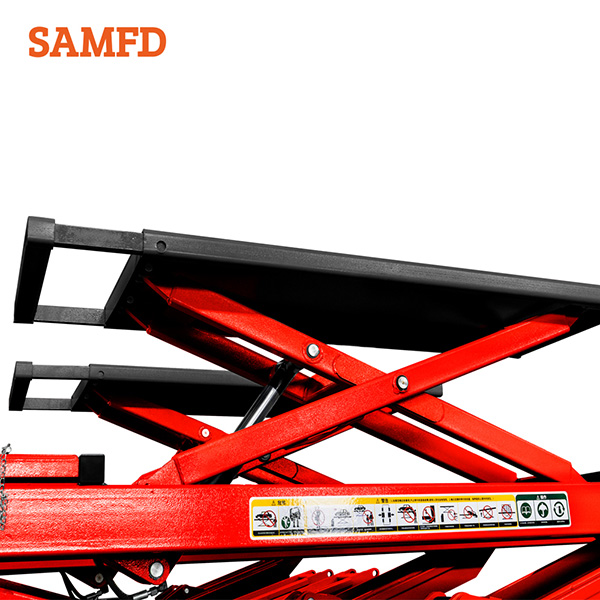

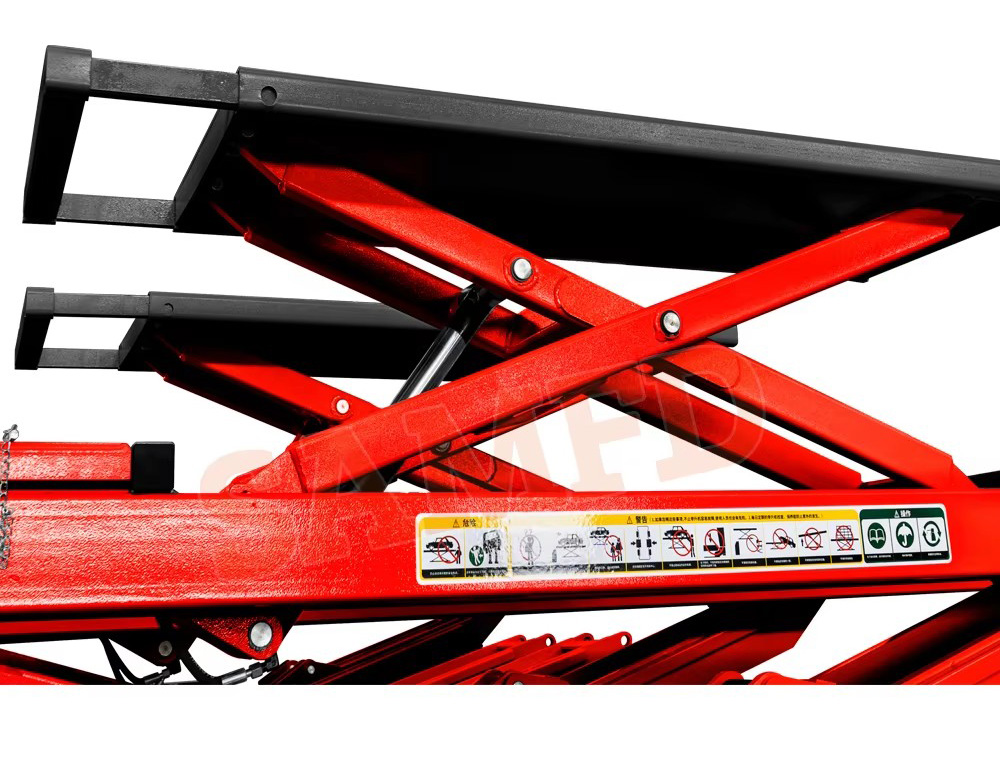

DUAL INDEPENDENT SECONDARY LIFTING
The lifting height is 470MM , with smooth lifting easily and convenient tire changing positioning.

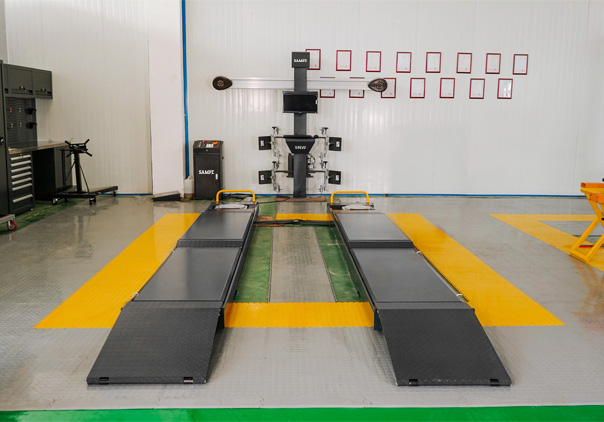

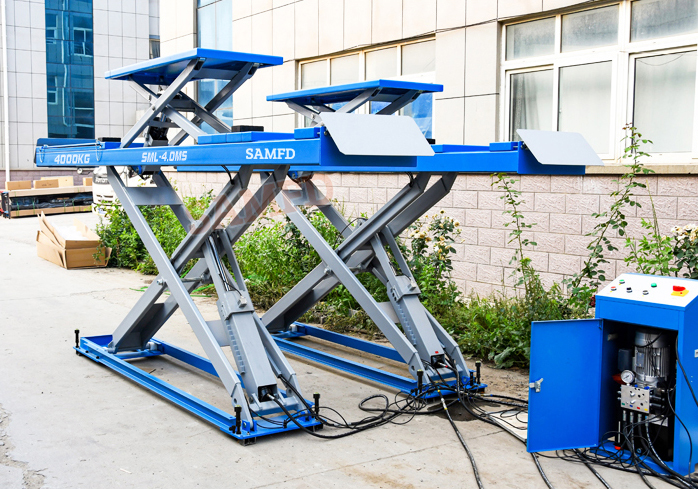

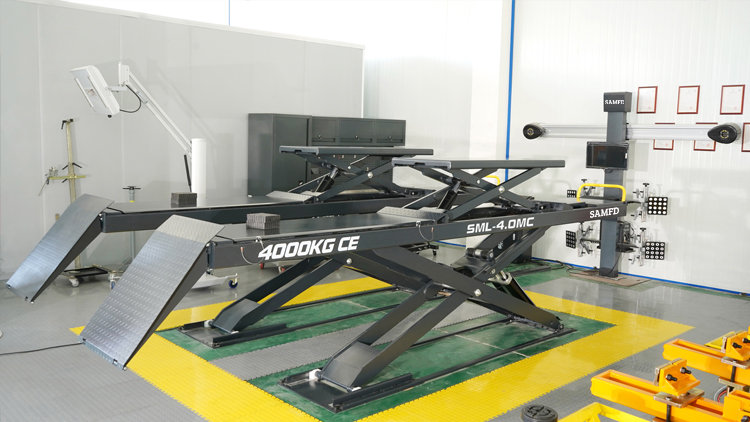

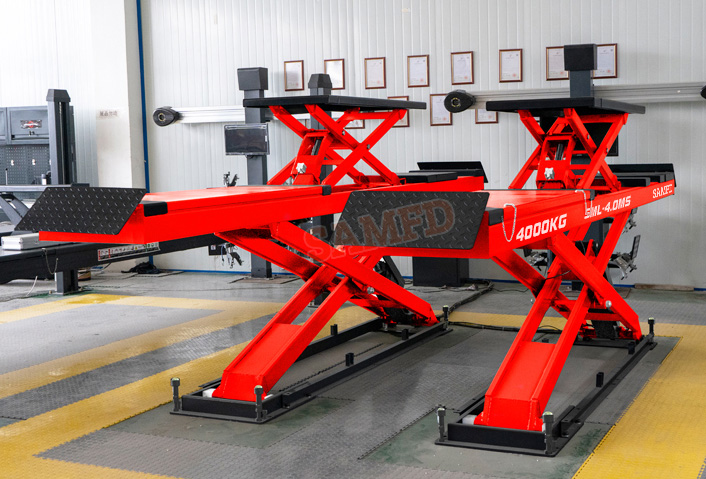

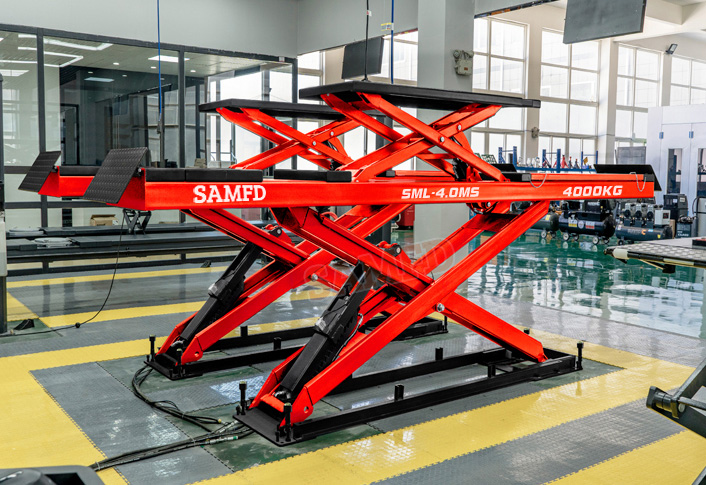

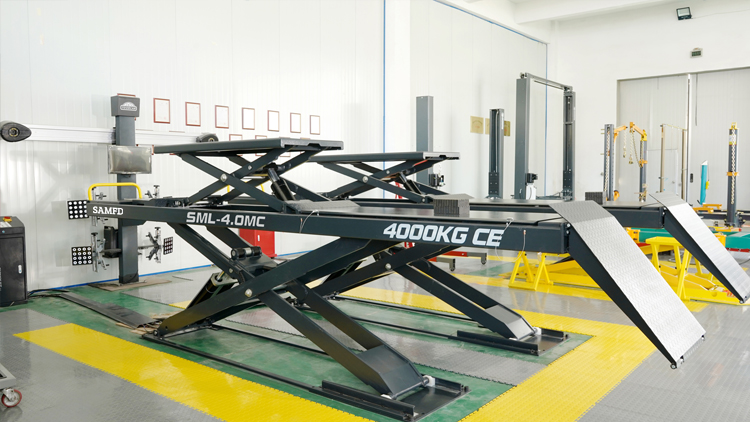

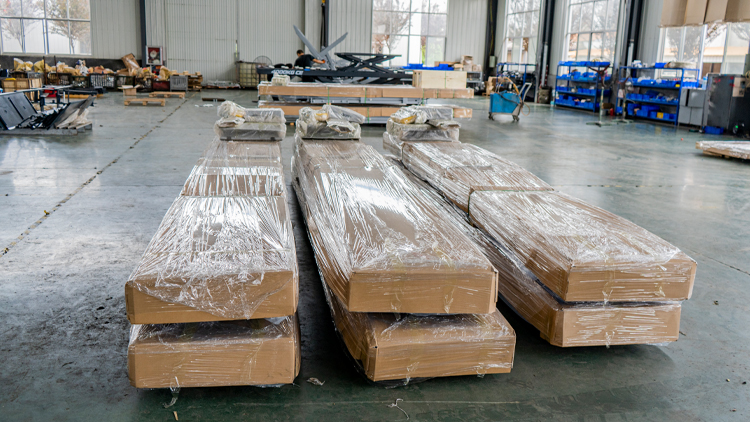

Fotos reales del producto
